Product Description

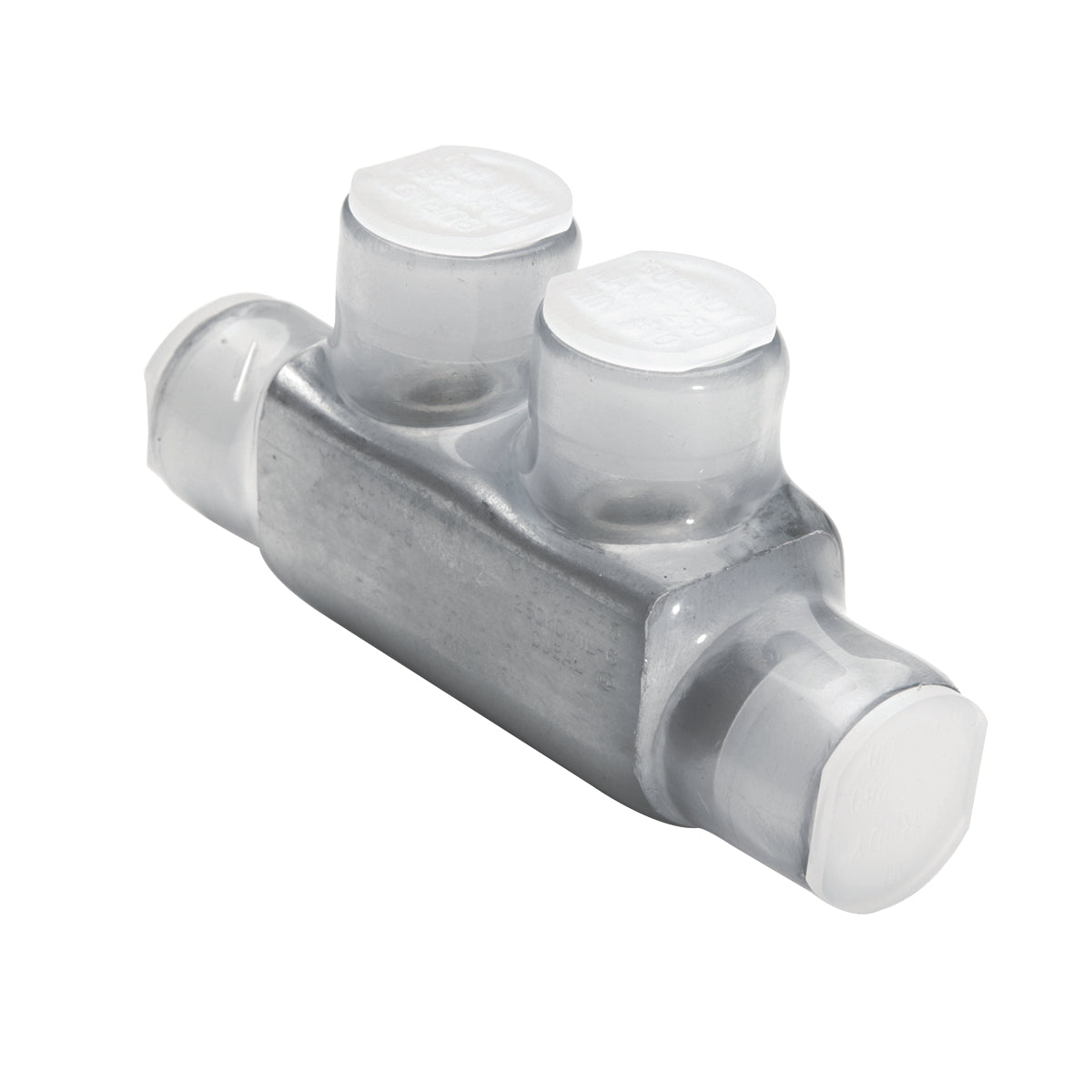

The Hubbell BISR2 is a BURNDY UNITAP In-Line Splice designed for aluminum, copper, and stranded conductors within the range of 14 to 2 AWG. This splice allows for secure and efficient connections in electrical wiring projects. It is suitable for indoor applications and supports voltage ratings up to 600 VAC.
- In-line splice design for quick installation
- Oxide inhibitor included to prevent moisture contamination
- Clear plastisol covering for visual inspection of conductor insertion
Product Highlights
The BISR2 splice reduces the number of connectors required for various projects, streamlining inventory needs and installation processes.
Product Information
Standard Information
-
Application: Indoor Applications
-
Conductor Type: Aluminum/Copper/Stranded
Technical Specifications
-
Manufacturer Part Number: BISR2
-
Material: Aluminum
-
Run Main Size: 14 to 2 AWG
-
Series: BISR
-
Specifications: 5/32 in Hex
-
Voltage Rating: 600 VAC
-
Temperature Rating: 90 deg C
-
Dimensions: 2.38 in L x 0.75 in W x 1.22 in H
