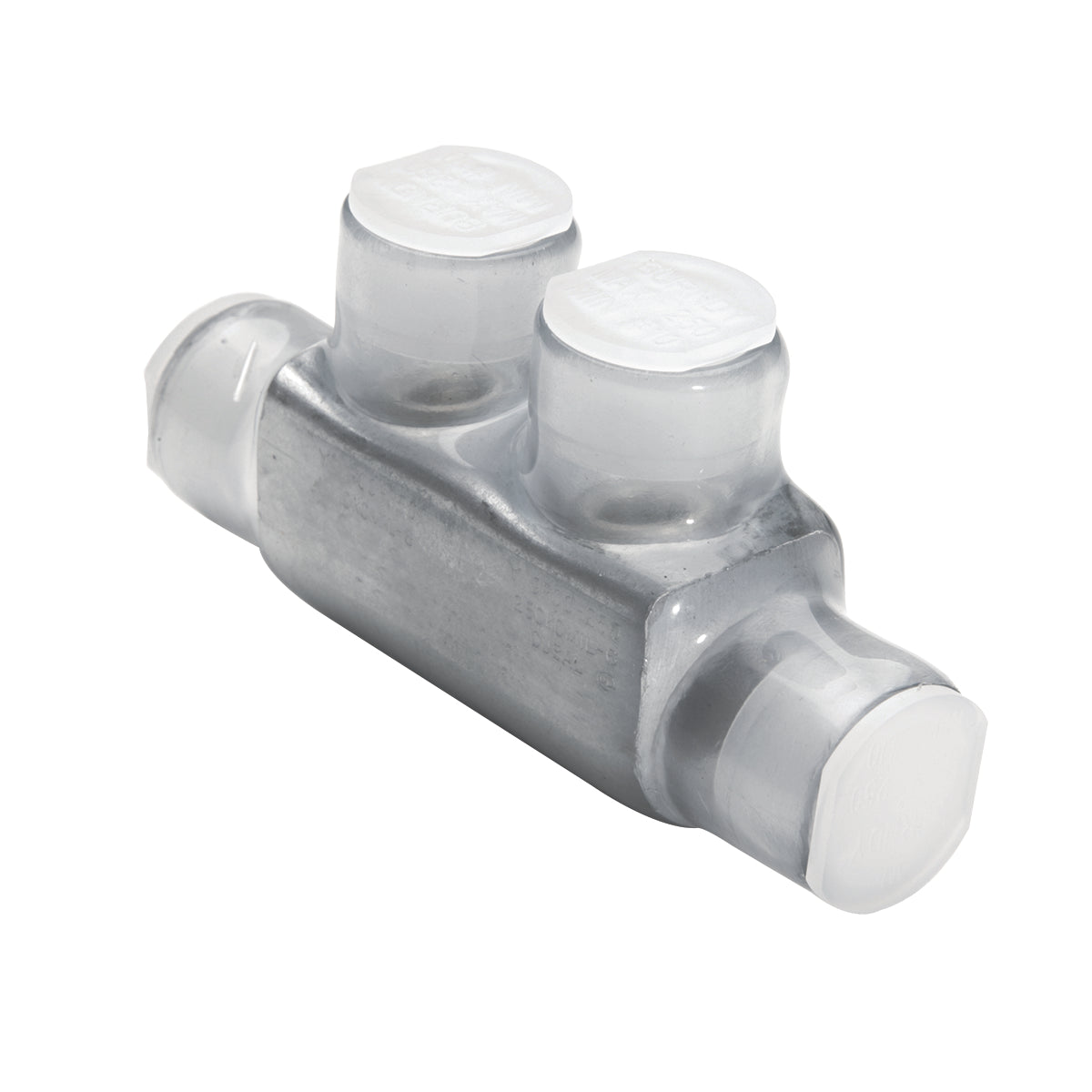

Hubbell BISR1/0 BURNDY 1/0-14 IN-LINE SPLICE

Product Description

The Hubbell BISR1/0 is a BURNDY UNITAP In-Line Splice, designed for connecting copper or stranded aluminum conductors. This splice accommodates conductors ranging from fourteen to one/zero American Wire Gauge (AWG). It features a two-screw design for secure connections and is rated for up to six hundred volts alternating current (VAC).

• Product is suitable for indoor applications
• Includes an oxide inhibitor to protect connections
• Constructed from clear plastisol-coated aluminum

Product Highlights

This product simplifies installation by eliminating the need for taping. Its clear body allows for visual confirmation of proper conductor insertion, enhancing reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013411

Technical Specifications

• Application: For copper or stranded aluminum and indoor applications
• Conductor Size: 14 to 1/0 AWG
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: 2.91 in L x 0.91 in W x 1.38 in H
• Voltage Rating: 600 VAC
• Temperature Rating: 194 deg F
• Material: Aluminum
• Number of Screws: 2
