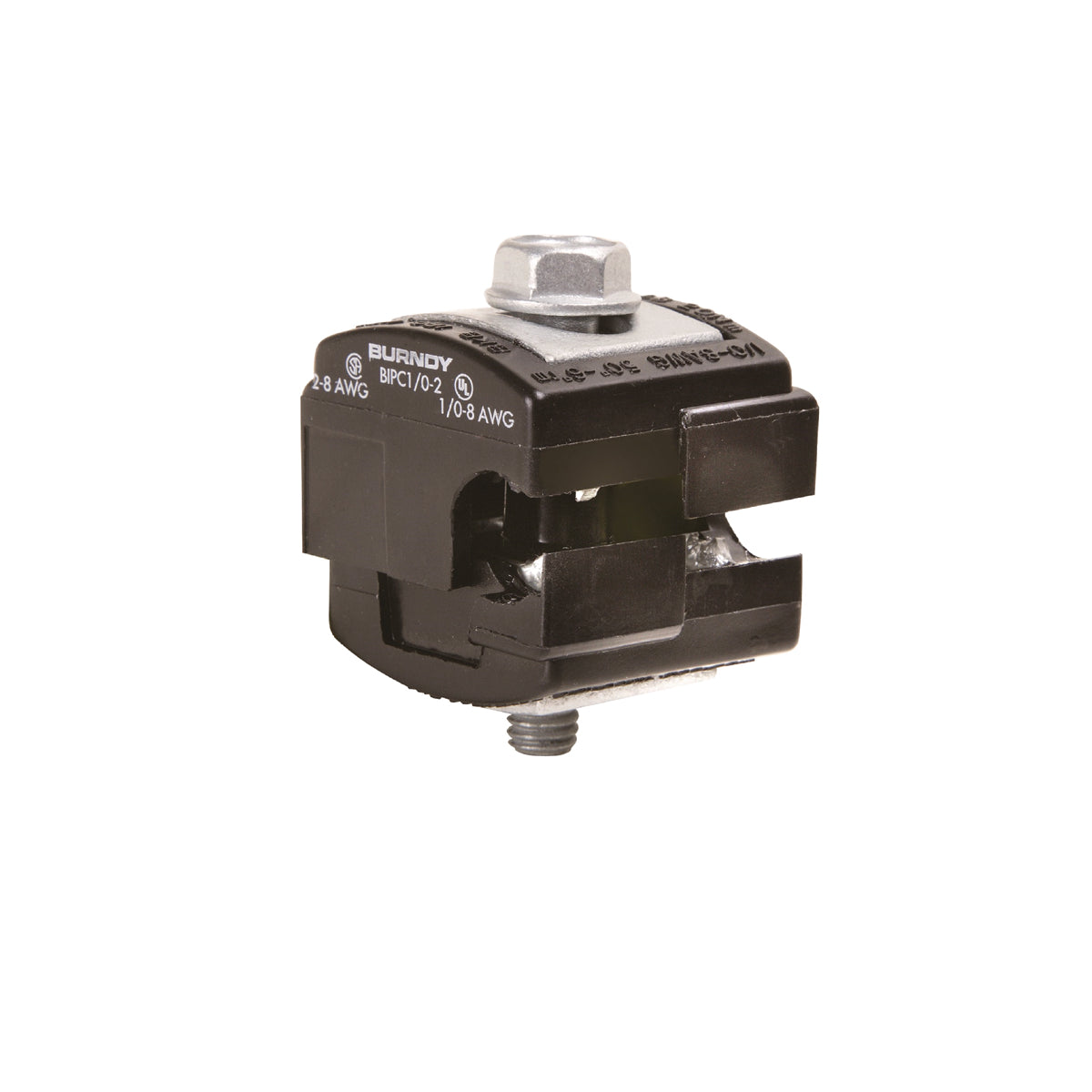

Hubbell BIPC1/02 BUR Insul-Tap 2-8AWG To Run 1/0-8AWG

Product Description

The Hubbell BIPC1/02 BUR Insulation Piercing Connector is designed for use with aluminum and copper conductors ranging from eight to one zero AWG. This connector features a five sixteenth inch bolt and is rated for six hundred volts AC. It provides a secure connection without the need to strip the conductor's insulation, simplifying installation and improving efficiency.

• Efficiency in installation by eliminating insulation stripping
• Capable of handling up to 600 volts AC
• Ideal for splicing and tapping aluminum and copper conductors

Product Highlights

This product ensures reliable and effective connections for electrical projects, saving time and effort during installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Application: For splicing, tapping aluminum and copper conductors

Technical Specifications

• Conductor Size: 8 to 1/0 AWG
• Bolt Size: 5/16 in
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Dimensions: 1.53 in L x 2.56 in W x 2 in H
• Finish: TiN Coated
• Series: BIPC
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486B, CSA Certified, AL9CU Rated, Buy American Act Compliant
