Product Description

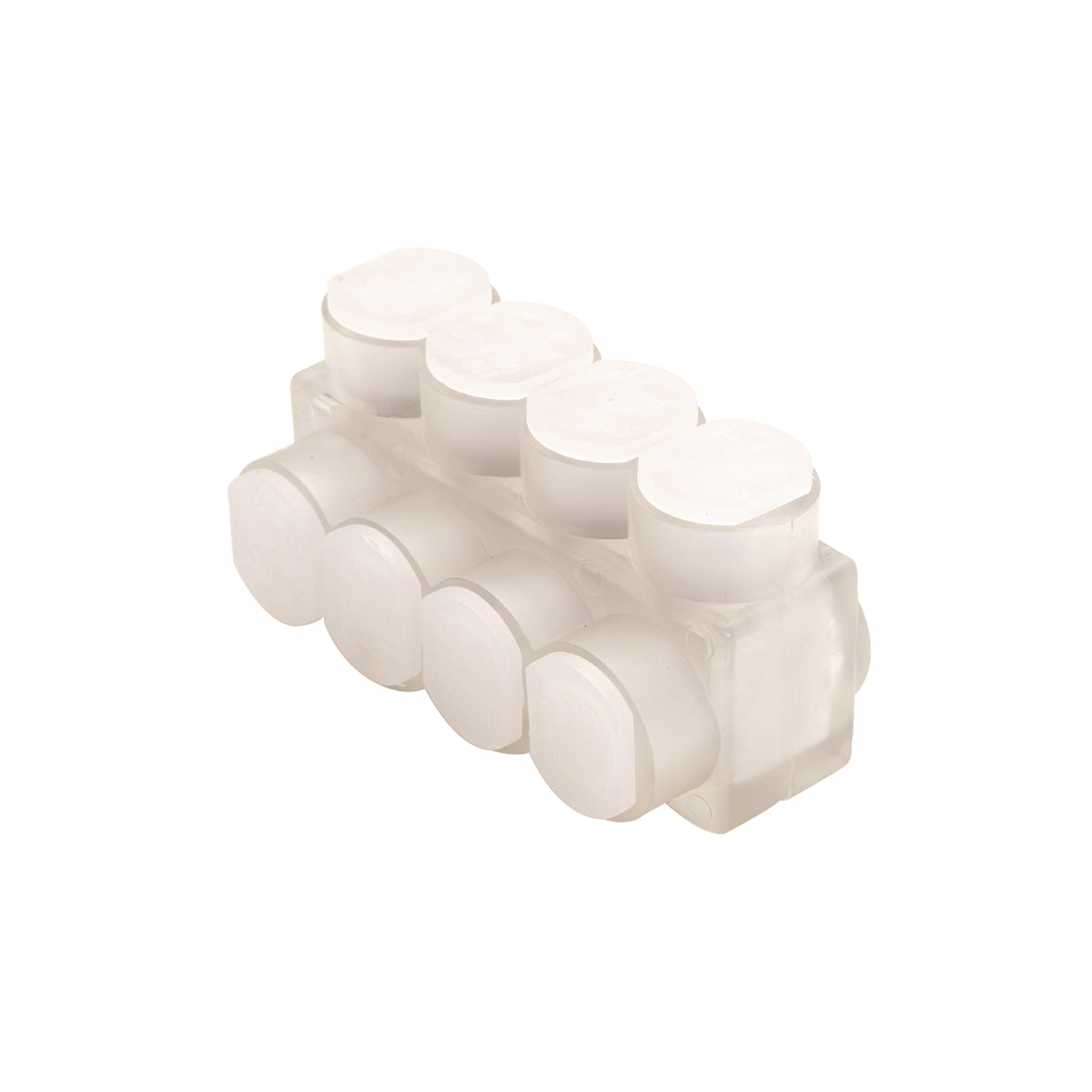

The Hubbell BIBS6004 is a BURNDY UNITAP Multi-Tap Connector designed for reliable connections. This unit features a one-sided entry suitable for conductors ranging from four AWG to six hundred kcmil. The connector supports 600 VAC and accommodates both copper and stranded aluminum conductors.
- Multi-port design for flexibility
- Clear plastisol insulation allows visibility of conductor insertion
- Includes built-in oxide inhibitor for moisture protection
Product Highlights
The BIBS6004 connector simplifies installation while maintaining secure electrical connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Part Number: BIBS6004
Technical Specifications
-
Conductor Size: 4 AWG to 600 kcmil
-
Voltage Rating: 600 VAC
-
Temperature Rating: 194 degrees Fahrenheit
-
Dimensions: 5.28 inches L x 2.38 inches W x 2.75 inches H
-
Torque Specification: 375 inch-pounds
-
Material: Aluminum
-
Application: Indoor use for copper or stranded aluminum
-
Standards/Approvals: UL 486A, UL 486B, ARRA Compliant, RoHS compliant
