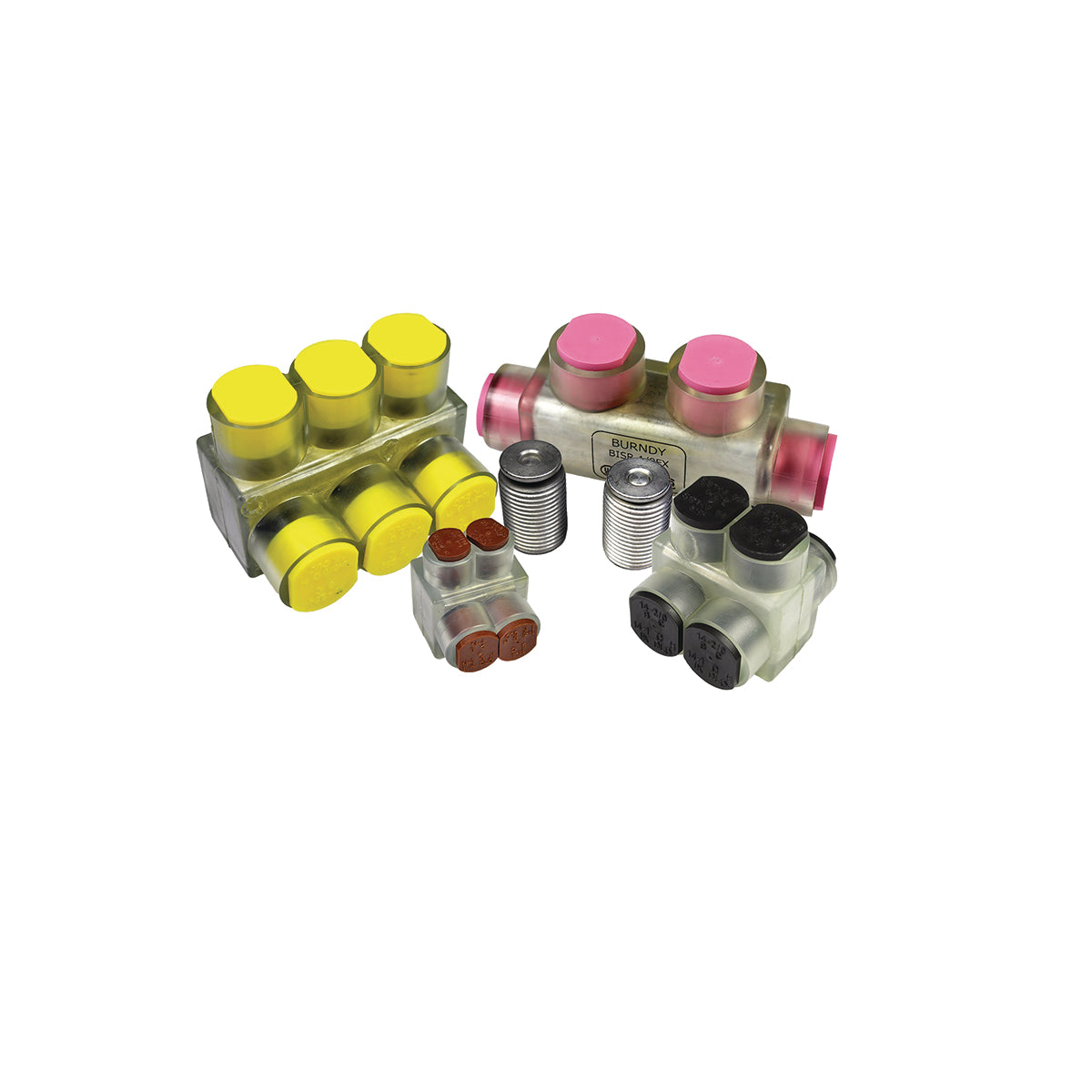

Hubbell BIBS43FX BURNDY 14-4 ONE SIDED UNITAP, 3 PORT

Product Description

The Hubbell BIBS43FX BURNDY UNITAP is an in-line insulated splice reducer. It is designed for aluminum and copper stranded conductors ranging from fourteen to four AWG and fourteen to six AWG. This product supports voltages up to six hundred VAC and is suitable for various tap connections and in-line splices.

• 3-Port design
• Constructed from tin-plated aluminum
• Rated for 135 degrees Celsius

Product Highlights

This splice reducer simplifies the connection process for professionals by reducing the number of connectors needed in inventory. It is ideal for applications requiring quick and reliable in-line splices.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: BIBS43FX

Technical Specifications

• Conductor Size: 14 to 4 AWG, 14 to 6 AWG
• Conductor Type: Aluminum/Copper/Stranded
• Dimensions: 1.268 inches L x 1.13 inches W x 1.25 inches H
• Finish: Tin Plated
• Series: BIBS
• Voltage Rating: 600 VAC
• Temperature Rating: 135 degrees Celsius
• Standards/Approvals: RoHS Compliant, UL 468A/468B, PROP65 compliant
