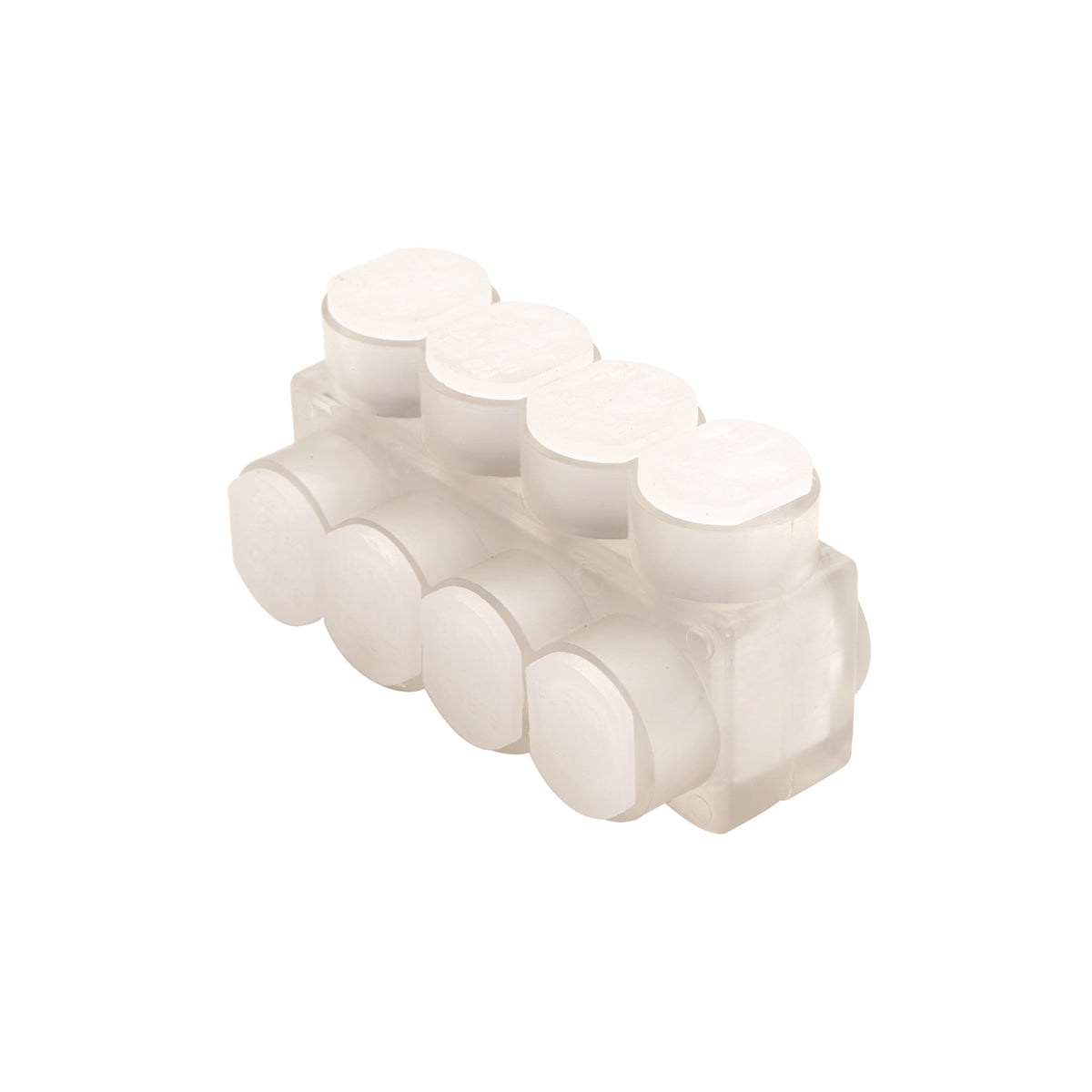

Hubbell BIBS4-4 Multi-Tap Connector 14 to 4 AWG BIBS44

Product Description

The Hubbell BIBS4-4 Multi-Tap Connector is designed for efficient electrical connections. This connector accommodates conductor sizes from fourteen AWG to four AWG and supports both copper and stranded aluminum conductors. It is constructed with clear plastisol insulation which allows users to visually confirm proper insertion of the conductor. This multi-tap connector is rated for six hundred VAC and provides a reliable solution for various indoor applications.

• 1-sided entry for easy installation
• Compatible with a wide range of conductor sizes
• Durable aluminum body with oxide inhibitor to protect against moisture

Product Highlights

This product is ideal for electrical professionals seeking a safe and efficient multi-tap connector for various applications.

Product Information

Standard Information

• Application: For copper or stranded aluminum and indoor applications
• Conductor Size: Fourteen to four AWG

Technical Specifications

• Voltage Rating: Six hundred VAC
• Temperature Rating: One hundred ninety-four degrees Fahrenheit
• Dimensions: Two point zero three inches long x one point two five inches wide x one point two five inches high
• Material: Aluminum
• Series: BIBS
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486A, UL 486B
• Manufacturer Part Number: BIBS44
