Product Description

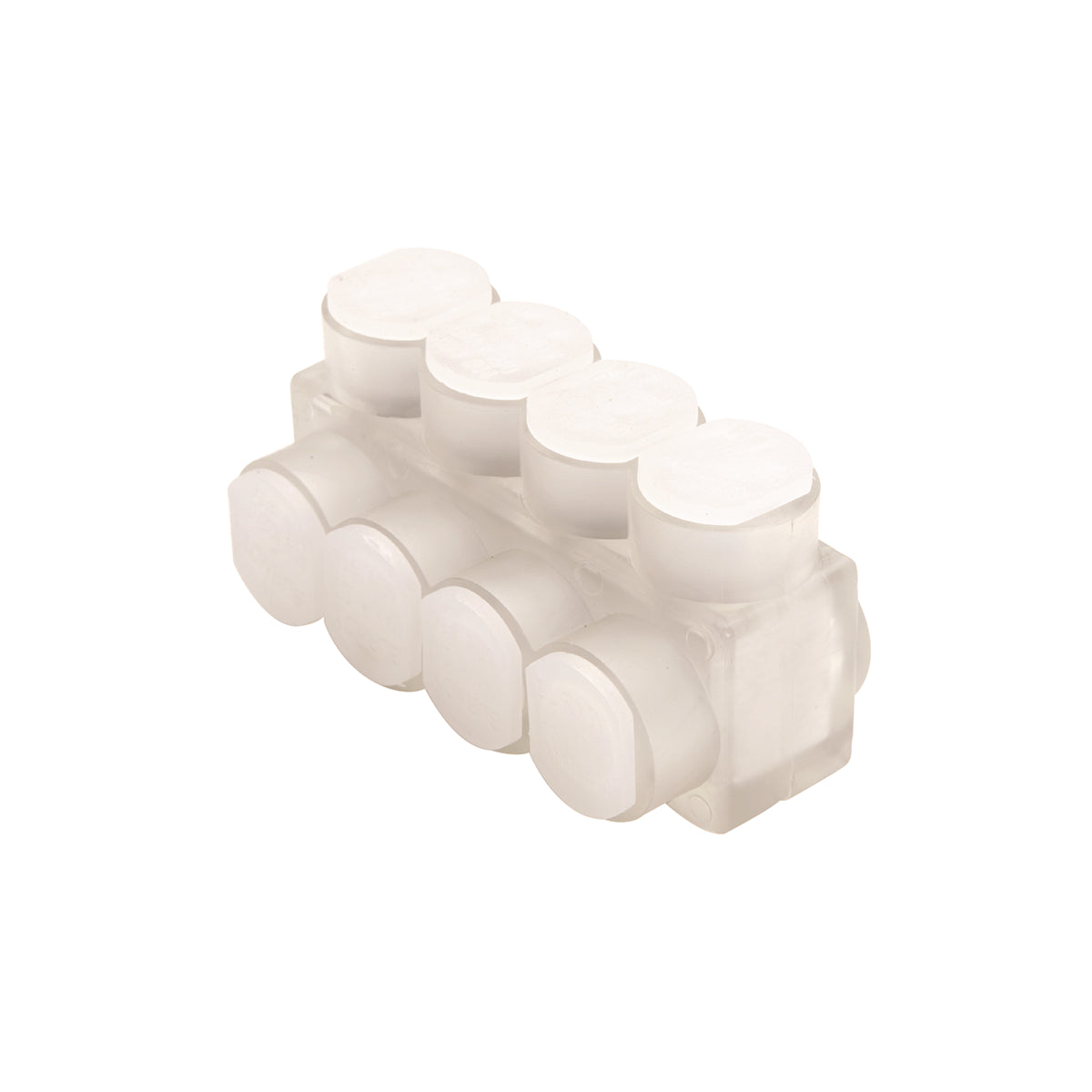

Hubbell BIBS3504 is a BURNDY® UNITAP™ Multi-Tap Connector designed for one-sided entry. It supports conductors from ten AWG to three hundred fifty kcmil. The product is ideal for copper and stranded aluminum conductors and operates at six hundred volts AC. This connector features clear plastisol insulation for easy installation verification.
- Supports conductor sizes from 10 AWG to 350 kcmil.
- Built with AL6061-T6 aluminum for durability.
- Includes oxide inhibitor to protect against moisture and contaminants.
Product Highlights
This multi-tap connector allows for efficient electrical connections in various indoor applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: BIBS3504
Technical Specifications
-
Conductor Size: 10 AWG to 350 kcmil
-
Conductor Type: Copper/Stranded Aluminum
-
Dimensions: 4.04 in L x 2.32 in W x 2.5 in H
-
Voltage Rating: 600 VAC
-
Temperature Rating: 194 deg F
-
Type: 1-Sided Entry
-
Material: Aluminum
-
Application: For copper or stranded aluminum and indoor applications
