Hubbell BIBS350-3 Multiple Wire Term BUR

Product Description

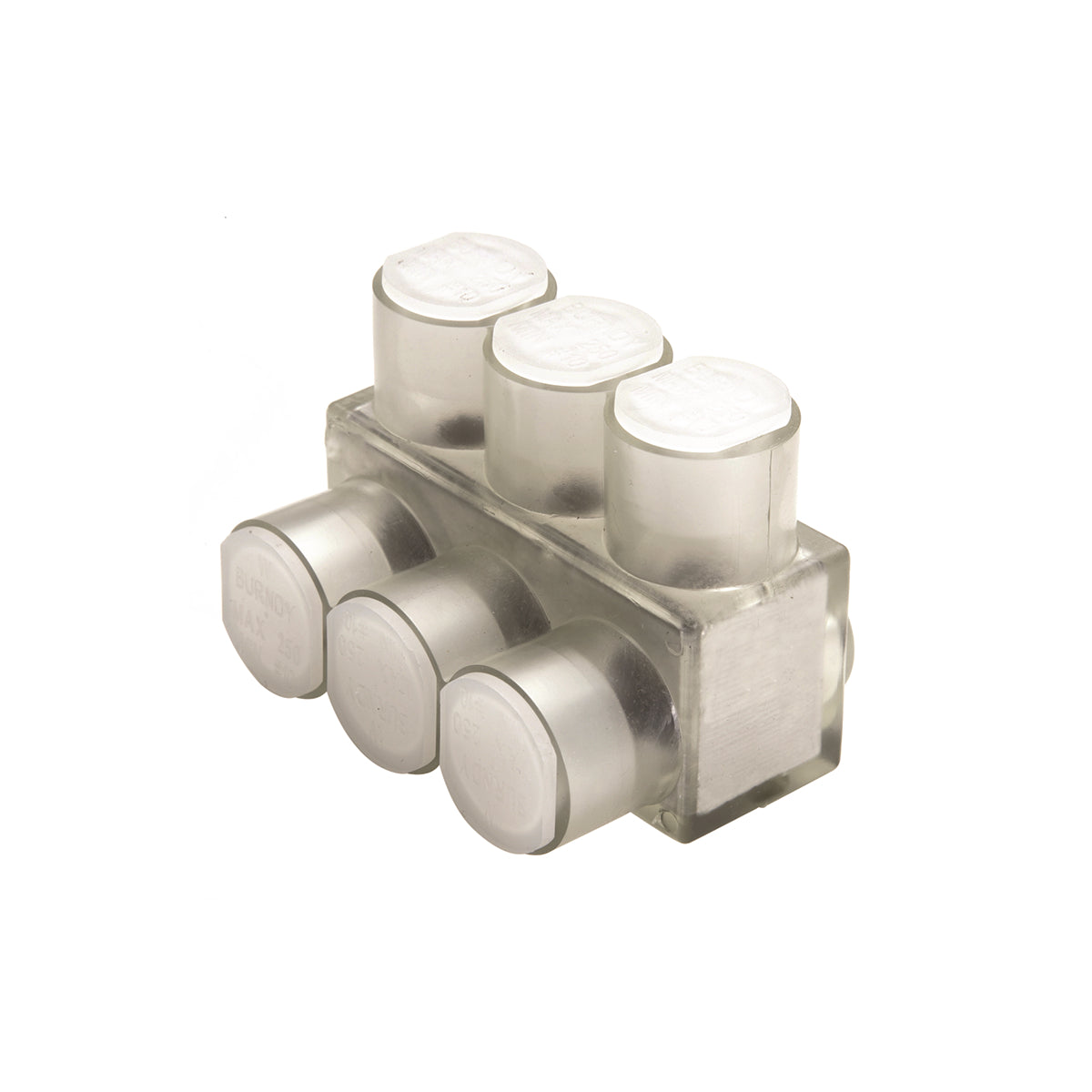

The Hubbell BIBS350-3 Multiple Wire Termination Connector is designed for copper and stranded aluminum conductors ranging from ten AWG to three hundred fifty kcmil. This connector operates at a voltage rating of six hundred VAC. Its 1-sided entry makes installation straightforward and efficient.

• Includes clear plastisol insulation for visibility of conductor insertion.
• Made from durable aluminum, featuring a compact design.
• Accommodates multiple conductor sizes and types.

Product Highlights

This connector is compliant with UL wire connector standards and suitable for indoor applications. It simplifies electrical connections while ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: BIBS350-3

Technical Specifications

• Conductor Size: 10 AWG to 350 kcmil
• Conductor Type: Copper/Stranded Aluminum
• Voltage Rating: 600 VAC
• Temperature Rating: 194 deg F
• Dimensions: 3.13 in L x 2.32 in W x 2.5 in H
• Series: BIBS
• Material: Aluminum
• Standards/Approvals: UL 486A, UL 486B, RoHS Compliant, ARRA Compliant
