Hubbell BIBS2504 BIBS2504 250-10 One Sided Unitap 78181022401

Product Description

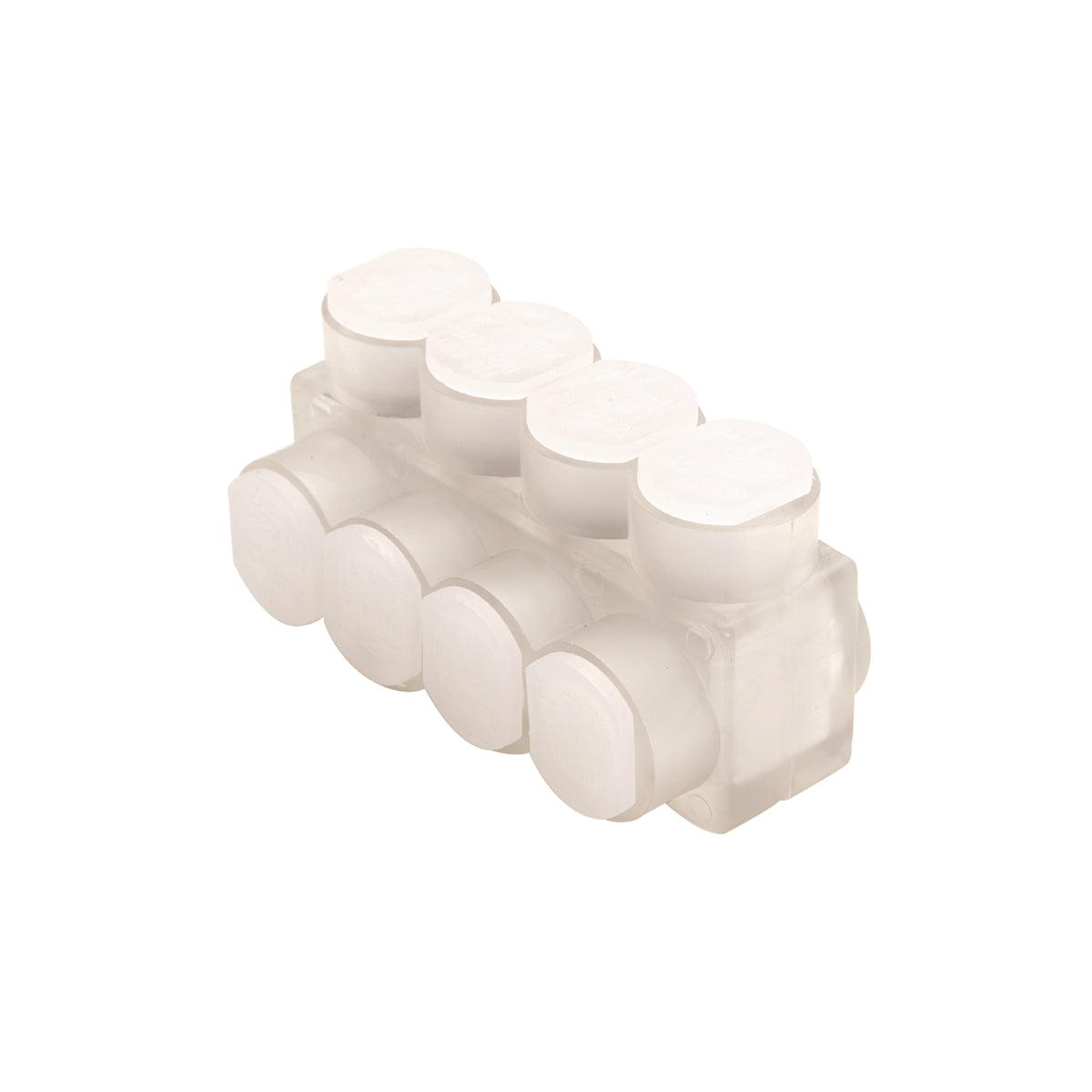

The Hubbell BIBS2504 is a multi-tap connector designed for electrical applications. It is suitable for 10 AWG to 250 kcmil conductors and features a one-sided entry. The connector accommodates copper and stranded aluminum conductors. It operates at a voltage rating of 600 VAC and a temperature rating of 194 degrees Fahrenheit.

• Clear plastisol insulation for visual confirmation of conductor insertion
• Four ports with screws for secure connections
• Oxide inhibitor included to protect against moisture

Product Highlights

The BIBS2504 connector is UL listed to meet safety standards, ensuring reliable performance in various indoor applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181022401

Technical Specifications

• Application: For copper or stranded aluminum and indoor applications
• Conductor Size: 10 AWG to 250 kcmil
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: 3.91 in L x 2.07 in W x 2.13 in H
• Manufacturer Part Number: BIBS2504
• Material: Aluminum
• Series: BIBS
• Specifications: 5/16 in Hex Key, 275 in-lb Torque Multi-Port, 1 in L Wire Strip
• Voltage Rating: 600 VAC
• Temperature Rating: 194 deg F
