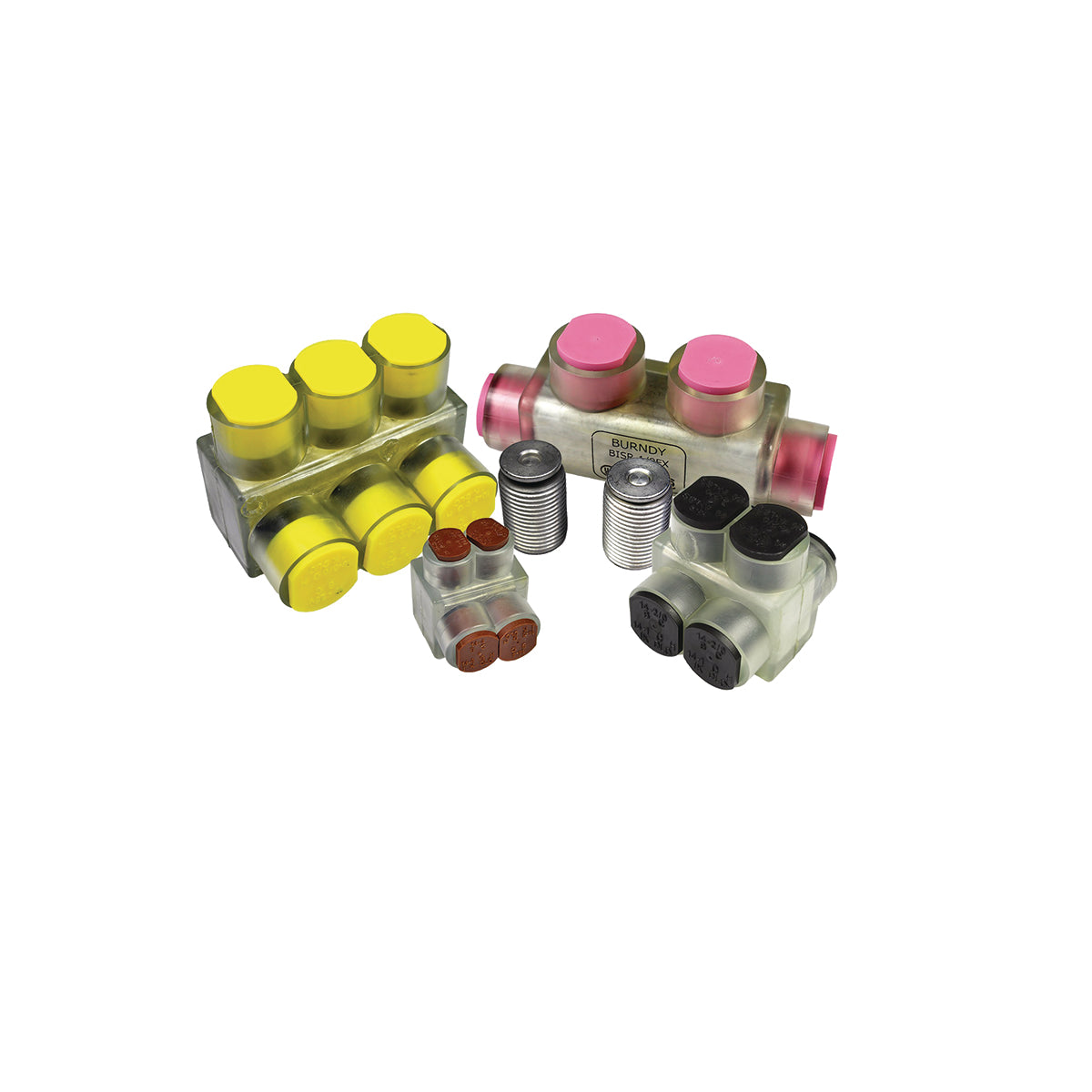

Hubbell BIBS2503FX BURNDY 250-10 ONE SIDED UNITAP

Product Description

The Hubbell BIBS2503FX is an in-line insulated splice reducer designed for aluminum, copper, and stranded conductors. It accommodates conductor sizes from ten AWG to two hundred fifty kcmil, and allows for easy connections in tight spaces. The unit is rated for six hundred volts AC and can operate in temperatures ranging from minus forty to one hundred thirty-five degrees Celsius. Its three-port design enhances versatility for tap connections and in-line splice/reduction tasks.

• Designed for use with aluminum and copper conductors
• Standalone entry for easier installation
• Meets RoHS compliance standards

Product Highlights

The BIBS2503FX reduces the number of connectors needed, saving time and lowering installation costs while effectively sealing moisture and contaminants.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 62194543962

Technical Specifications

• Application: In-line splice/reduction for tap connections
• Conductor Size: 10 AWG to 250 kcmil, 10 to 3/0 AWG
• Conductor Type: Aluminum/Copper/Stranded
• Dimensions: 2.718 inches L x 2.13 inches W x 2.13 inches H
• Finish: Tin Plated
• Material: Aluminum
• Series: BIBS
• Voltage Rating: 600 VAC
• Standards/Approvals: RoHS Compliant, UL 468A/468B, PROP65 notice
• Temperature Rating: -40 to 135 degrees Celsius
