Product Description

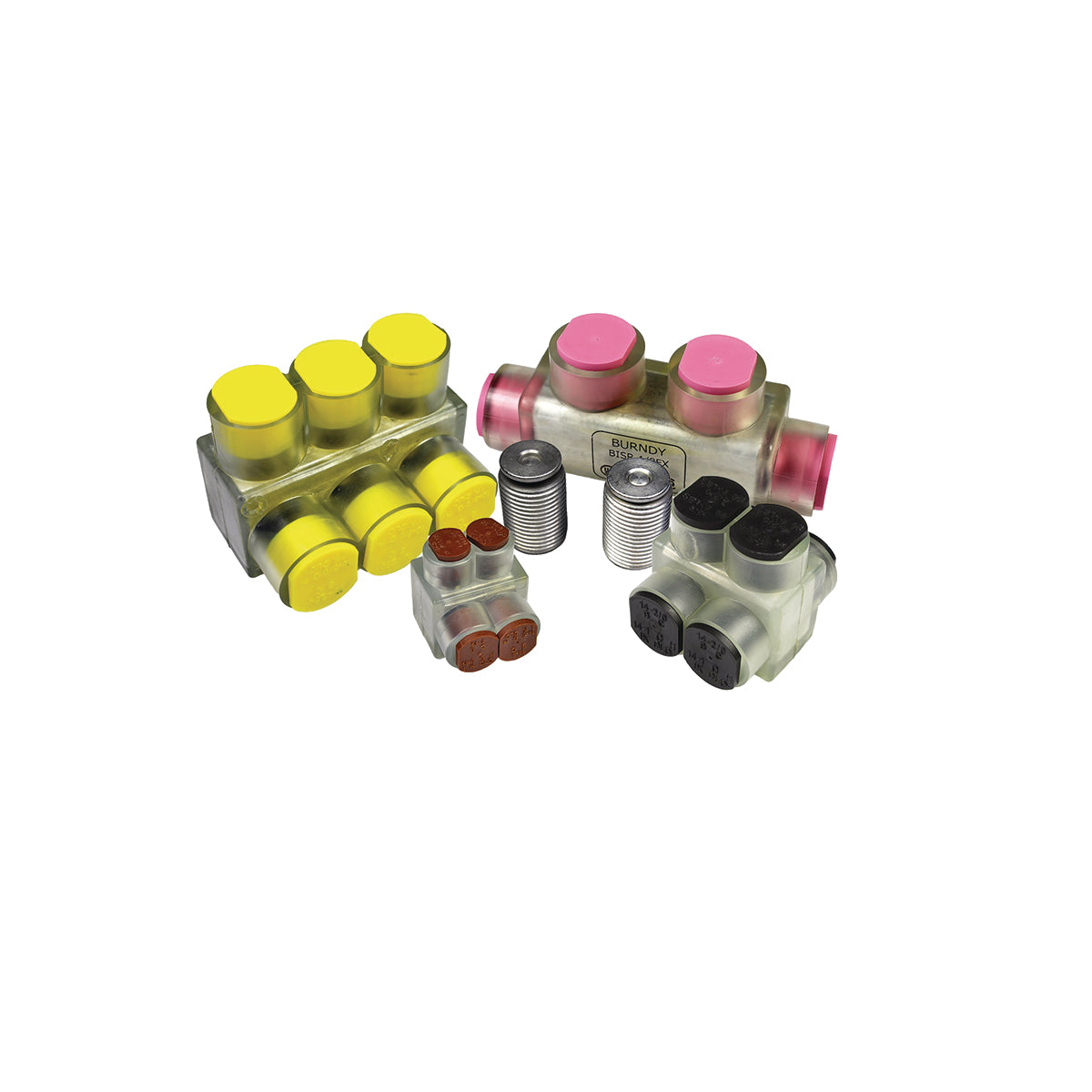

The Hubbell BIBS2/03FX is a BURNDY UNITAP splice reducer designed for quick and effective in-line splicing. This unit connects aluminum or copper wires rated from 14 to 2/0 AWG. The design ensures optimal conductivity and protection from contaminants.
- In-line insulated splice reducer
- Suitable for 14 to 2/0 AWG aluminum and 14 to 1 AWG copper
- Rated for 600 VAC and 175 A
Product Highlights
This splice reducer simplifies connections while inhibiting moisture and contaminants, ensuring a reliable electrical connection.
Product Information
Standard Information
-
Application: For tap connections and in-line splice/reductions
-
Manufacturer: Hubbell
Technical Specifications
-
Conductor Size: 14 to 2/0 AWG, 14 to 1 AWG
-
Conductor Type: Aluminum/Copper/Stranded
-
Voltage Rating: 600 VAC
-
Temperature Rating: -40 to 135 deg C
-
Specifications: 175 A, 3-Port
-
Dimensions: 1.938 in L x 1.31 in W
-
Material: Aluminum
-
Finish: Tin Plated
-
Standards/Approvals: RoHS Compliant, UL 468A/468B, PROP65 Warning
