Product Description

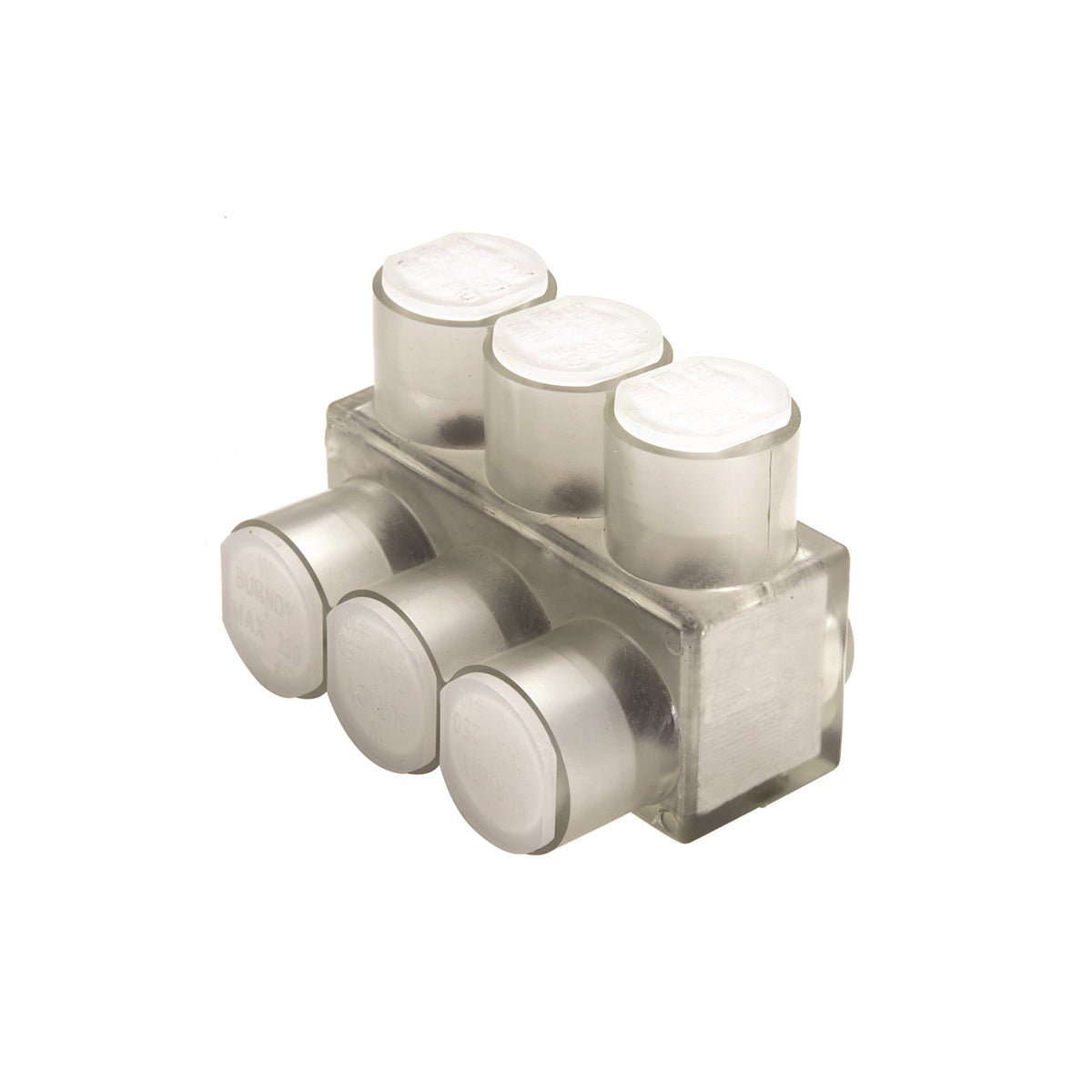

BURNDY® UNITAP™ BIBS2/0-3 is a 1-Sided Entry Multi-Tap Connector designed for use with conductors ranging from fourteen to two aught AWG. This connector is suitable for indoor applications and can accommodate both copper and stranded aluminum conductors. It operates at a maximum voltage rating of six hundred volts AC and is built to withstand a temperature rating of one hundred ninety-four degrees Fahrenheit.
- Clear plastisol insulation for visible confirmation of conductor insertion
- Oxide inhibitor included to protect against moisture
- Compatible with a broad range of conductor sizes
Product Highlights
This connector is designed with mounting holes and allows for easy installation. Its durable aluminum construction ensures a reliable electrical connection.
Product Information
Standard Information
-
Application: For copper or stranded aluminum and indoor applications
-
Type: 1-Sided Entry
Technical Specifications
-
Conductor Size: 14 to 2/0 AWG
-
Conductor Type: Copper/Stranded Aluminum
-
Dimensions: 2.19 in L x 1.31 in W x 1.38 in H
-
Manufacturer Part Number: BIBS2/03
-
Material: Aluminum
-
Specifications: 3/16 in Hex Key, 120 in-lb Torque Multi-Port
-
Voltage Rating: 600 VAC
-
Temperature Rating: 194 deg F
