Product Description

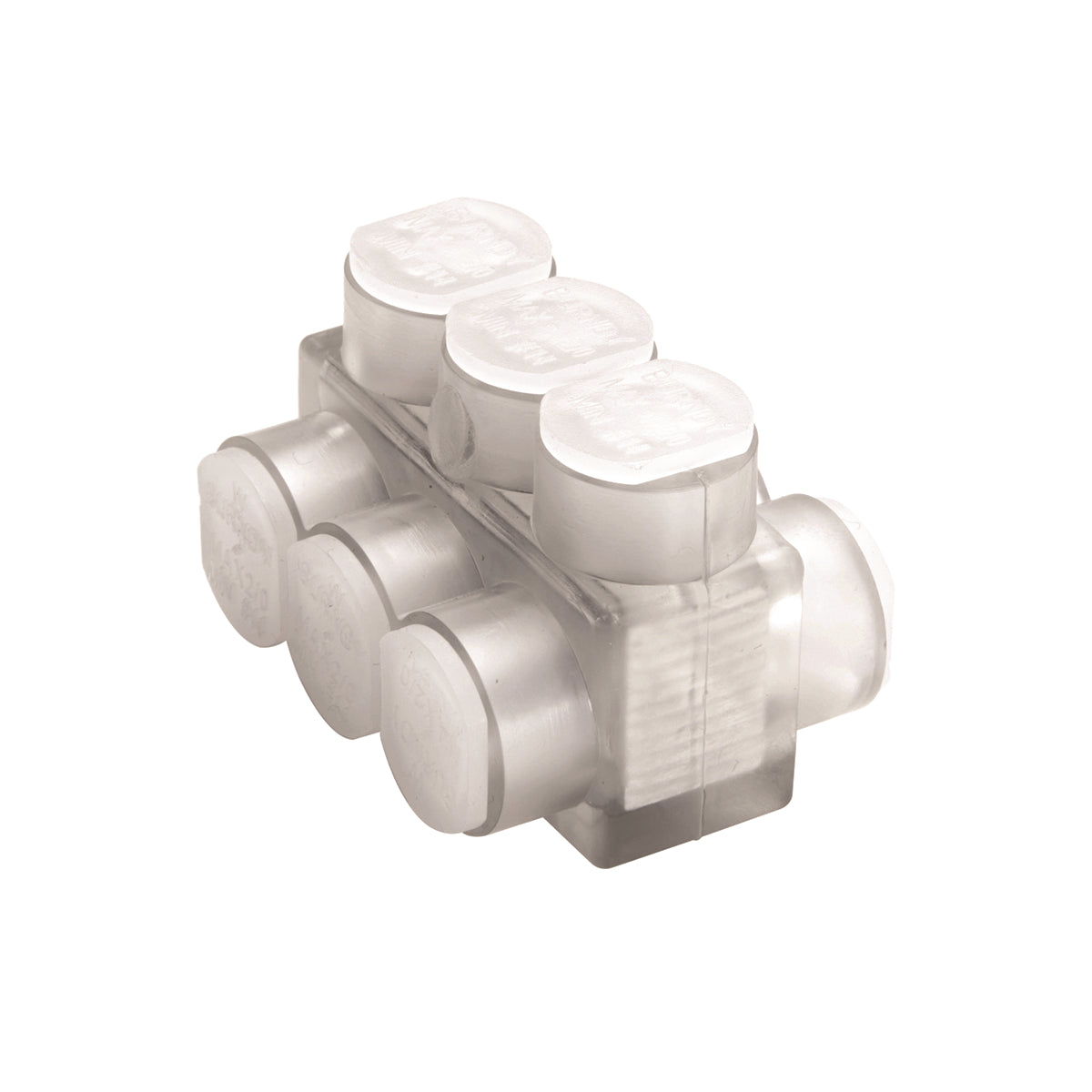

The Hubbell BIBD6003 is a multi-tap connector designed for 4 AWG to 600 kcmil conductors. This two-sided entry unit tap allows for easy connections with copper and stranded aluminum conductors. It is rated for 600 VAC and offers reliable performance in various electrical applications.
- Clear plastisol insulation provides visual confirmation of proper conductor insertion.
- Suitable for indoor applications with aluminum construction.
- Multi-port design with 375 inch-lb torque specification.
Product Highlights
Constructed from aluminum, this connector features a clear insulated design to enhance safety and visibility during installation. The BIBD6003 model is UL listed and CSA certified, making it suitable for various wiring applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: BIBD6003
Technical Specifications
-
Application: For copper or stranded aluminum and indoor applications
-
Conductor Size: 4 AWG to 600 kcmil
-
Conductor Type: Copper/Stranded Aluminum
-
Dimensions: 3.77 inches L x 3 inches W x 2.75 inches H
-
Material: Aluminum
-
Series: BIBD
-
Specifications: 3/8 inch Hex Key, 375 inch-lb Torque, Multi-Port
-
Standards/Approvals: ARRA Compliant | RoHS Compliant | UL 486A | UL 486B | Buy American Act Compliant
-
Temperature Rating: 194 degrees F
-
Type: 2-Sided Entry
-
Voltage Rating: 600 VAC
