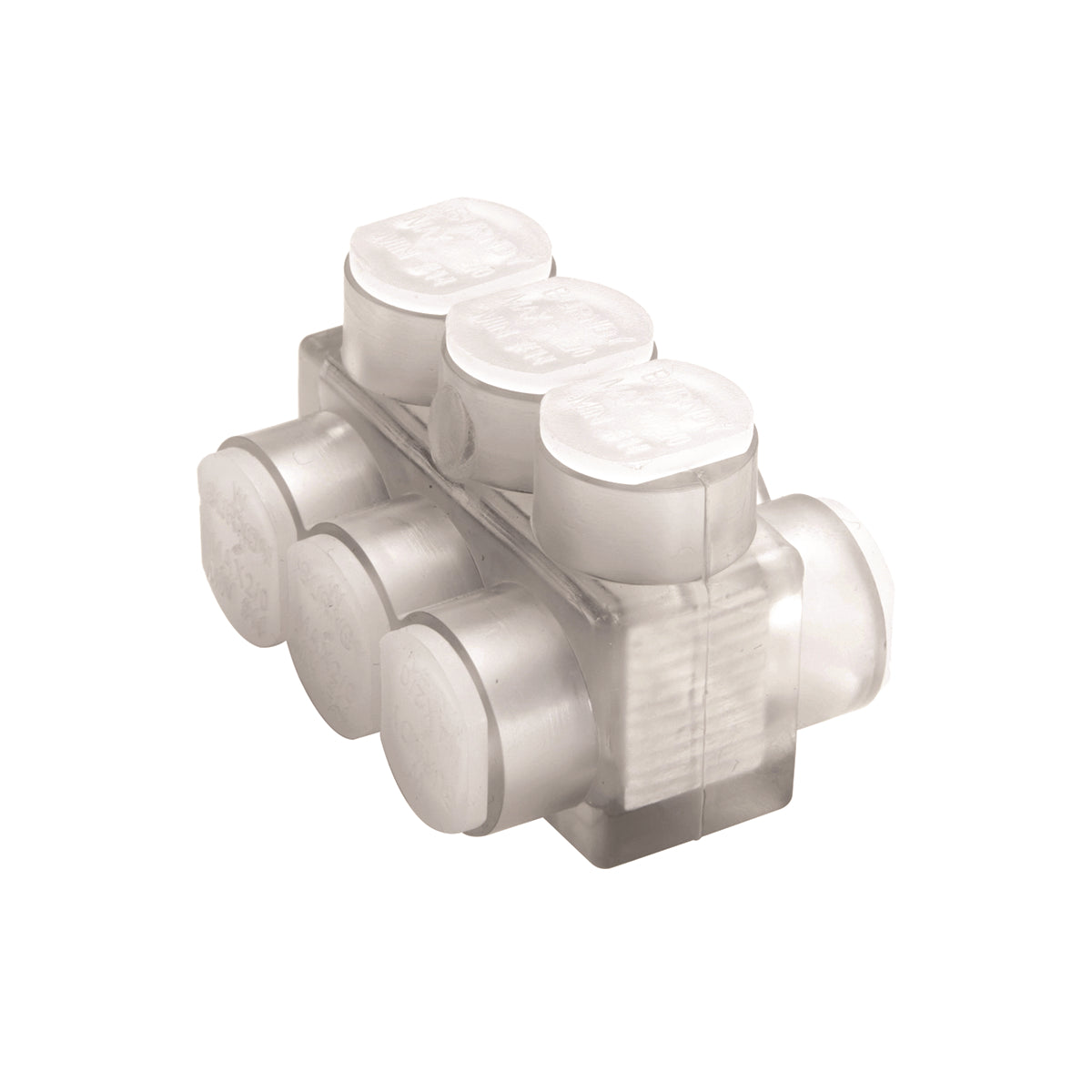

Hubbell BIBD2504 BIBD-250-4 BUR 4PORT 10-250AWG DBL ENTRY UNITAP

Product Description

The Hubbell BIBD2504 is a multi-tap connector designed for use with conductors ranging from ten AWG to two hundred fifty kcmil. This two-sided entry connector is UL listed and CSA certified for flexibility in installations. It supports copper and stranded aluminum conductors, allowing for a versatile application in indoor electrical settings.

• 2-sided entry configuration
• For conductors from 10 AWG to 250 kcmil
• Rated for 600 VAC with a temperature rating of 194 degrees F

Product Highlights

This product features clear plastisol insulation for visual confirmation of conductor insertion. Its design reduces installation time and eliminates the need for extra taping.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013341

Technical Specifications

• Application: For copper or stranded aluminum indoor applications
• Conductor Size: 10 AWG to 250 kcmil
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: 3.91 in L x 2.64 in W x 2.14 in H
• Manufacturer Part Number: BIBD2504
• Material: Aluminum
• Series: BIBD
• Specifications: 5/16 in Hex Key, 275 in-lb Torque Multi-Port
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486A, UL 486B, Buy American Act Compliant
• Temperature Rating: 194 degrees F
• Type: 2-Sided Entry
• Voltage Rating: 600 VAC
