Hubbell BIBD2503FX BURNDY 250-10 2-SIDED 3-PORT FLEX

Product Description

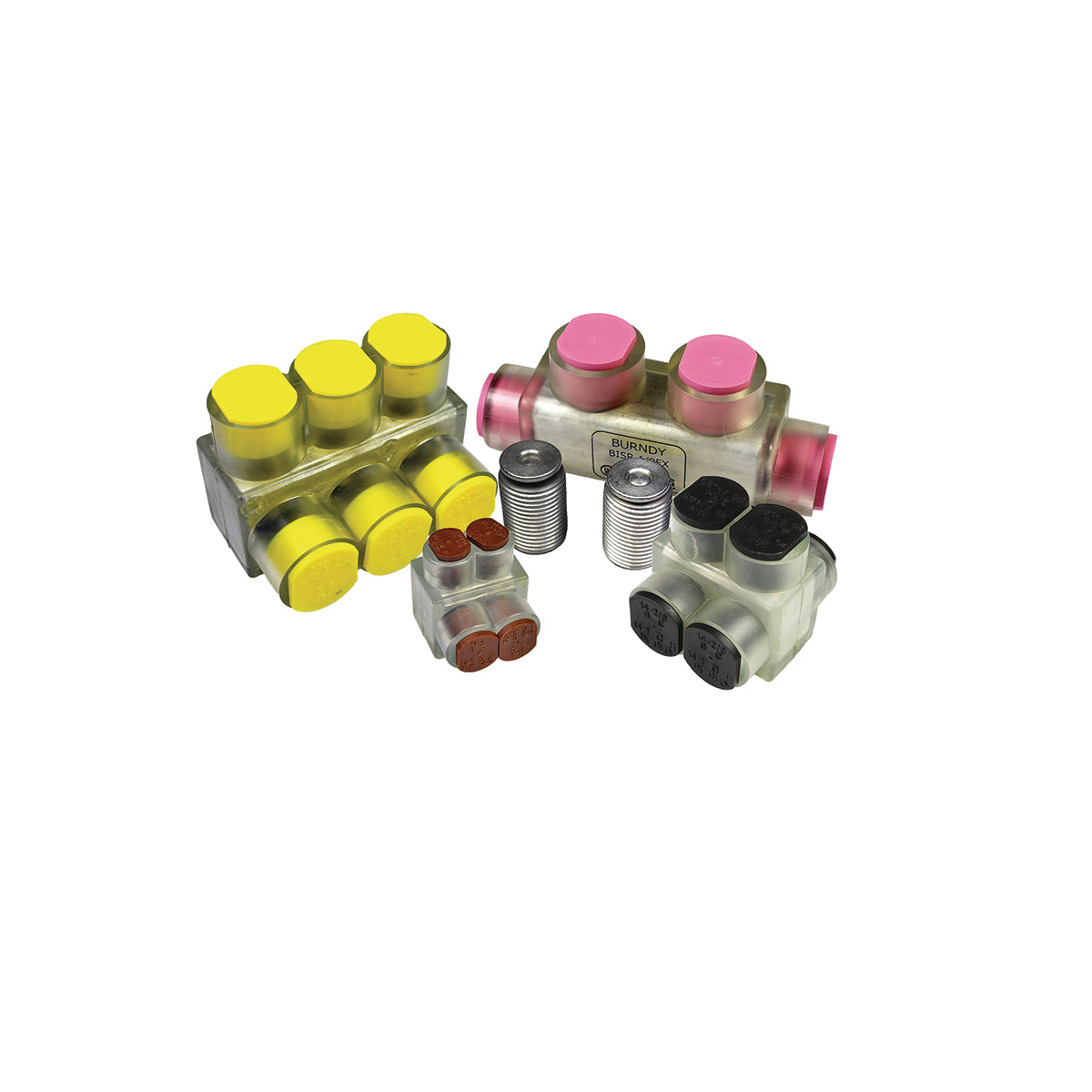

The Hubbell BIBD2503FX is a BURNDY UNITAP Multi-Tap Connector designed for insulated applications. This connector supports a range of conductor sizes from 10 AWG to 250 kcmil and is suitable for both aluminum and copper stranded conductors. It features a three-port design and handles a voltage rating of up to 600 VAC, making it ideal for various wiring tasks.

• 3-port design for multiple connections
• Compatible with aluminum and copper conductors
• Rated for 600 VAC

Product Highlights

The BIBD2503FX simplifies tap connections and in-line splicing. Its robust construction includes a tin-plated aluminum body that enhances durability and performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: BIBD2503FX

Technical Specifications

• Application: For tap connections and in-line splices
• Conductor Size: 10 AWG to 250 kcmil, 10 to 3/0 AWG
• Conductor Type: Aluminum/Copper/Stranded
• Dimensions: 2.718 in L x 2.63 in W
• Finish: Tin Plated
• Material: Aluminum
• Series: BIBD
• Specifications: 3-Port
• Standards/Approvals: RoHS Compliant, UL 468A/468B
• Temperature Rating: 194 deg F
• Voltage Rating: 600 VAC
