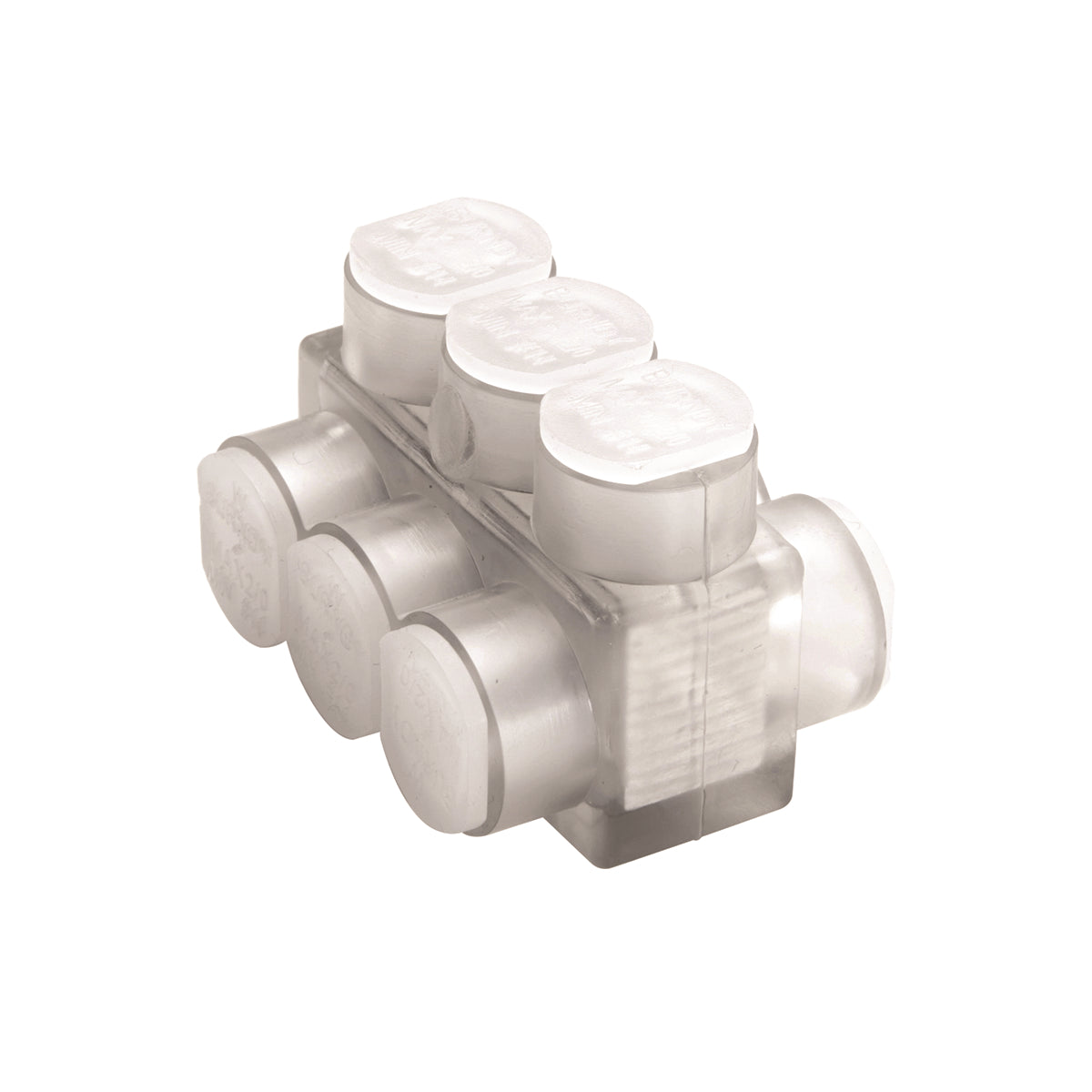

Hubbell BIBD2503 BIBD-250-3 BUR 3PORT 10-250AWG DBL ENTRY UNITAP

Product Description

The Hubbell BIBD2503 BIBD-250-3 BUR 3PORT 10-250AWG DBL ENTRY UNITAP is a multi-tap connector designed for use with copper and stranded aluminum conductors. This unit features two-sided entry for enhanced accessibility and is suitable for a range of conductor sizes from ten AWG to two hundred fifty kcmil. It operates effectively at up to six hundred VAC and can withstand temperatures reaching one hundred ninety-four degrees Fahrenheit.

• Compatible with up to three ports for easy connection.
• Constructed from aluminum with a clear plastisol insulation for conductor verification.
• Features a 5/16 inch hex key and requires a torque of two hundred seventy-five inch-pounds for installation.

Product Highlights

This product simplifies wire connections and reduces installation time while ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: BIBD2503

Technical Specifications

• Application: For copper or stranded aluminum, indoor applications
• Conductor Size: Ten AWG to two hundred fifty kcmil
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: Two point ninety-seven inches L x two point sixty-four inches W x two point fourteen inches H
• Material: Aluminum
• Voltage Rating: Six hundred VAC
• Temperature Rating: One hundred ninety-four degrees Fahrenheit
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 486A, UL 486B
