HUBBELL BIBD2502 TERMINALS
HUBBELL BIBD2502 TERMINALS

Hubbell BIBD2502 BIBD250-2 BURNDY 250-10 TWO SIDED UNITAP

HUBBELL
Brand: HUBBELL
SKU: BIBD2502
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

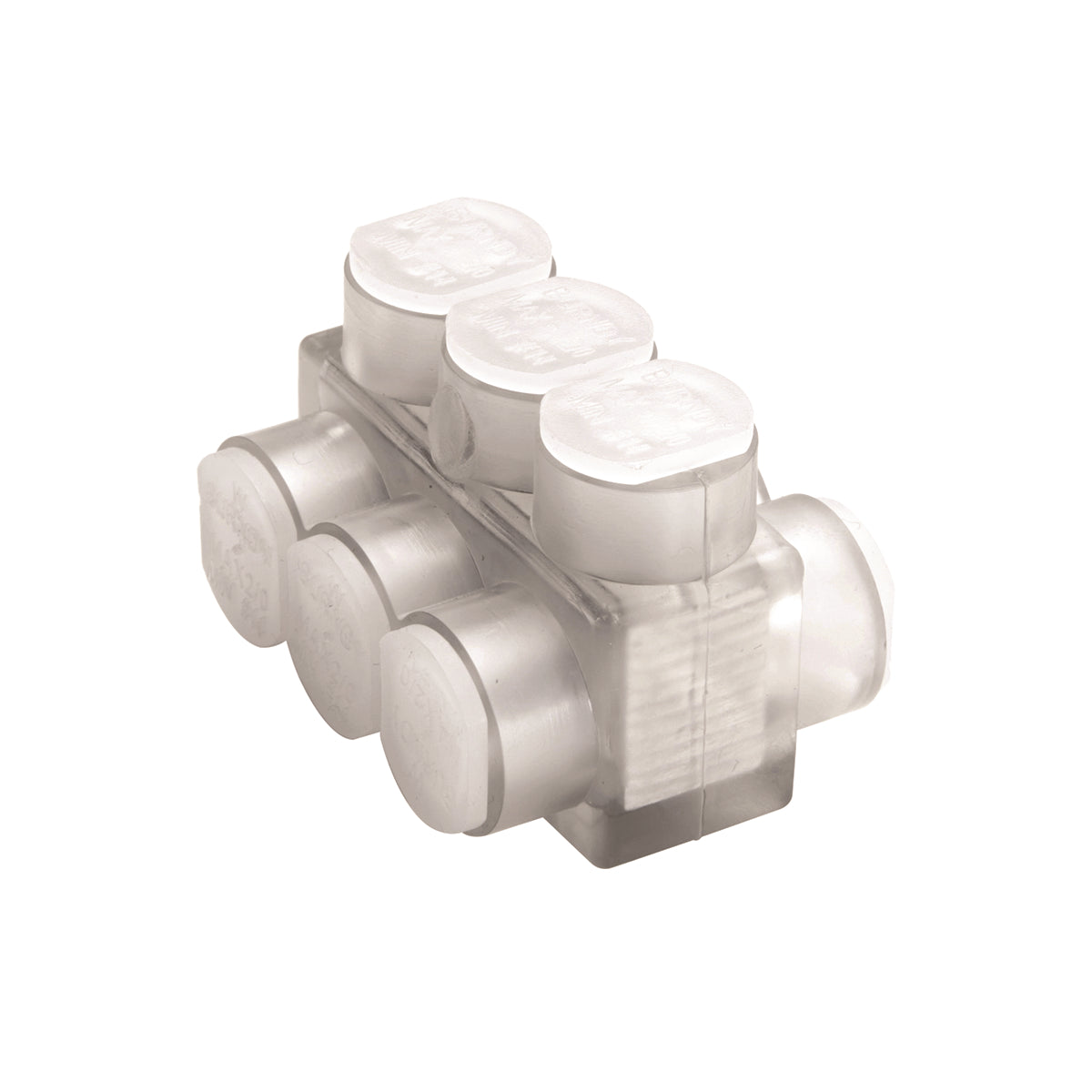

BURNDY® UNITAP™ BIBD2502 is a two-sided entry multi-tap connector suited for conductors from ten AWG to 250 kcmil. It is designed for use with copper or stranded aluminum conductors and operates at voltages up to 600 VAC. This unit is built for indoor applications and includes features that facilitate easy installation and durability.

  • Clear plastisol insulation for visual confirmation of conductor insertion
  • Pre-installed oxide inhibitor to fend off moisture and contaminants
  • Designed for torque of 275 in-lb using a 5/16 inch hex key

Product Highlights

This connector is UL listed per UL 486A-486B and CSA certified, enabling confidence in performance with flexible conductors without the need for ferrules.

Product Information

Standard Information

  • Manufacturer: Hubbell
  • Manufacturer Part Number: BIBD2502
Technical Specifications
Application
For copper or stranded aluminum conductors
Conductor Size
10 AWG to 250 kcmil
Conductor Type
Copper/Stranded Aluminum
Dimensions
2.03 inches L x 2.64 inches W x 2.14 inches H
Material
Aluminum
Voltage Rating
600 VAC
Temperature Rating
194 degrees F
