Product Description

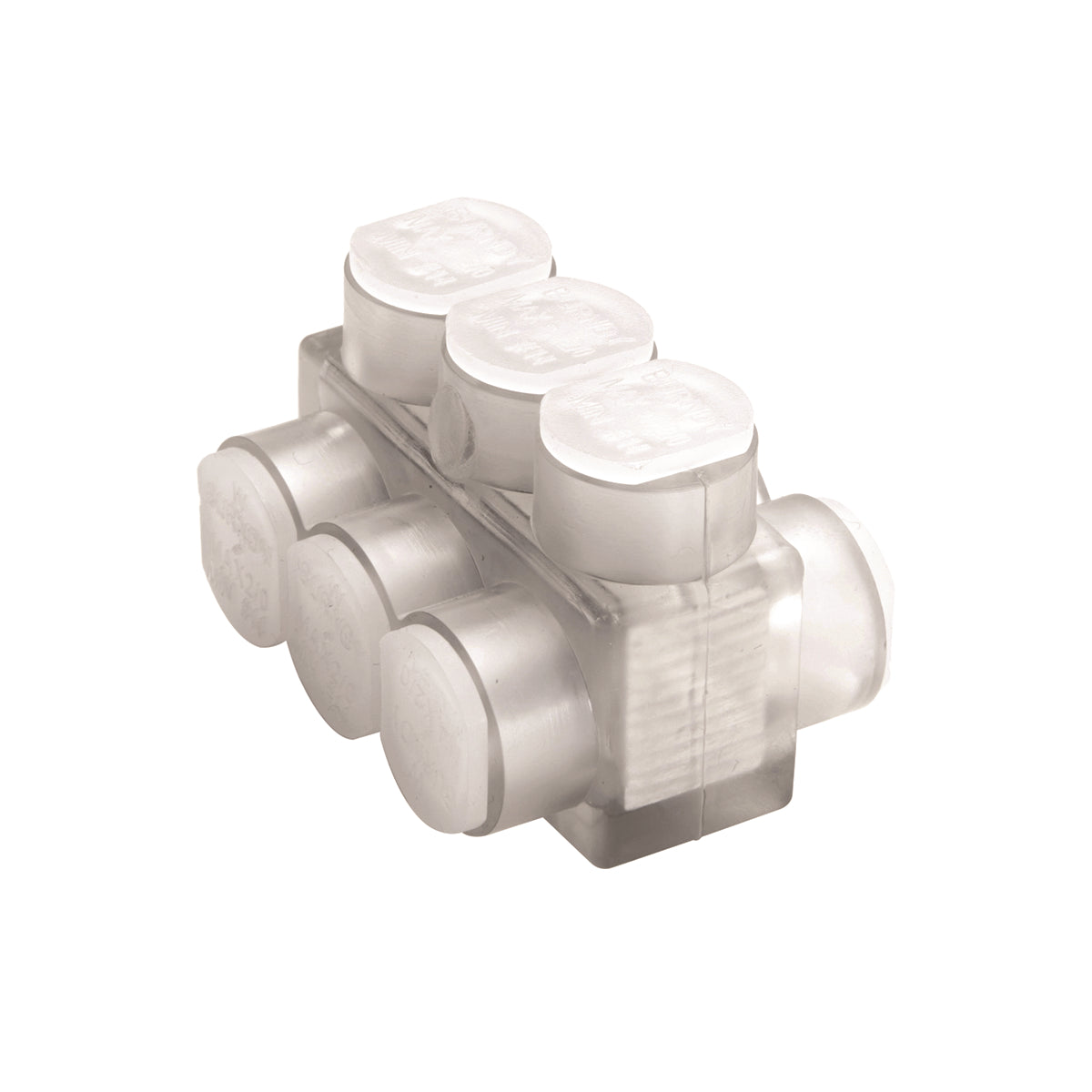

The Hubbell BIBD250-6 is a multi-tap connector designed for 10 AWG to 250 kcmil conductors. This rugged connector supports both copper and stranded aluminum wires and operates at a voltage rating of 600 VAC. Its double-sided entry allows for efficient wiring connections.
- Compatible with copper and stranded aluminum conductors.
- Includes clear insulation for visual confirmation of proper conductor insertion.
- UL listed and CSA certified, ensuring compliance with industry standards.
Product Highlights
This connector is designed to reduce installation time while providing secure and reliable connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181013343
Technical Specifications
-
Application: For copper or stranded aluminum and indoor applications
-
Conductor Size: 10 AWG to 250 kcmil
-
Conductor Type: Copper/Stranded Aluminum
-
Dimensions: 5.78 in L x 2.64 in W x 2.14 in H
-
Manufacturer Part Number: BIBD2506
-
Material: Aluminum
-
Series: BIBD
-
Specifications: 5/16 in Hex Key, 275 in-lb Torque Multi-Port
-
Voltage Rating: 600 VAC
-
Temperature Rating: 194 deg F
-
Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 486A, UL 486B, Buy American Act Compliant
