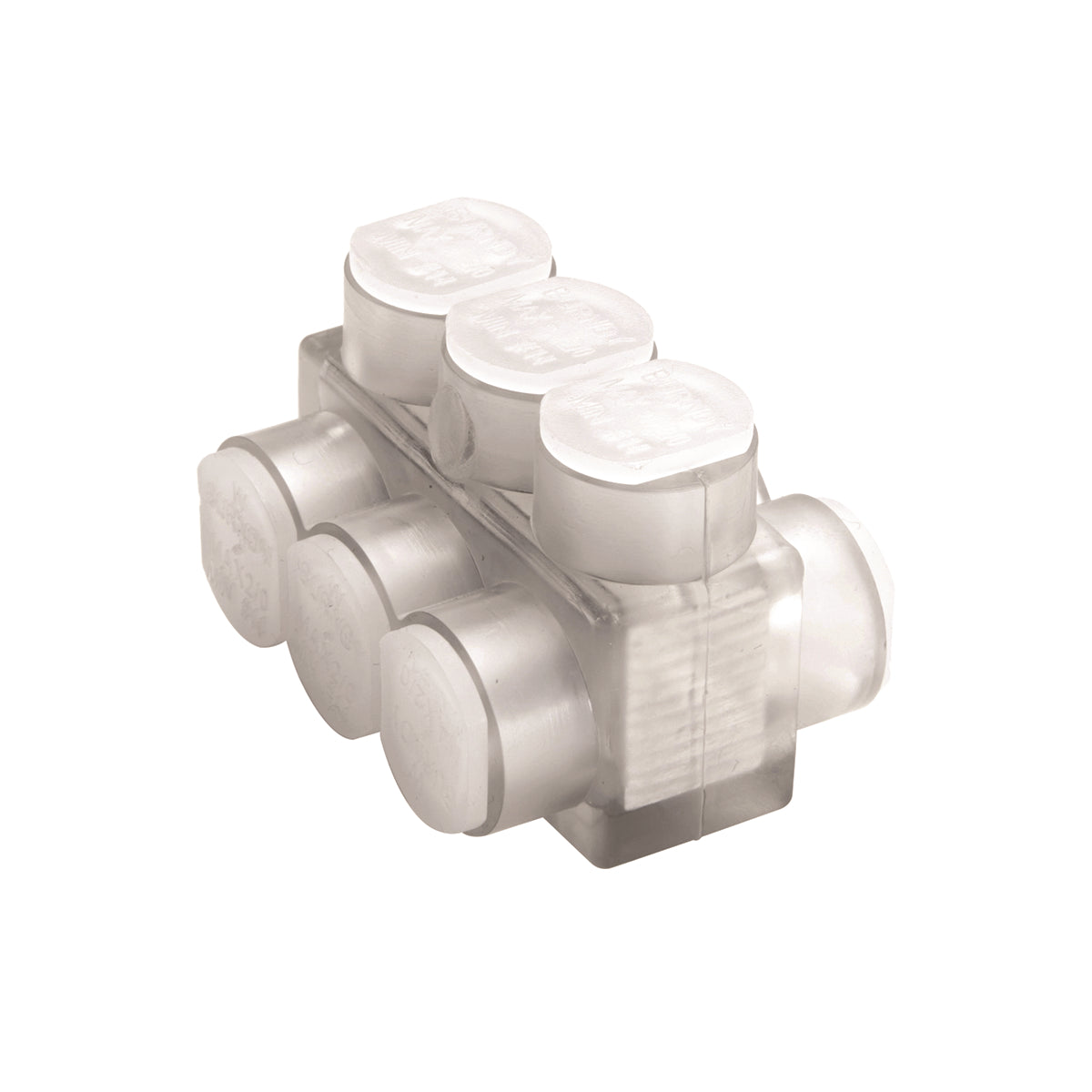

Hubbell BIBD2/04 BUR 14 Two Sided UNITAP

Product Description

The Hubbell BIBD2/04 is a two-sided entry multi-tap connector. It connects 14 to 2/0 AWG copper or stranded aluminum conductors. This connector is rated for 600 VAC and is made from aluminum.

• UL listed to UL 486A and UL 486B standards.
• 4 screw ports for secure connections.
• Clear plastisol insulation provides visual confirmation of conductor insertion.

Product Highlights

This connector is designed for indoor applications and helps reduce inventory needs due to its range taking feature.

Product Information

Standard Information

• Category: Electrical, Wiring Connectors, Compression Connectors & Lugs, Compression Multi Taps
• Manufacturer: Hubbell

Technical Specifications

• Application: For copper or stranded aluminum and indoor applications
• Conductor Size: 14 to 2/0 AWG
• Conductor Type: Copper/Stranded Aluminum
• Dimensions: 2.86 in L x 1.56 in W x 1.25 in H
• Manufacturer Part Number: BIBD2/04
• Material: Aluminum
• Series: BIBD
• Specifications: 3/16 in Hex Key, 120 in-lb Torque Multi-Port
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 486A, UL 486B
• Temperature Rating: 194 deg F
• Type: 2-Sided Entry
• Voltage Rating: 600 VAC
