HUBBELL BGBL-4 TERMINALS

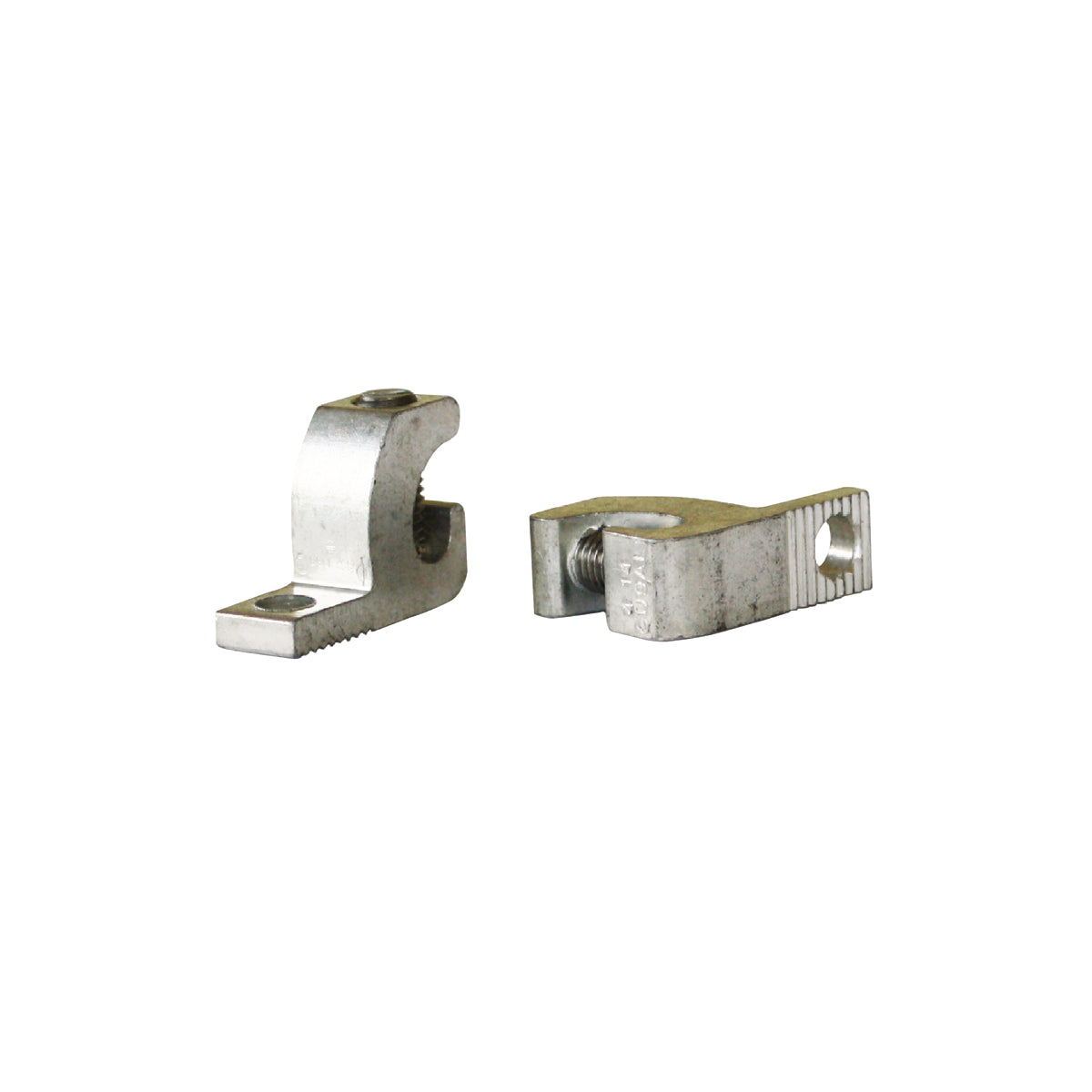

HUBBELL Hubbell BGBL-4 BURNDY 14-4 AL/CU LAY-IN LUG
HUBBELL BGBL-4 TERMINALS
Hubbell BGBL-4 BURNDY 14-4 AL/CU LAY-IN LUG

Hubbell BGBL-4 BURNDY 14-4 AL/CU LAY-IN LUG

HUBBELL
Brand: HUBBELL
SKU: BGBL-4
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Hubbell BGBL-4 is a lay-in mechanical terminal lug designed for use with solid and stranded aluminum or copper conductors ranging from fourteen to four AWG. It features a quarter inch stud size and one bolt hole, making it suitable for various wiring applications. The lug is made from high-strength aluminum alloy, which ensures durability and reliability in performance.

  • Compatible with 14 to 4 AWG conductor sizes
  • Rated for voltages up to 600 VAC
  • Constructed from 6061-T6 aluminum alloy

Product Highlights

This terminal lug is ideal for grounding and bonding applications. The design minimizes contact resistance while providing a secure connection.

Product Information

Standard Information

  • Manufacturer: Hubbell
  • Country of Origin: United States
Technical Specifications
Application
Grounding and bonding for both copper and aluminum conductor combinations up to ninety degrees Celsius and 600 V
Conductor Size
14 to 4 AWG
Conductor Type
Solid/Stranded Aluminum/Copper
Dimensions
1.1 in L x 0.79 in H
Finish
Electro-Plated Tin
Material
Aluminum
Number of Bolt Holes
1
Series
BGBL
Specifications
0.22 in hole, 35 lb-in installation torque
Standards/Approvals
AL9CU Rated, ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL Listed, UL 468A/468B
Stud Size
1/4 in
Temperature Rating
194 deg F
Tongue Size
0.39 in W x 0.15 in THK
Tongue Type
Straight
Type
Lay-In
Voltage Rating
600 VAC
