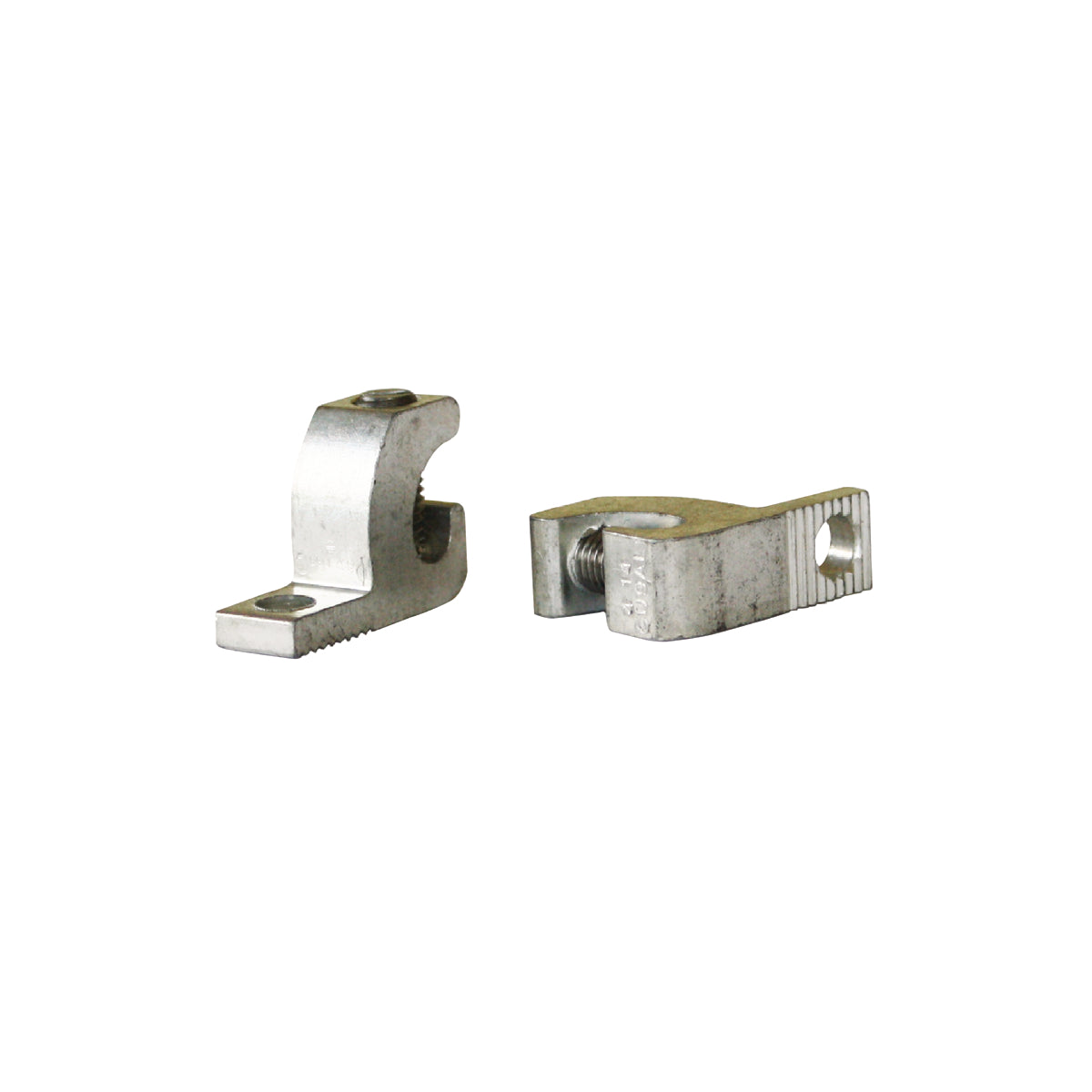

Hubbell BGBL-250 AL Lay-In Lug BUR

Product Description

The Hubbell BGBL-250 is a lay-in mechanical terminal lug designed for solid and stranded aluminum or copper conductors ranging from six AWG to two hundred fifty kcmil. This lug features a seven-sixteenth inch stud and one bolt hole. Constructed from high-strength aluminum and electro-plated tin, this product guarantees reliability and low contact resistance.

• Supports solid and stranded conductors from 6 AWG to 250 kcmil
• Compatible with grounding and bonding applications
• Designed to operate at up to 600 VAC

Product Highlights

This mechanical terminal lug streamlines installations while ensuring durable connections across various electrical applications.

Product Information

Standard Information

• Application: Grounding and bonding for copper and aluminum conductors
• Conductor Size: 6 AWG to 250 kcmil

Technical Specifications

• Dimensions: 2.18 in L x 1.72 in H
• Material: Aluminum
• Stud Size: 7/16 in
• Voltage Rating: 600 VAC
• Temperature Rating: 194 deg F
• Finish: Electro-Plated Tin
• Number of Bolt Holes: 1
• Specifications: 7/32 in Hex, 0.33 in Hole, 180 lb-in Installation Torque
• Standards/Approvals: AL9CU Rated, CSA Certified, RoHS Compliant, UL Listed
