Hubbell BDBMCS3U3 BURNDY THREE POLE OPEN STYLE 1-1 350-350

Product Description

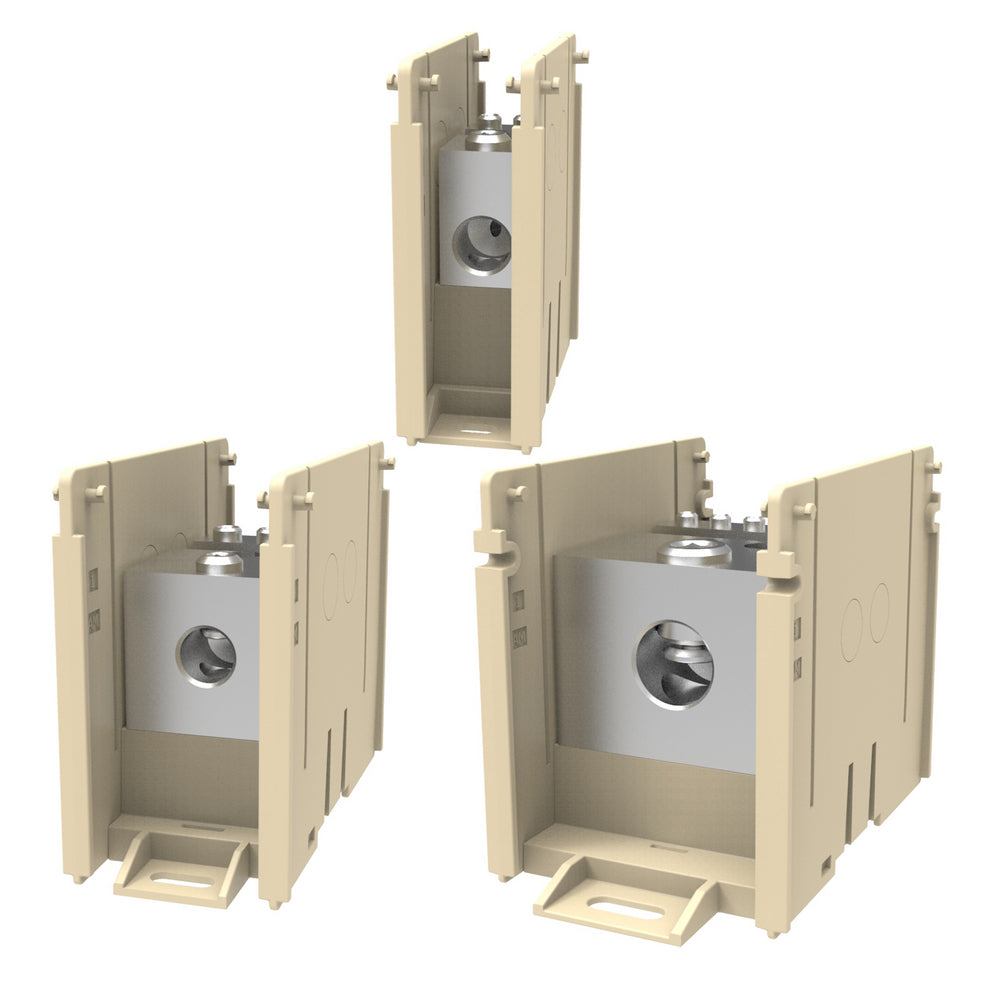

The Hubbell BDBMCS3U3 is a BURNDY VERSIPOLE Power Distribution Block designed for effective power management. This model features a type BDB medium open style suitable for various applications. It operates at a voltage rating of six hundred VAC and supports an amperage of three hundred ten A. Ideal for connecting conductors ranging from six AWG to three hundred fifty kcmil, this device is optimized for professional electrical setups.

• Rated for use with code and flex conductor without requiring ferrules.
• AL9CU dual-rated for use with copper and aluminum.
• Finger safe design with translucent polycarbonate covers for visual inspection.

Product Highlights

This power distribution block allows customization for multiple configurations and supports up to thirty taps for secondary circuits.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181067631

Technical Specifications

• Amperage Rating: 310 A
• Application: Power Distribution
• Dimensions: 5.71 in W x 4.55 in D x 3.75 in H
• Finish: Electro-Tin Coated
• Fuse Type: Class J/T/RK1/RK5/G/CC/L
• Manufacturer Part Number: BDBMCS3U3
• Material: Aluminum
• Number of Poles: 3
• Primary Connections Pole: 1
• Secondary Connection Pole: 1
• Series: Configurable
• Short Circuit Current Rating: 100 kA
• Standards/Approvals: ARRA Compliant, RoHS Compliant, cULus 1953/File No. E74460, PROP65
• Type: Type BDB Medium Open Style
• Voltage Rating: 600 VAC
