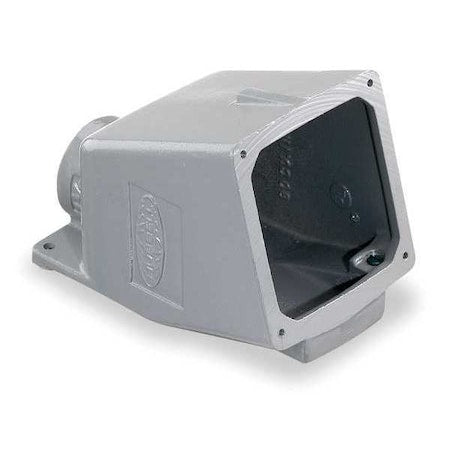

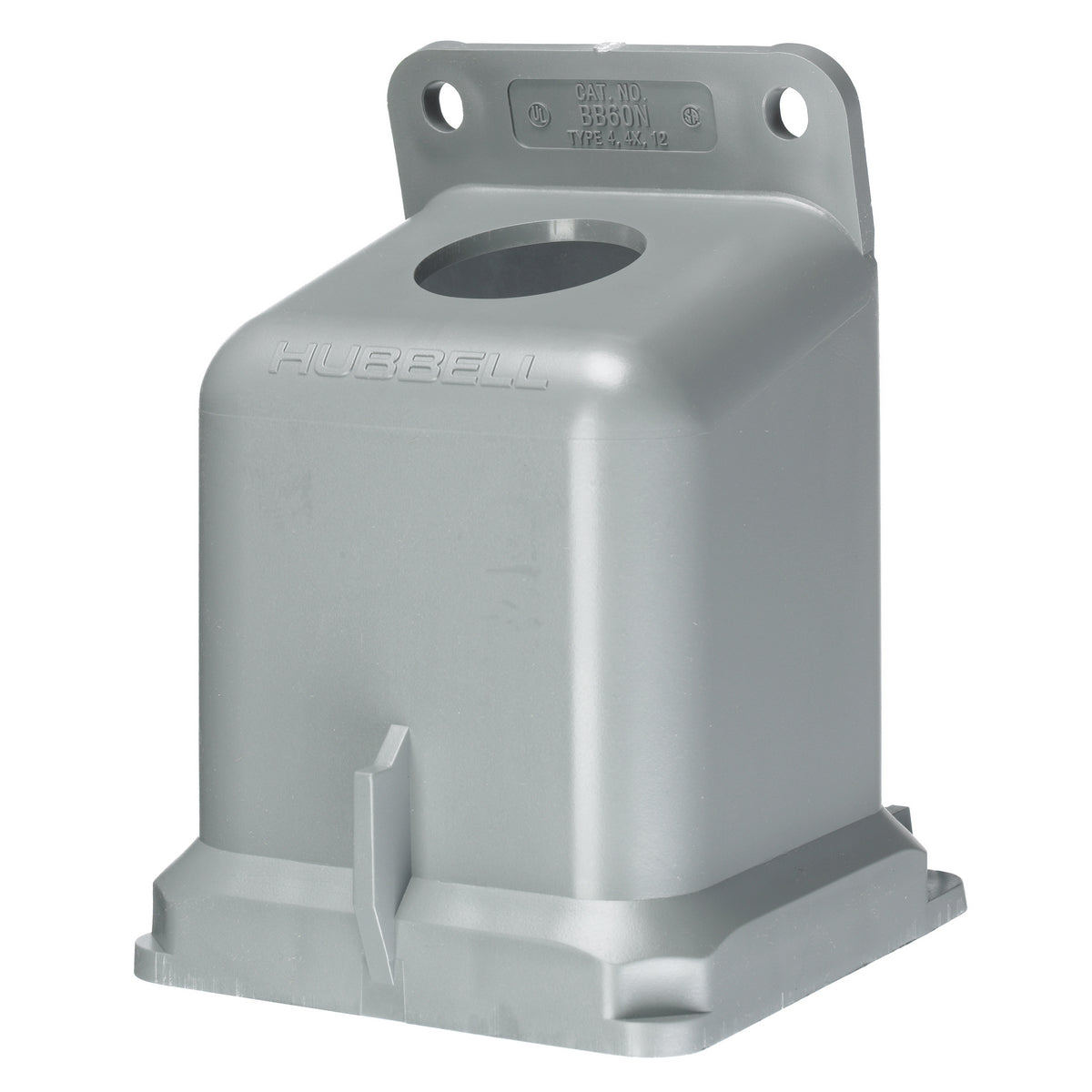

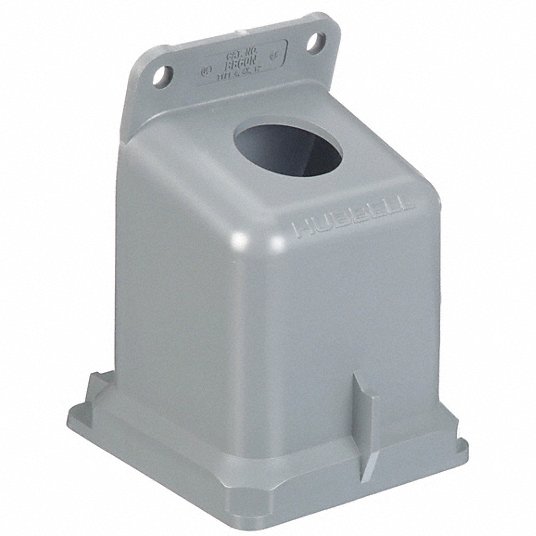

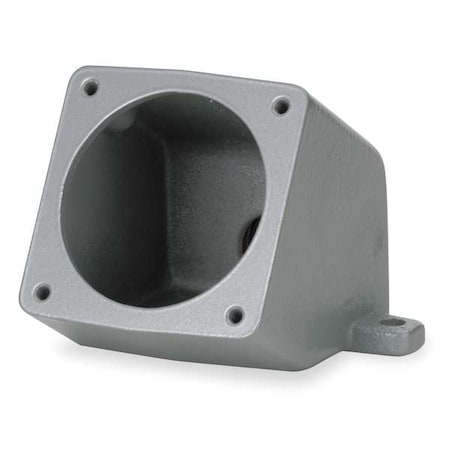

Hubbell BB60N Back Box For 60A Pin/Sleeve 15 Degree

Product Description

The HUBBELL BB60N is a non-metallic back box designed for 60A pin/sleeve devices. This back box provides a secure mounting enclosure for pin-and-sleeve receptacles and inlets, supporting attachment to surfaces and accommodating wiring connections. It is suitable for industrial electrical installations requiring additional mounting structure.

• IP67 enclosure
• 1-1/4 in NPT hub
• Requires watertight hub

Product Highlights

Designed for use with IEC pin and sleeve devices, the BB60N offers a 15-degree angle and is constructed from durable thermoplastic material.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: BB60N
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: BB60N
• Material: Thermoplastic
• Mounting: Threaded
• Standards/Approvals: RoHS Compliant|UL 514|IEC Certified
• Suitable For Use With: 60, 63 and 100 A Pin and Sleeve Device
• Type: 1-Outlet, 15 deg Angled Watertight Molded
• Depth: 4.72 in
• Width: 4.56 in
• Height: 7.76 in
• Includes: Mounting Screw
• Color: Gray
• Hub Diameter: 1.25 in
• IP Rating: IP67
• NEMA Enclosure Rating: 4X
• Number of Gangs: 1
• Mount Type: Surface
• Application: Non-Metallic
• Construction: Molded
• Cable Entry: Through Hub
• Style: 15 Degree
• Standard: UL Raintight and External Icing Test
• Box Angle: 15 Degrees
• Current Rating: 60/63 A
• Hub Type: Dead End
