Description

Product Description

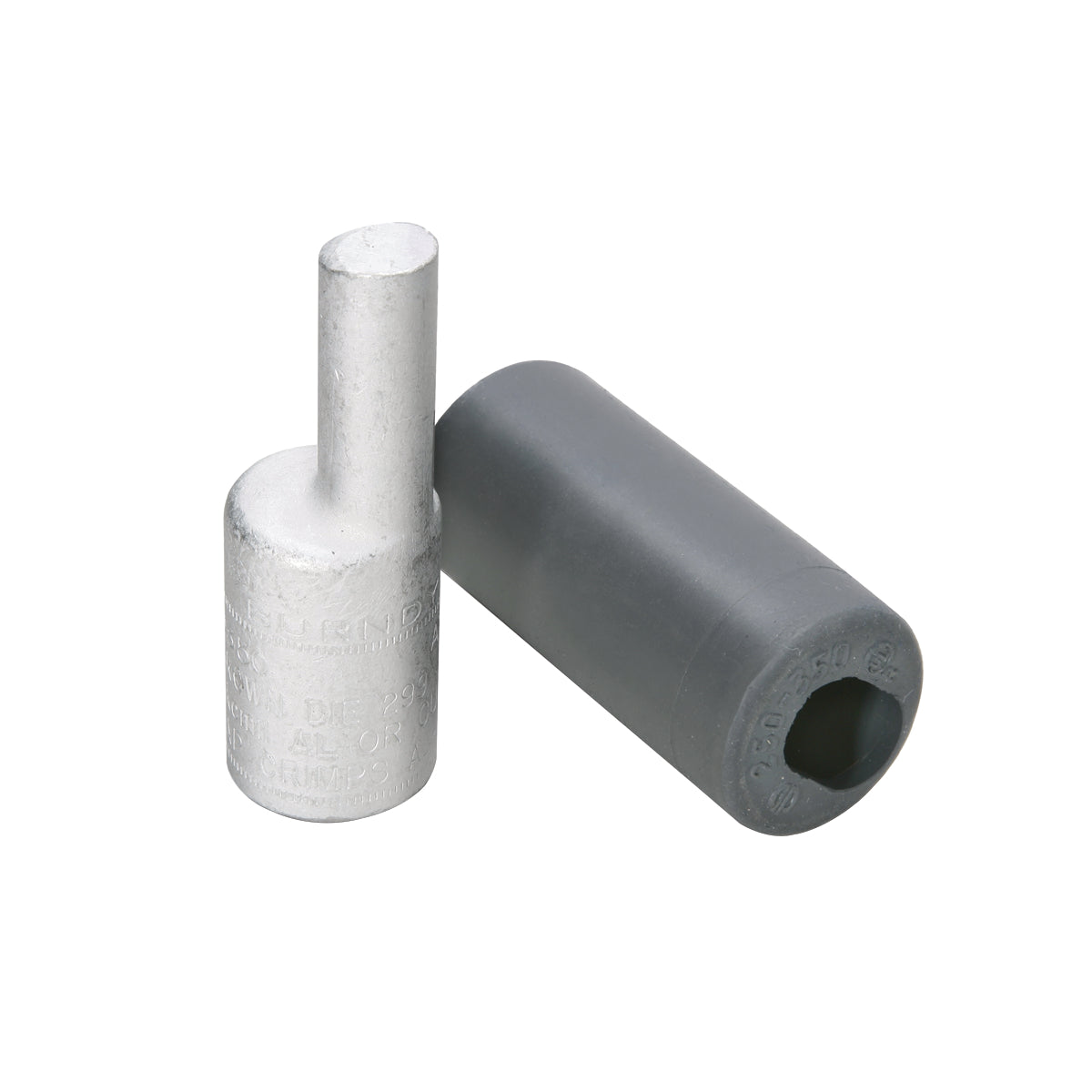

BURNDY® HYPLUG™ Compression Pin Adapter, Type AYPO Offset, is suitable for 700 to 750 kcmil conductors. The adapter features a die code of 936 Element A and yellow color code. The pin diameter is 0.81 inches, with a length of 1.76 inches, and a barrel length of 1-5/8 inches. This product supports voltage ratings from 600 to 35000 VAC and comes with a cover measuring 46 inches. The connector operates in temperatures up to 194 degrees Fahrenheit. This aluminum adapter is designed for reliable electrical connections and is perfect for various applications.

  • Meets UL (UL 486A) and CSA standards.
  • Factory pre-filled with PENETROX® joint compound.
  • Easy installation in limited working spaces.

Product Highlights

This compression pin adapter is made of electro-tin plated aluminum for enhanced conductivity and to prevent corrosion.

Product Information

Standard Information

  • Manufacturer: Hubbell
  • Manufacturer Part Number: AYPO750
Technical Specifications
Application:
For aluminum and copper conductors, mechanical connectors in molded case circuit breakers, panel board equipment, and meter sockets
Barrel Length:
1-5/8 inches
Color Code:
Yellow
Conductor Size:
700 to 750 kcmil
Die Code:
936 Element A
Dimensions:
4.16 inches long
Material:
Aluminum
Pin Diameter:
0.81 inches
Pin Length:
1.76 inches
Voltage Rating:
600 to 35000 VAC
