Product Description

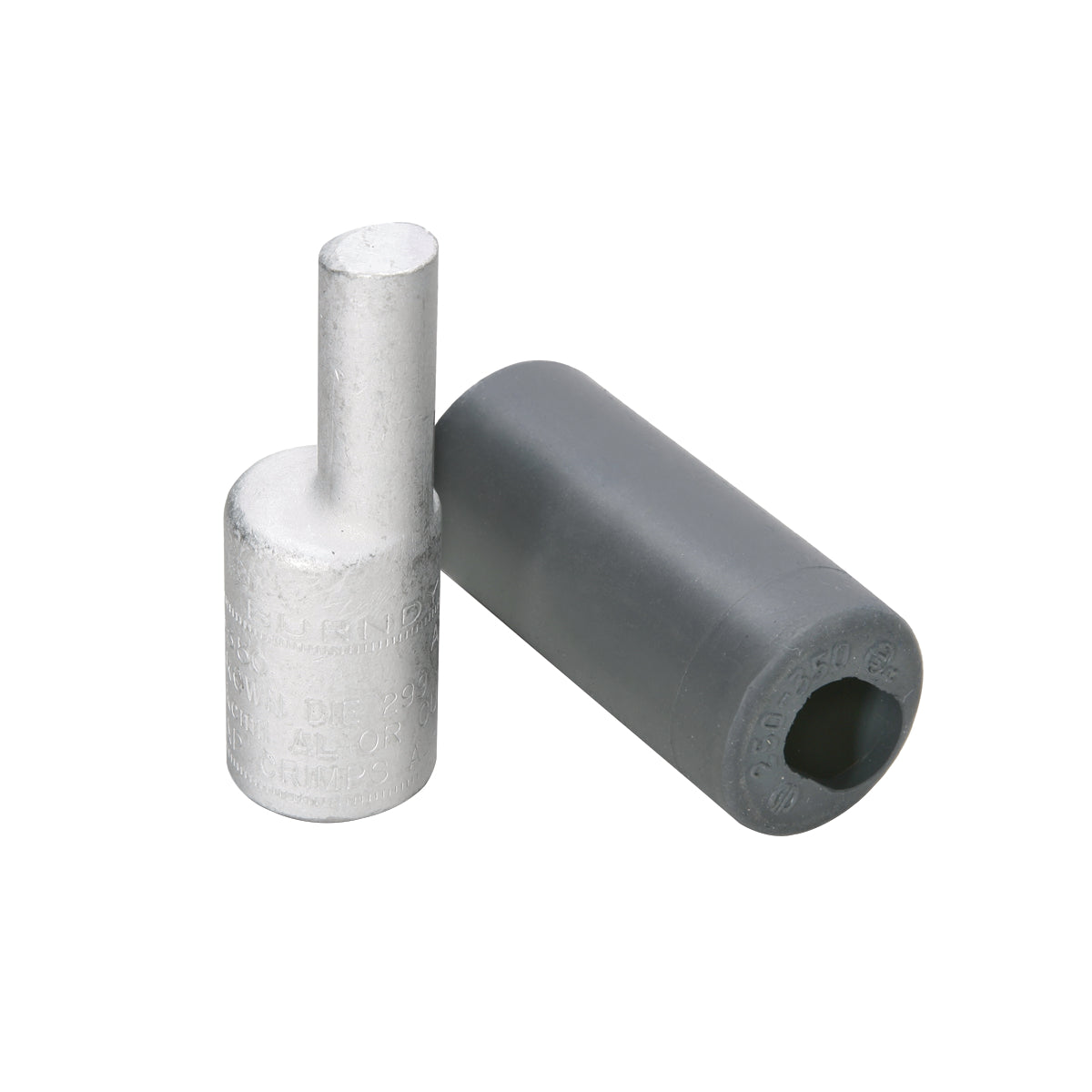

The Hubbell AYPO500 is a BURNDY HYPLUG Compression Pin Adapter designed for connecting aluminum conductors. This adapter supports a conductor size of five hundred kcmil. It features a pin diameter of zero point sixty-eight inches and a pin length of one point six inches. The adapter is suitable for voltage ratings between six hundred and thirty-five thousand VAC.
- Compatible with commercial stranded aluminum and copper conductors
- Designed for easy installation even in tight spaces
- Factory pre-filled with PENETROX joint compound
Product Highlights
The AYPO500 provides reliable electrical connections and allows for efficient installation with minimal space interference.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: AYPO500
Technical Specifications
-
Application: For aluminum and copper conductors, mechanical connectors in molded case circuit breakers, panel board equipment, and meter sockets
-
Pin Diameter: 0.68 inches
-
Pin Length: 1.6 inches
-
Barrel Length: 1-1/16 inches
-
Conductor Size: 500 kcmil
-
Voltage Rating: 600 to 35000 VAC
-
Dimensions: 3.43 inches L x 1.31 inches W x 1.31 inches H
-
Color Code: Pink
