Product Description

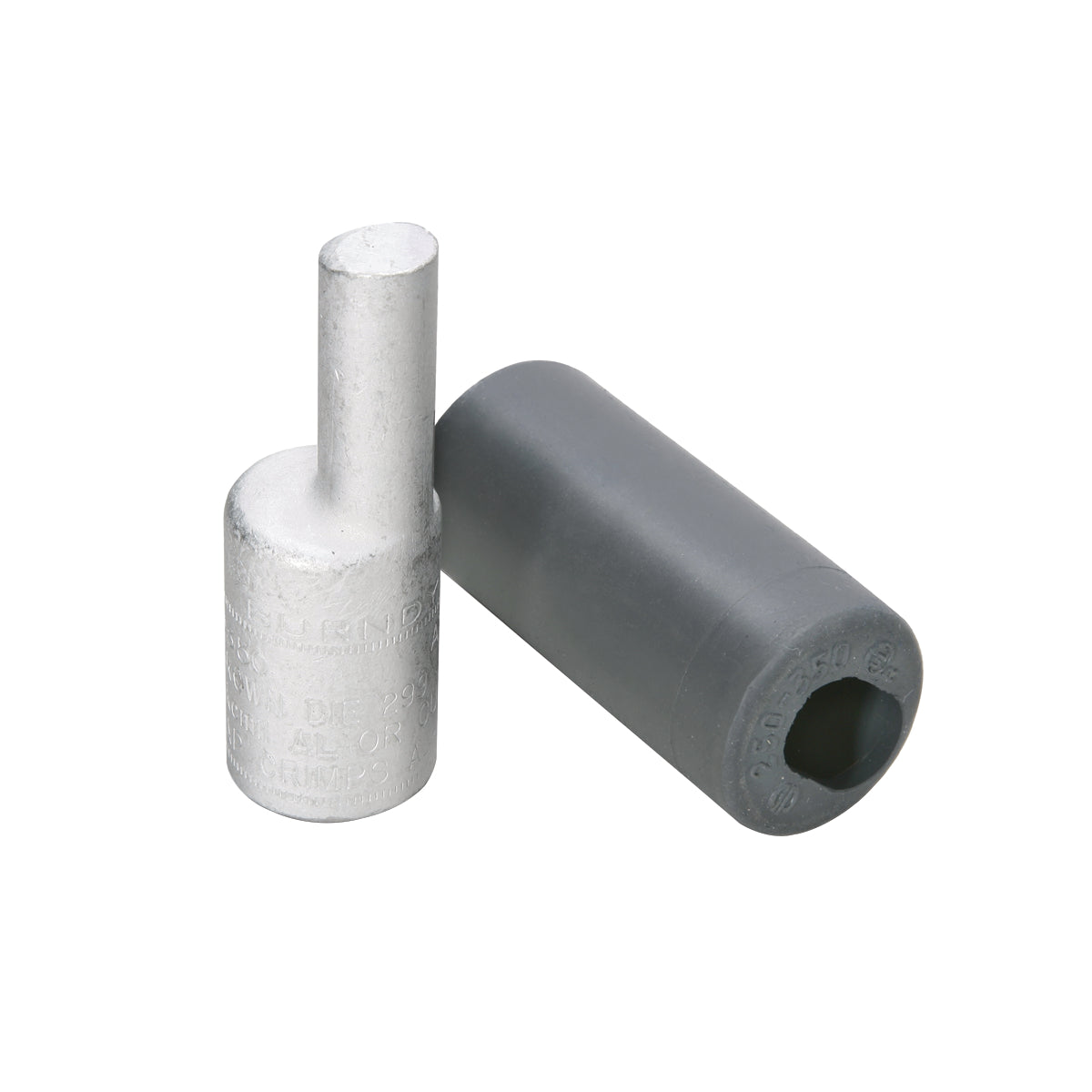

The Hubbell AYPO4/0 is a compression pin adapter designed for 4/0 AWG conductors. It features a type AYPO offset design, suitable for various electrical applications. The pin adapter is constructed from aluminum and is electro-tin plated for durability.
- Compatible with 4/0 AWG stranded conductors
- 600 to 35000 VAC rating
- Includes EPDM rubber cover for added safety
Product Highlights
This pin adapter offers easy installation with a reliable electrical connection.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: AYPO4/0
Technical Specifications
-
Application: For aluminum and copper conductors, mechanical connectors in molded case circuit breakers, panel board equipment and meter sockets
-
Barrel Length: 1-1/8 inches
-
Color Code: White
-
Conductor Size: 4/0 AWG
-
Die Code: 298 Element A
-
Dimensions: 2.8 inches in length
-
Material: Aluminum
-
Pin Diameter: 0.42 inches
-
Pin Length: 1.22 inches
-
Specifications: 2.44 inches cover, 1-1/8 inches wire strip, tin-electro plated, rated for 194 degrees Fahrenheit
-
Voltage Rating: 600 to 35000 VAC
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, Buy American Act Compliant, PROP65 warning
