Product Description

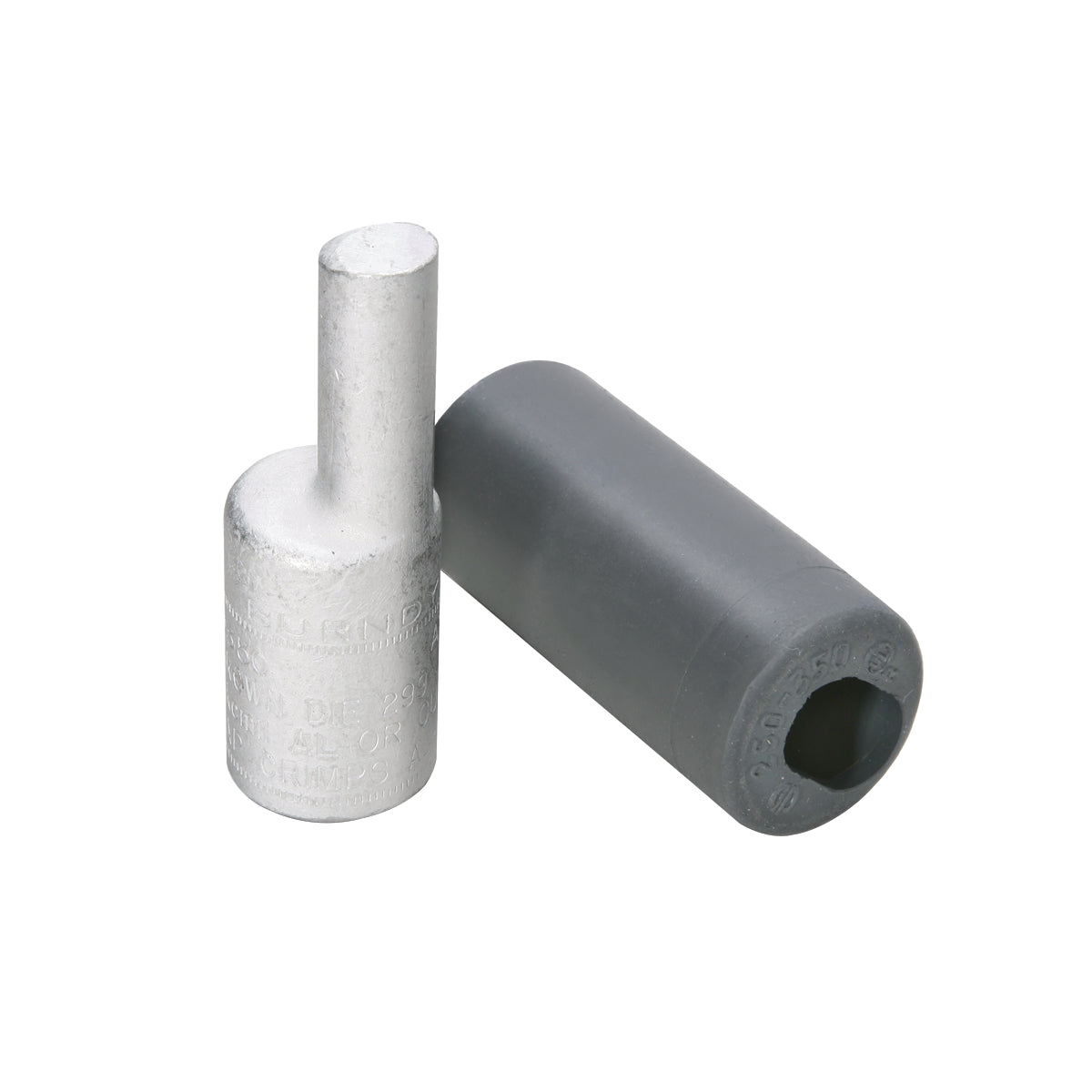

BURNDY HYPLUG Compression Pin Adapter, Model AYPO3/0 is suitable for 3/0 AWG conductors. It features a die code of 298 Element A. This pin adapter has a diameter of zero point thirty-seven inches and a length of one point twenty-two inches, making it effective for connecting aluminum and copper wires in confined spaces. The product meets high voltage requirements up to thirty-five thousand volts AC and is made from aluminum with a tin-electro plated finish for improved conductivity.
- Designed for aluminum and copper conductors
- Meets UL and CSA certifications for safety
- Factory pre-filled with PENETROX joint compound for optimal connection
Product Highlights
Manufactured to provide reliable connections in electrical systems requiring compression lugs.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Conductor Size: 3/0 AWG
Technical Specifications
-
Application: Suitable for mechanical connectors in circuit breakers and meter sockets
-
Barrel Length: 1-1/8 inches
-
Pin Diameter: 0.37 inches
-
Pin Length: 1.22 inches
-
Voltage Rating: 600 to 35000 VAC
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, Buy American Act Compliant
-
Color Code: White
-
Material: Aluminum
