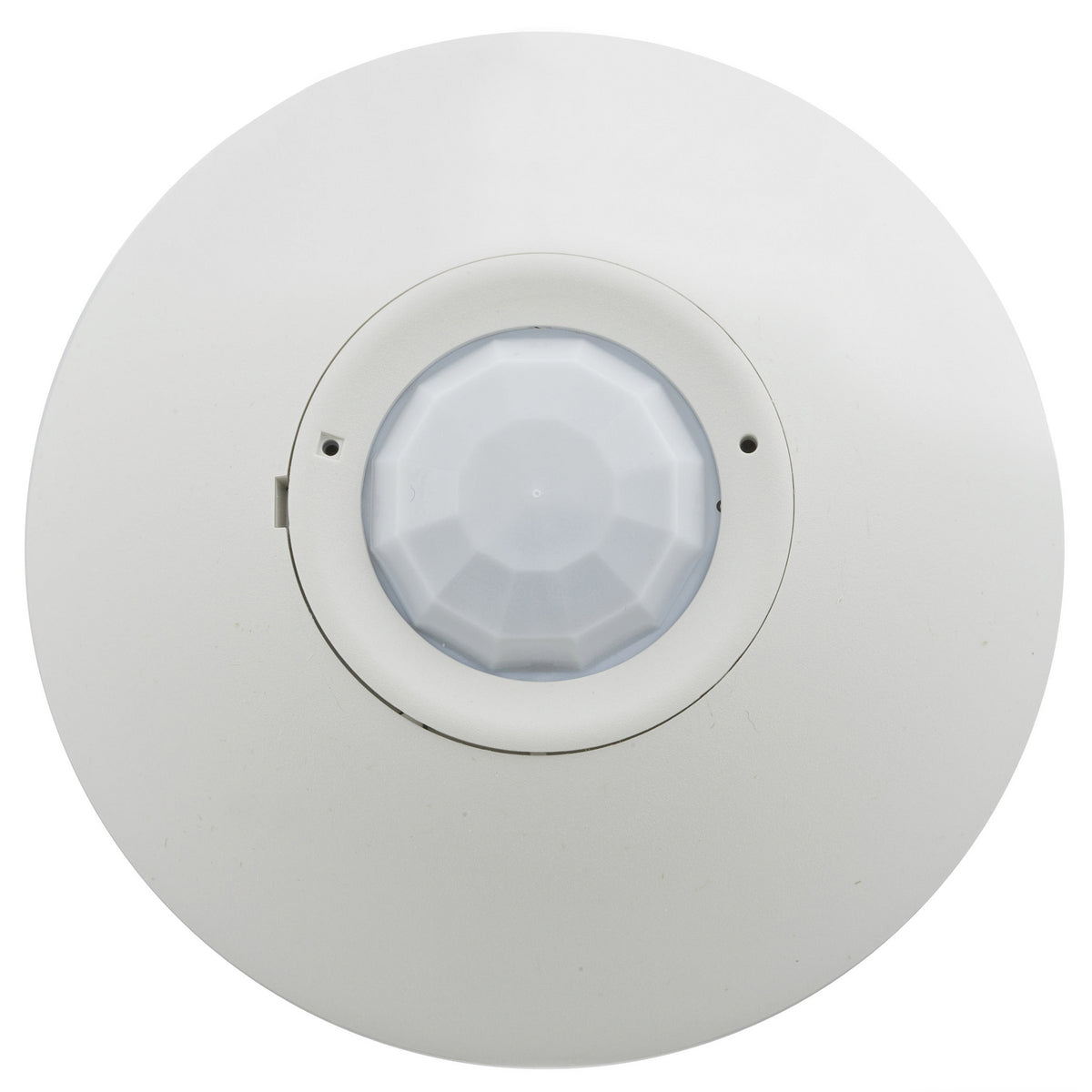

Hubbell ATP1500C HMOSS Adaptive Tech/PIR Ceiling Sensor 24 VDC

Product Description

The Hubbell ATP1500C is a ceiling-mounted occupancy sensor designed for efficient energy management. It operates on 24 VDC and uses passive infrared technology to detect motion within a coverage area of fifteen hundred square feet. This model adapts automatically, adjusting its sensitivity to optimize performance in various environments.

• Coverage area of 1500 square feet
• Passive infrared sensor technology
• 360-degree viewing angle

Product Highlights

The ATP1500C promotes energy savings by ensuring lights are on only when needed, reducing electricity costs in commercial spaces.

Product Information

Standard Information

• Manufacturer: Hubbell
• Product Name: ATP1500C HMOSS Adaptive Tech/PIR Ceiling Sensor

Technical Specifications

• Voltage Rating: 24 VDC
• Amperage Rating: 33 mA
• Material: ABS
• Mounting Type: Ceiling
• Sensor Type: Passive Infrared
• Temperature Rating: 32 to 104 degrees F
• Dimensions: 4.5 inches diameter x 1.5 inches height
• Time Delay: 8 to 40 minutes adaptive, 8 seconds test
• Standards/Approvals: ASHRAE 90.1, CEC Title 24 Certified, cULus Listed, RoHS Compliant, UL 244A
• Viewing Angle: 360 degrees
• Application: Indoor dry environment
• Connection Type: Lead wire
