Hubbell AMS4/0 AMS-4/0 BURNDY SPLICE/REDUCER CU/AL

Product Description

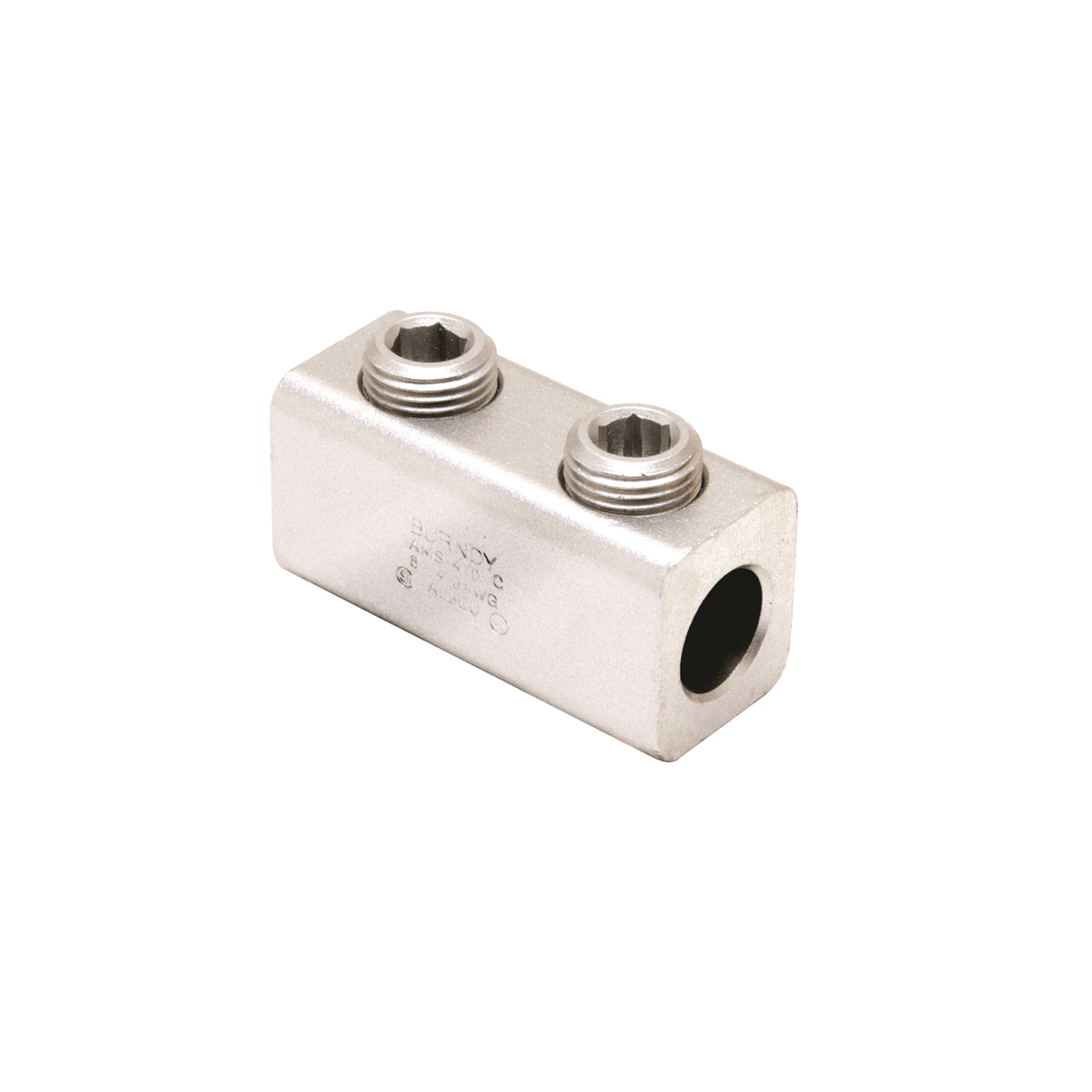

The Hubbell AMS4/0 is a mechanical splicer/reducer connector suitable for dual-rated applications involving solid and stranded aluminum or copper conductors. It can accommodate conductor sizes ranging from six to four/zero AWG. This connector is built with high strength aluminum and features two screws for secure connections. The connector is ideal for various electrical wiring tasks where reliable connections are crucial.

• Dual-rated for both aluminum and copper conductors.
• Features a tin plating for reduced contact resistance.
• Compact dimensions of two point three one two five inches in length.

Product Highlights

This splicer is designed for efficient installation and reliable performance in electrical applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181024102

Technical Specifications

• Application: For copper and aluminum conductors
• Conductor Size: 6 to 4/0 AWG
• Conductor Type: Solid/Stranded Aluminum/Copper
• Dimensions: 2.3125 in L x 1 in W x 1.28 in H
• Finish: Tin Plated
• Manufacturer Part Number: AMS4/0
• Material: Aluminum
• Number of Screws: 2
• Series: AMS
• Torque Rating: 275 in-lb Installation Torque, 5/16 in Hex, 9/16 in Dia Screw
• Temperature Rating: 194 deg F
• Standards/Approvals: ANSI C119.4|ARRA Compliant|Buy American Act Compliant|CSA Certified|RoHS Compliant|UL 467|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
