Hubbell AMS2 AMS-2 BURNDY SPLICER/REDUCER CU/AL 2AWG-14AWG

Product Description

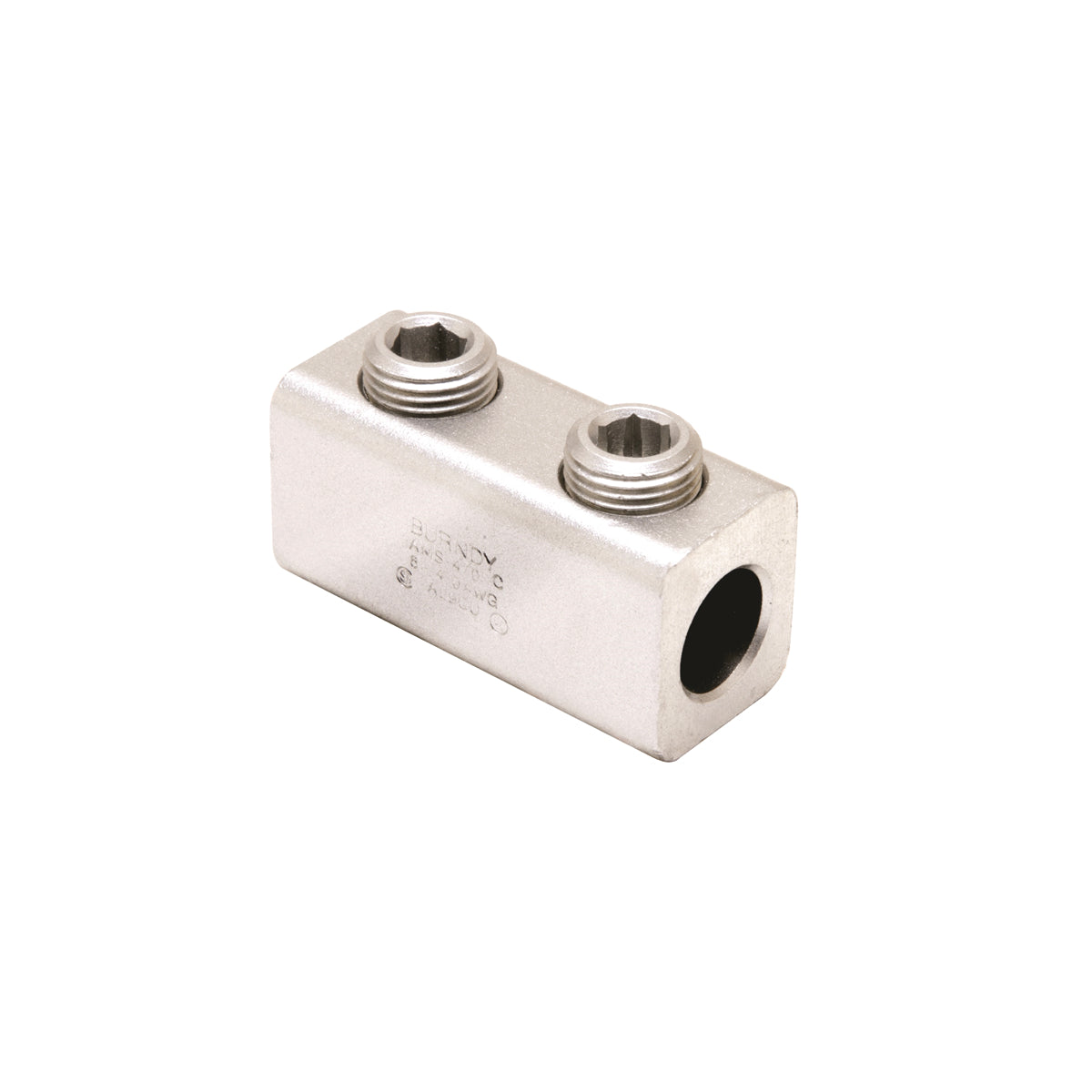

The Hubbell AMS2 is a dual rated mechanical splicer and reducer connector. It is designed for use with both solid and stranded aluminum and copper conductors ranging from fourteen to two AWG sizes. This connector features two screws for secure connections. It is suitable for various wiring applications, ensuring reliable performance.

• Compatible with copper and aluminum conductors
• Constructed from high-strength aluminum
• Includes heat-resistant components

Product Highlights

Reliable connections for electrical wiring tasks in various settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• Product Name: AMS-2 BURNDY SPLICER/REDUCER CU/AL 2AWG-14AWG

Technical Specifications

• Application: For copper and aluminum conductors
• Conductor Size: 14 to 2 AWG
• Conductor Type: Solid/Stranded Aluminum/Copper
• Dimensions: 1.5937 inches L x 0.5625 inches W x 0.79 inches H
• Finish: Tin Plated
• Material: Aluminum
• Number of Screws: 2
• Series: AMS
• Specifications: 3/8 inches Dia Slotted Hex Screws, 50 in-lb Installation Torque
• Temperature Rating: 194 degrees F
• Standards/Approvals: ANSI C119.4, ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467
