Product Description

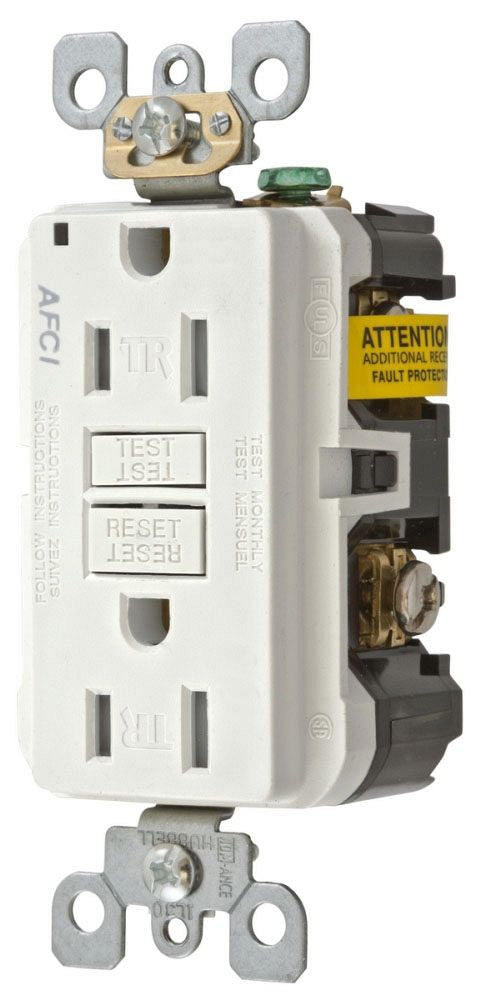

The Hubbell AFR15TRW is a 15 amp arc fault receptacle designed for both residential and commercial use. This receptacle offers enhanced safety features to prevent electrical fires caused by arc faults. It operates at one hundred twenty-five volts and is equipped with tamper-resistant technology.
- Meets 2017 National Electric Code for AFCI protection.
- Automatically tests AFCI functionality with a reset button press.
- Green power ON LED indicator.
Product Highlights
The AFR15TRW receptacle is suitable for kitchens, living rooms, and other areas requiring AFCI safety features. It includes a two-pole configuration with three wires and is rated for both commercial and residential applications.
Product Information
Standard Information
-
Brand: Hubbell
-
Voltage Rating: 125 VAC
Technical Specifications
-
Amperage Rating: 15 A
-
Application: Commercial, Industrial, and Residential Applications
-
Color: White
-
Dimensions: 1.31 in W x 1.29 in D x 4.21 in H
-
Grade: Commercial/Residential
-
Horsepower: 1 hp, 2 hp
-
Material: Thermoplastic/Composite
-
NEMA Rating: 5-15R
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -30 to 150 deg F
-
Terminal Type: Screw
-
Standards/Approvals: CSA C22.2 No. 42|Federal Specification WC596|NEMA WD6|NEC 406.12/210.52|UL 1699A|UL 498 File No. E366570
-
Type: 1-Phase Decorator Duplex Standard Tamper Resistant Screw Mount
