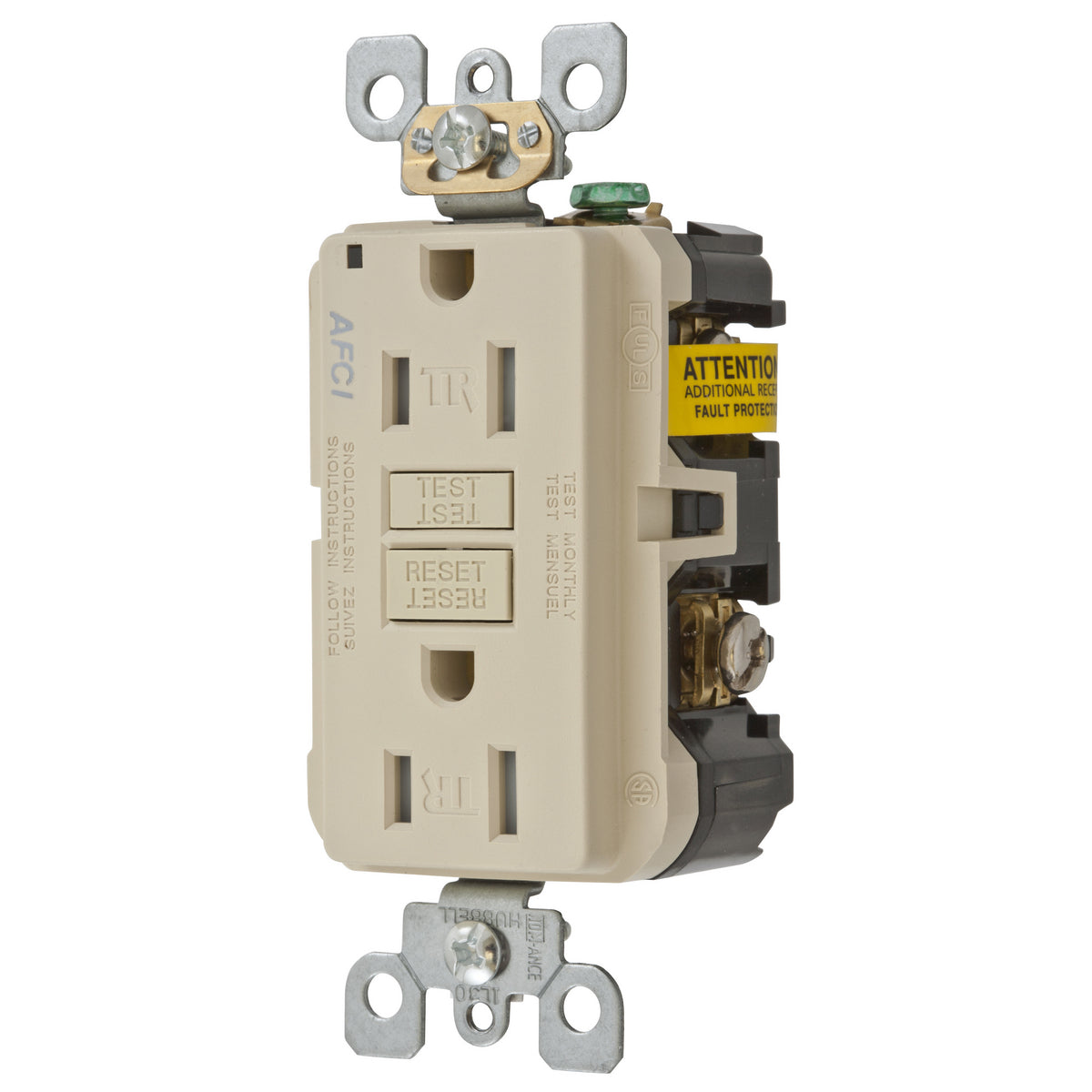

Hubbell AFR15TRI 15A Arc Fault TR Receptacle 125 VAC

Product Description

The Hubbell AFR15TRI is a 15 amp arc fault receptacle designed for safety in residential and commercial settings. It features a tamper-resistant design that prevents unauthorized access, complying with the latest electrical codes. This receptacle is suitable for applications requiring reliable protection against electrical faults.

• Arcing protection for 120 VAC circuits
• Meets 2017 national electrical code standards
• Self-testing functionality with LED indicator

Product Highlights

Ideal for use in kitchens, living rooms, and other areas where electrical safety is critical.

Product Information

Standard Information

• Manufacturer: Hubbell
• Amperage Rating: 15 A

Technical Specifications

• Voltage Rating: 125 VAC
• Horsepower: 1 hp, 2 hp
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Color: Ivory
• Dimensions: 1.31 in W x 1.29 in D x 4.21 in H
• Material: Thermoplastic/Composite
• Temperature Rating: -30 to 150 deg F
• Standards/Approvals: CSA C22.2 No. 42, Federal Specification WC596, NEMA WD6, NEC 406.12/210.52, UL 1699A, UL 498 File No. E366570
