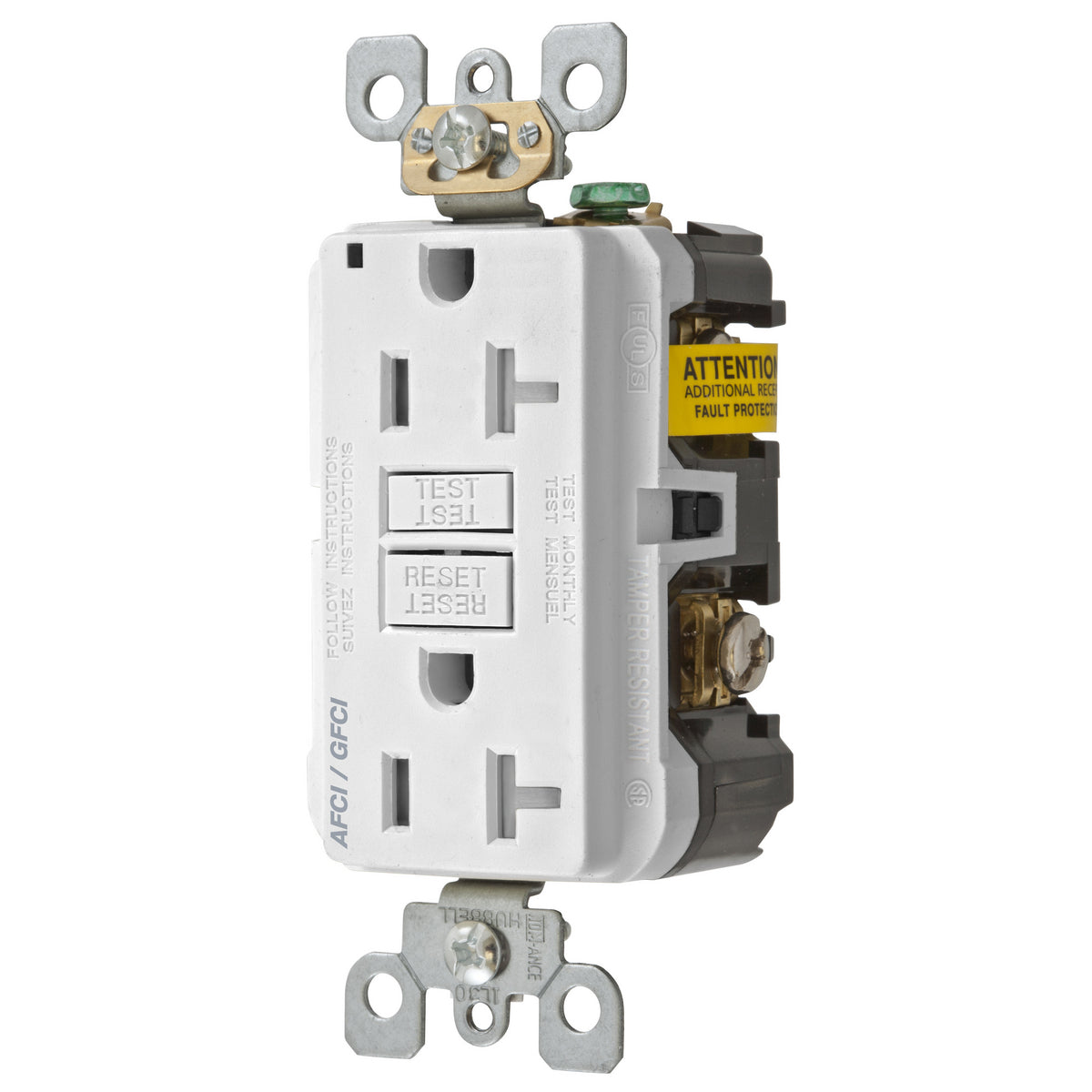

Hubbell AFGF20TRW 20A Comb AF/GF Rec White

Product Description

The Hubbell AFGF20TRW is a 20 Amp Combination AFCI and GFCI Receptacle designed for use in residential and commercial applications. It operates at a voltage rating of one hundred twenty-five volts and has a sturdy tamper-resistant design. This receptacle is suitable for indoor and dry locations, ensuring safety and compliance with electrical codes.

• Dual functionality provides protection against ground faults and arc faults.
• Prevents device reset if it can no longer provide protection.
• Visual indicators help identify power status and fault conditions.

Product Highlights

This receptacle offers enhanced safety and reliability, making it ideal for high-demand areas. It supports installations where ground fault interruption is necessary, such as kitchens and bathrooms.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: AFGF20TRW

Technical Specifications

• Amperage Rating: 15 A
• Application: Dry Locations, Indoor and Electrical Safety Applications
• Color: White
• Dimensions: 1.68 inches W x 1.43 inches D x 4.21 inches H
• Horsepower: 1 hp
• Material: Composite
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: UL 498, CSA C22.2 No. 42 No. M-02A, UL94 V-2 Flammability Rating, NEMA WD6
• Temperature Rating: -30 to 150 degrees F
• Terminal Type: Screw
• Type: 1-Phase Autoground Clip Tamper Resistant Standard Screw Mount
• Voltage Rating: 125 VAC
