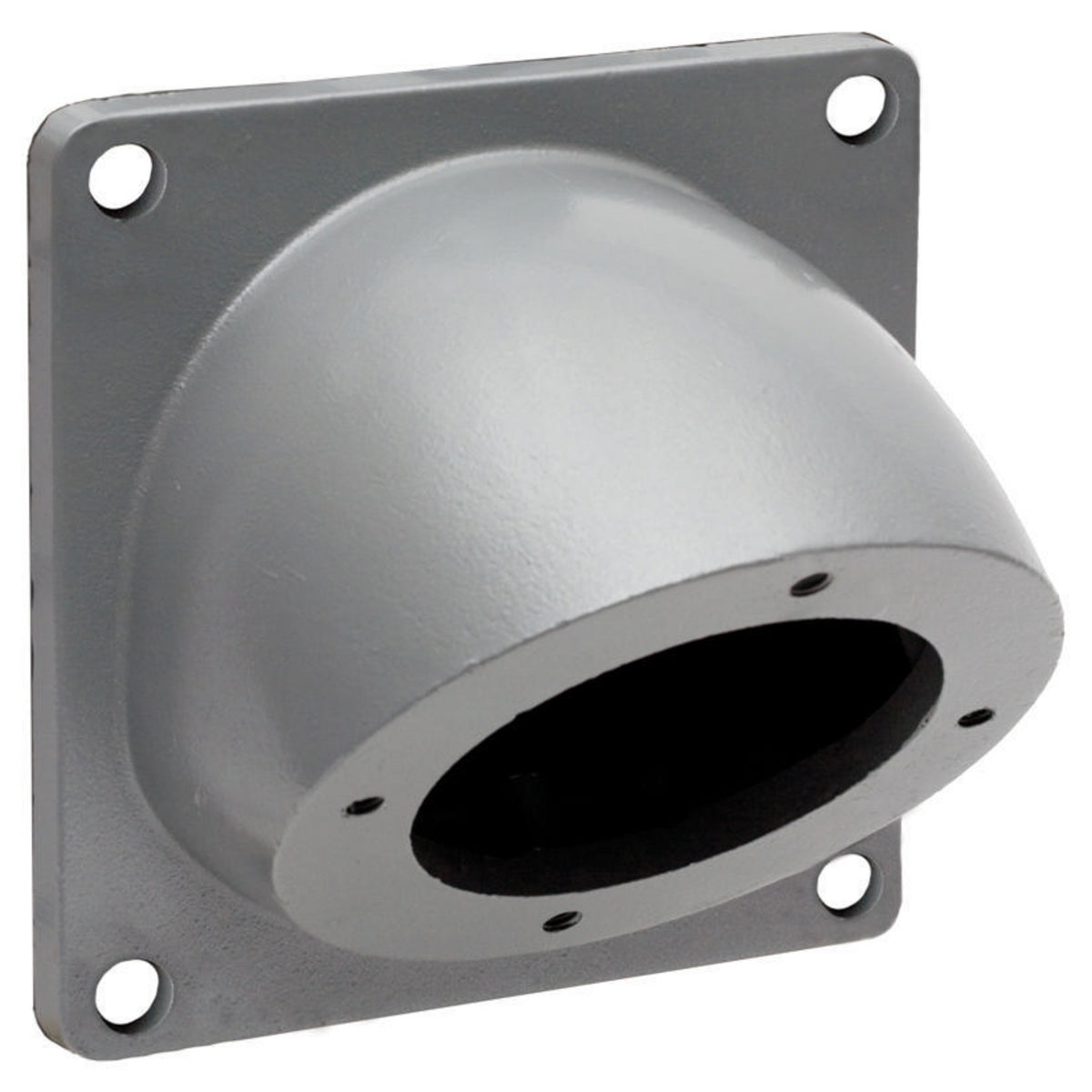

Hubbell AA20045 Insulgrip Pin and Sleeve Back Box Angle Adapter 200A

Product Description

The HUBBELL AA20045 is a heavy-duty Insulgrip pin and sleeve back box angle adapter, designed for high ampacity connections. This 200A adapter is built with composite/thermoplastic material and features a pressure screw terminal. It is suitable for 3-phase back box grounding and is watertight for demanding environments.

• Identification and ratings are part of the external label and molded into the receptacle mount
• Withstands 3000 VAC dielectric voltage
• Certified for current interrupting at full rated current

Product Highlights

Heavy-duty Insulgrip pin and sleeve back box angle adapter with a 200A rating, ideal for robust and watertight connections.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: AA20045
• Country of Origin: China

Technical Specifications

• Amperage Rating: 200 A
• Application: For high ampacity connections
• Material: Composite/Thermoplastic
• Number of Poles: 3 Pole
• Number of Wires: 4-Wire Grounding
• Standards/Approvals: CSA Certified|UL 498|UL 1686|IEC 309|UL94 5VA- V-0 Flammability Rating
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Type: 3-Phase Back Box Grounding Heavy Duty Standard Watertight
• Voltage Rating: 600 VAC
• Angle [Specifications]: 45 Degree
• Phase: Three Phase
• Box Type [Specifications]: Four-Way Back Box
• Hub Type [Specifications]: Dead End
• Includes [Specifications]: Mounting Screws
• Use With [Specifications]: Metallic, Standard Sized Product
• Standards [Specifications]: UL Listed
• Mount Type [Specifications]: Surface
• For Use With [Specifications]: Insulgrip Pin and Sleeve
• Current Rating [Specifications]: 200 A
• Wire Connection Type [Specifications]: Screw Terminals
• Housing Material Type [Specifications]: Non-Metallic
• Resistance Properties [Specifications]: Impact Resistant
• Compatible with Series [Specifications]: Hubbell
• UL 94 Flammability Rating [Specifications]: V-0
• Maximum Operating Temperature [Specifications]: 75 Degrees C
• Minimum Operating Temperature [Specifications]: -40 Degrees C
• Body Material - Pin and Sleeve [Specifications]: Thermoplastic
• Catalog Number: AA20045
• Construction: Cast
• Environmental Conditions: Watertight
• Item Type: Mounting Box
• Number Of Outlets: Accepts 1-Device
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Operating Temperatures - Max. Continuous: 75 Min. Continuous: -40 C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
• Series: Back Boxes and Adapters
• Specifications: Assembly Screws - Stainless Steel Gaskets - Neoprene Hinge Spring - Stainless Steel
• Style: 45 Degree
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 200 A
• Wattage: 120000
• Wire Size: #2 AWG to #4/0 AWG
• Industry Standard(s): UL Listed
• Temperature Range: Limited By Device
• Applications: Metallic
• Conductor Size: 2-4/0 AWG
• Current: 200 Amp
• Number of Phases: 3 Phase
• Size: Standard Sized Product
• Standard: UL
• TC Connection: Pressure Screw Terminals
• Product Series: Back Boxes And Adapters
• Height: 7.8 Inch
• Length: 13.2 Inch
• Width: 9.5 in
• Brand: Hubbell Incorporated
• Sub Brand: IEC 309 Pin and Sleeve Devices
• Adapter Type: Pin and Sleeve Receptacle 45 Angle
• Device Size: 200 A
• Mounting: Back Box
