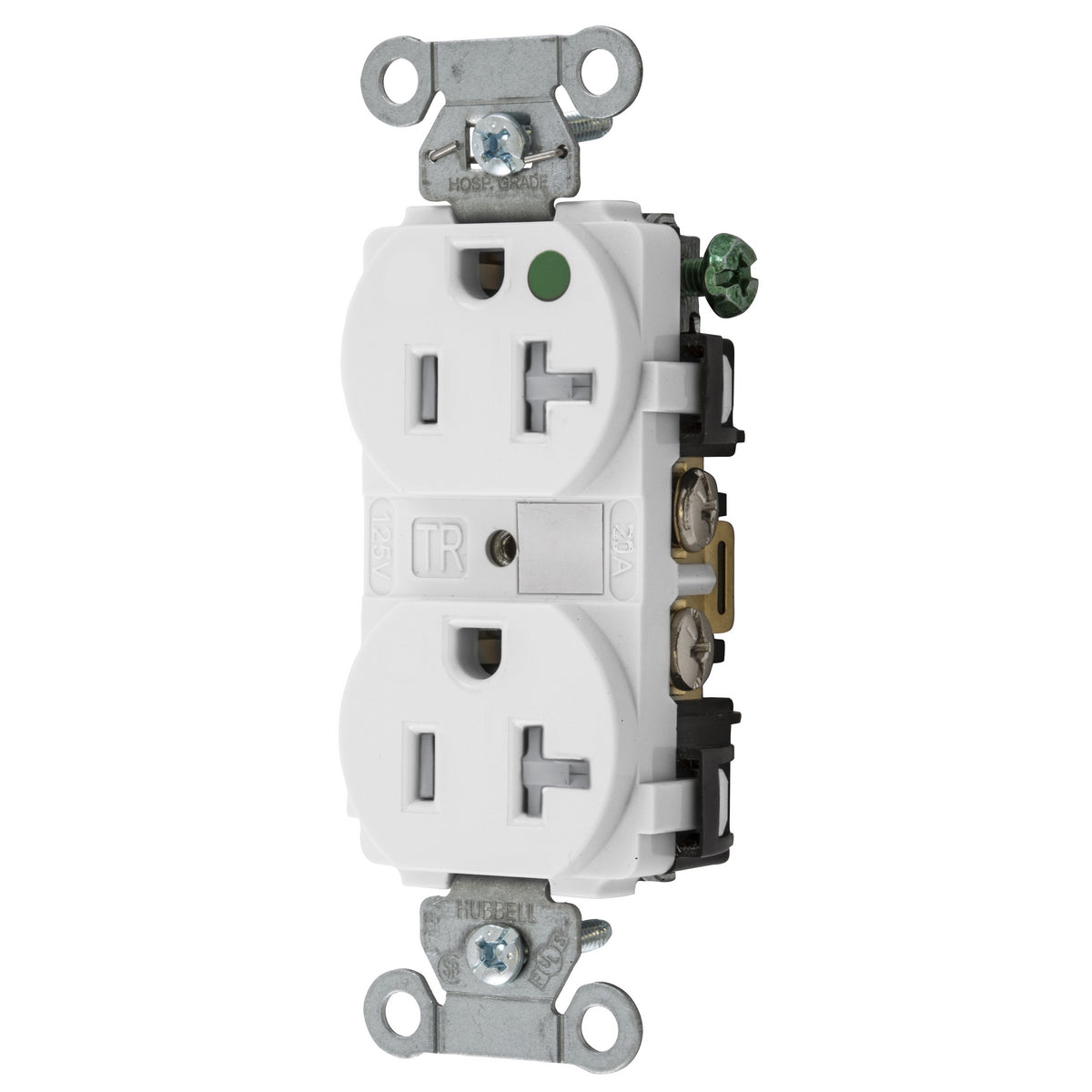

Hubbell 8300WTRA Wiring Device-Kellems HUB-PRO HG DPLX 20A/125V TR WH

Product Description

The Hubbell 8300WTRA is a wiring device known for its tamper-resistant features. It is a one-phase duplex heavy-duty standard screw mount straight blade receptacle. This model supports a voltage of one hundred twenty-five volts and an amperage rating of twenty amps. It is suitable for use in various environments, including schools, hotels, and assisted living facilities. The device meets hospital-grade standards.

• Heavy-duty construction for durability
• Hospital grade with tamper protection
• Meets CSA and UL508 standards

Product Highlights

This receptacle incorporates a unique tamper-resistant mechanism. It ensures safety while providing reliable power connections. Its design prevents damage from sharp or bent plugs.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358554238

Technical Specifications

• Amperage Rating: 20 A
• Application: Schools and Universities, Hotels, Assisted Living Facilities
• Color: White
• Dimensions: 3.28 x 1.57 x 1.15 inches
• Grade: Hospital
• Horsepower: 1 hp
• Manufacturer Part Number: 8300WTRA
• Material: Nylon
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards: CSA Certified, UL 498
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Type: 1-Phase Duplex Heavy Duty Standard Tamper-Resistant
• Voltage Rating: 125 VAC
