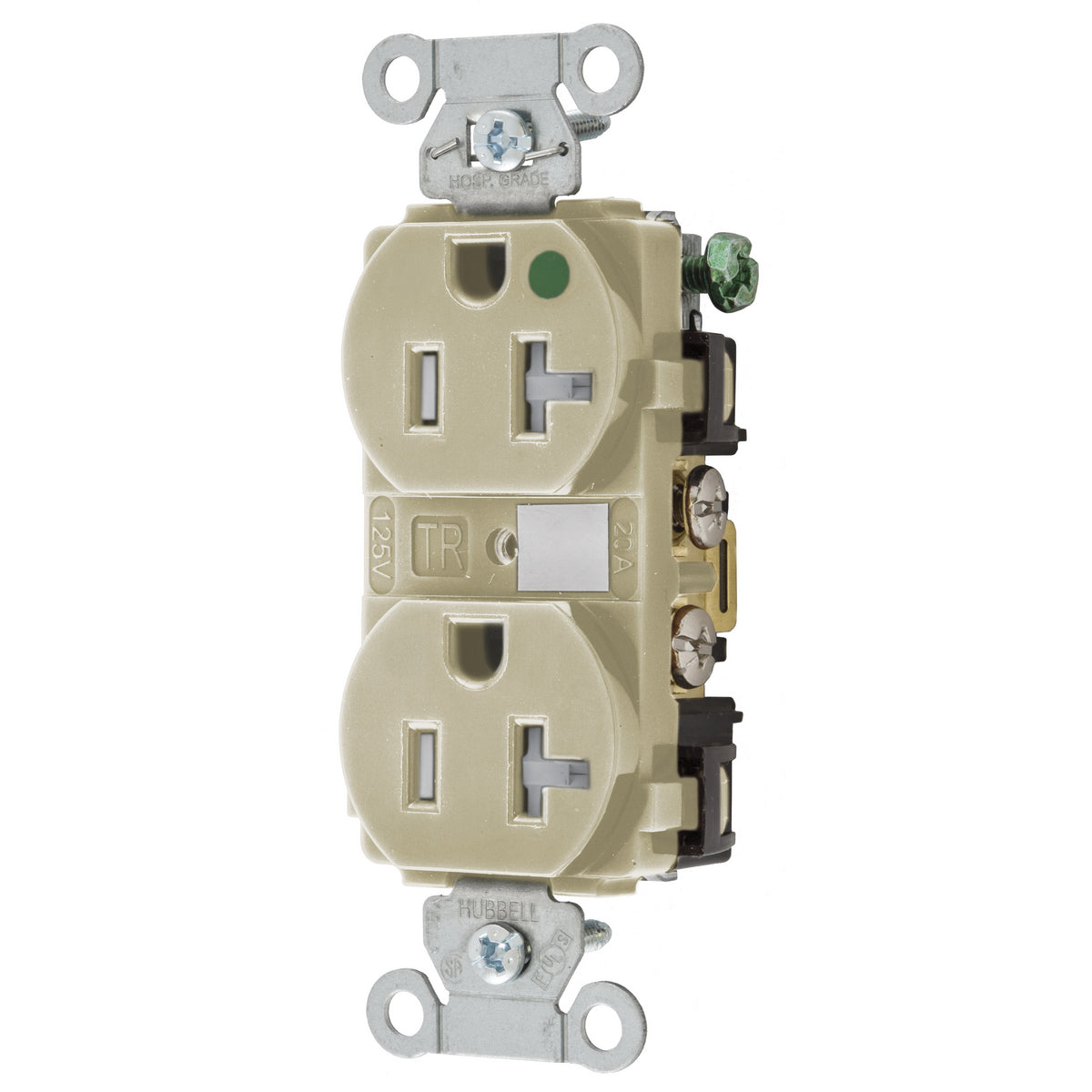

Hubbell 8300IVTRA Wiring Device-Kellems Hubbell-PRO HG 20A/125V TR IV 78358554230

Product Description

The Hubbell Wiring Device-Kellems 8300IVTRA is a straight blade receptacle designed for heavy-duty use. This tamper-resistant model is suitable for various applications, including schools, hotels, and hospitals. It operates at 125 VAC and features a maximum amperage rating of 20 A.

• Includes a circuit ID marking area
• Tested to UL hospital grade standards
• Impact-resistant design for durability

Product Highlights

This receptacle is designed with a tamper-resistant mechanism that enhances safety and functionality.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: 8300IVTRA

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Horsepower: 1 hp
• NEMA Rating: 5-20R
• Number of Wires: 3
• Number of Poles: 2
• Material: Nylon
• Temperature Rating: -40 to 75 degrees C
• Grade: Hospital
• Dimensions: 3.28 x 1.57 x 1.15 inches
• Standards/Approvals: UL 498, RoHS Compliant
