Product Description

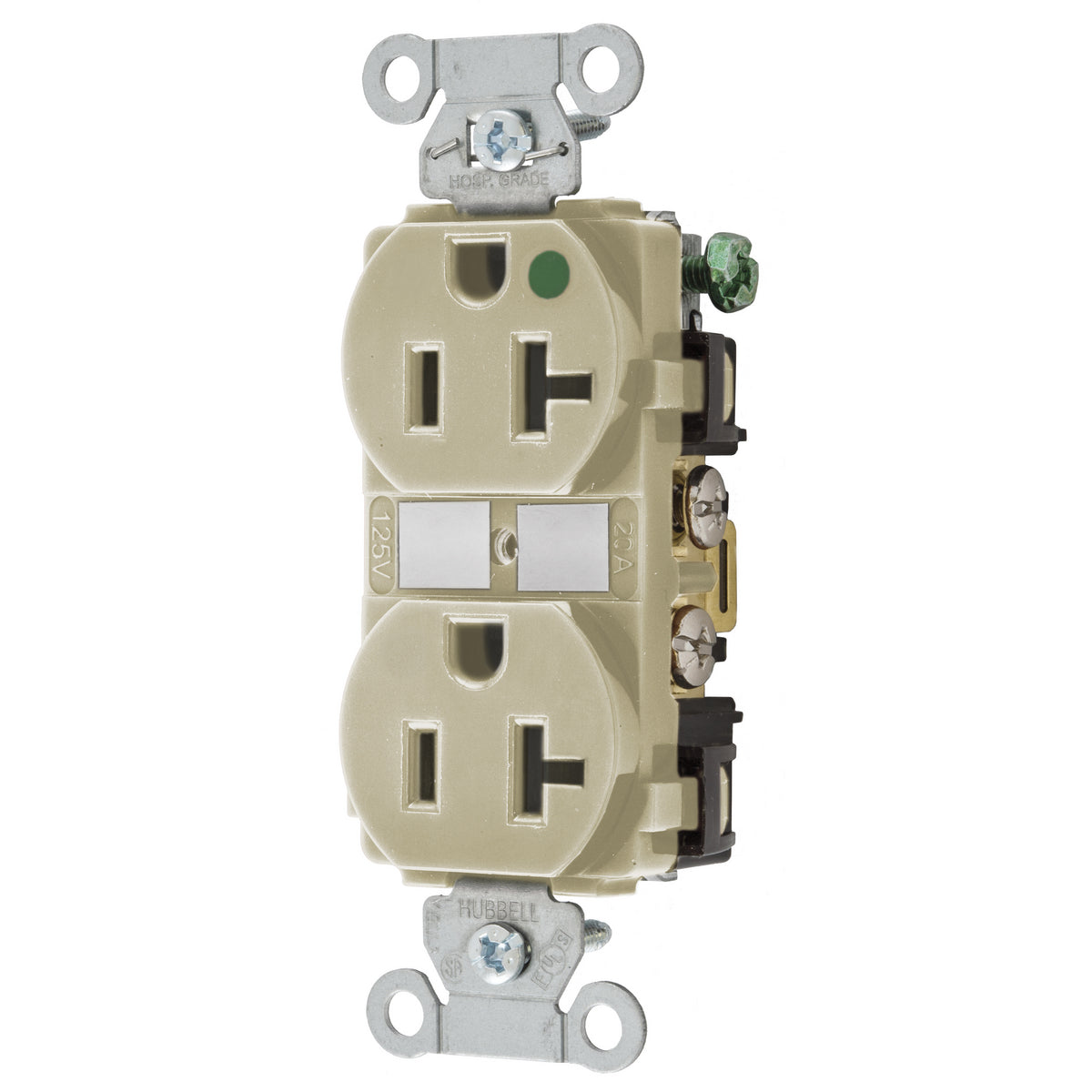

The Hubbell 8300IV is a straight blade receptacle designed for use in dry indoor applications. It is a one-phase duplex self-grounding receptacle that operates at a voltage of one hundred twenty-five volts and an amperage of twenty amps. This product is suitable for residential or commercial use where a reliable electrical connection is necessary.
- Zinc plated steel mounting screw.
- Withstands two thousand VAC minimum dielectric voltage.
- High impact resistant face with circuit identification marking area.
Product Highlights
This receptacle has a hospital grade rating and features an IP20 enclosure for added safety. It can handle a horsepower rating of one and functions well in environments with temperatures ranging from negative forty to seventy-five degrees Celsius.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: 8300IV
Technical Specifications
-
Amperage Rating: 20 A
-
Application: Dry Indoor Applications
-
Color: Ivory
-
Dimensions: 3.28 x 1.57 x 1.15 inches
-
Enclosure: IP20
-
Grade: Hospital
-
Horsepower: 1 hp
-
Material: Nylon
-
NEMA Rating: 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: UL 498, CSA, NEMA
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Screw
-
Type: 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount
-
Voltage Rating: 125 VAC
