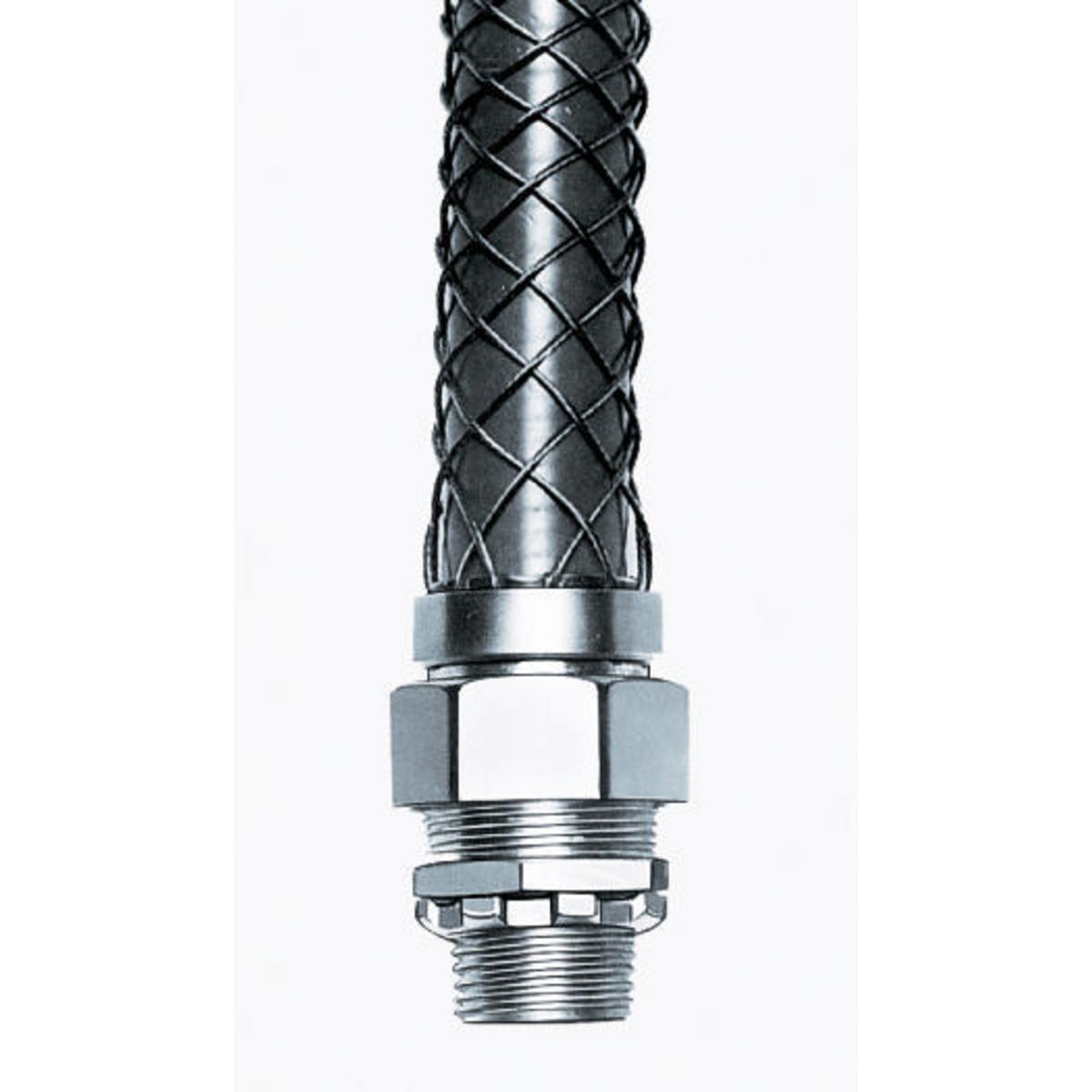

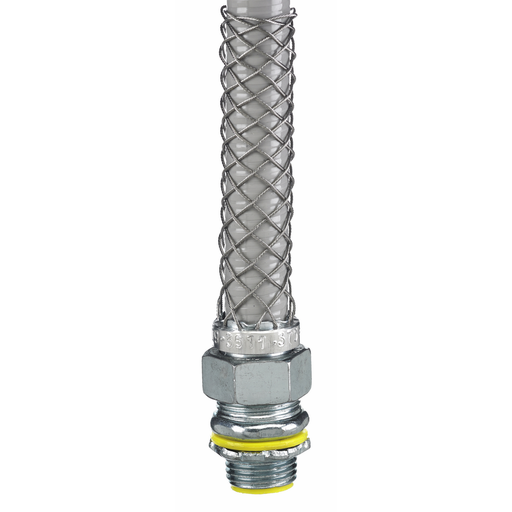

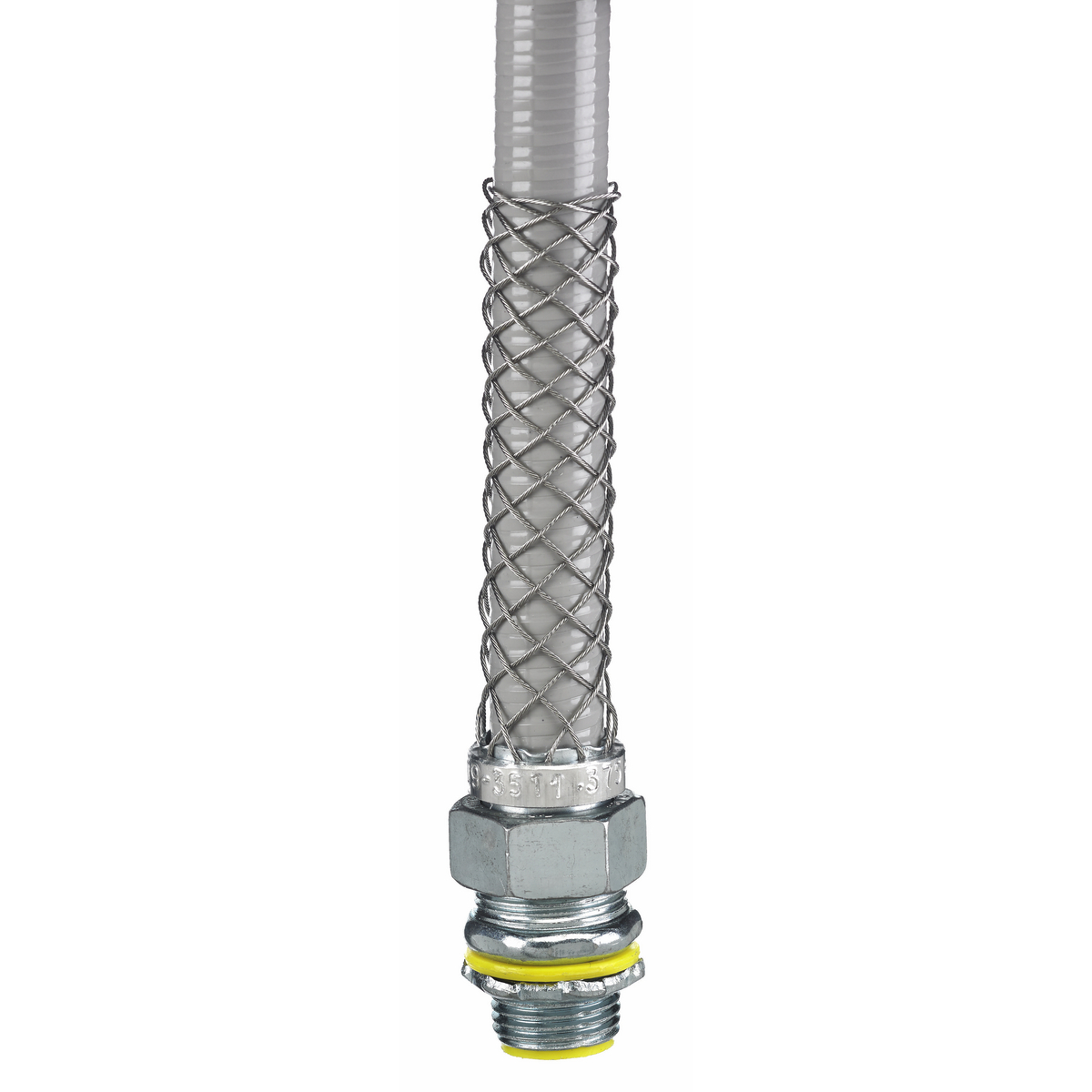

HUBBELL 74093512 Metallic Liquidtight Flexible Conduit Connector with Grip

Product Description

The HUBBELL 74093512 is a metallic liquidtight flexible conduit connector designed for use with one-half inch conduit. This straight male fitting offers an effective solution for hazardous environments. It meets Class I, Division 2, Class II, Division 1 and 2, and Class III, Division 1 and 2 safety standards. The fitting is built to be insulated for safety and is UL Listed and CSA Certified.

• Designed for metallic liquidtight flexible conduit.
• Features a straight connector body style.
• Approved for use in hazardous locations.

Product Highlights

This conduit connector is reliable for industrial applications, ensuring secure connections in tough environments.

Product Information

Standard Information

• Brand: HUBBELL Wiring Device-Kellems
• Manufacturer Part Number: 74093512

Technical Specifications

• Conduit Size: 1/2 inches
• Material: Steel
• Type: Straight With Male Fitting
• Industry Standard(s): UL Listed
• Certifications: UL Listed, CSA Certified
• Operating Temperature: -30 degrees Fahrenheit to +225 degrees Fahrenheit (-34 degrees Celsius to +107 degrees Celsius)
• Width: 1.210 inches
• Enclosure Rating: Suitable for use in hazardous locations per Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2
