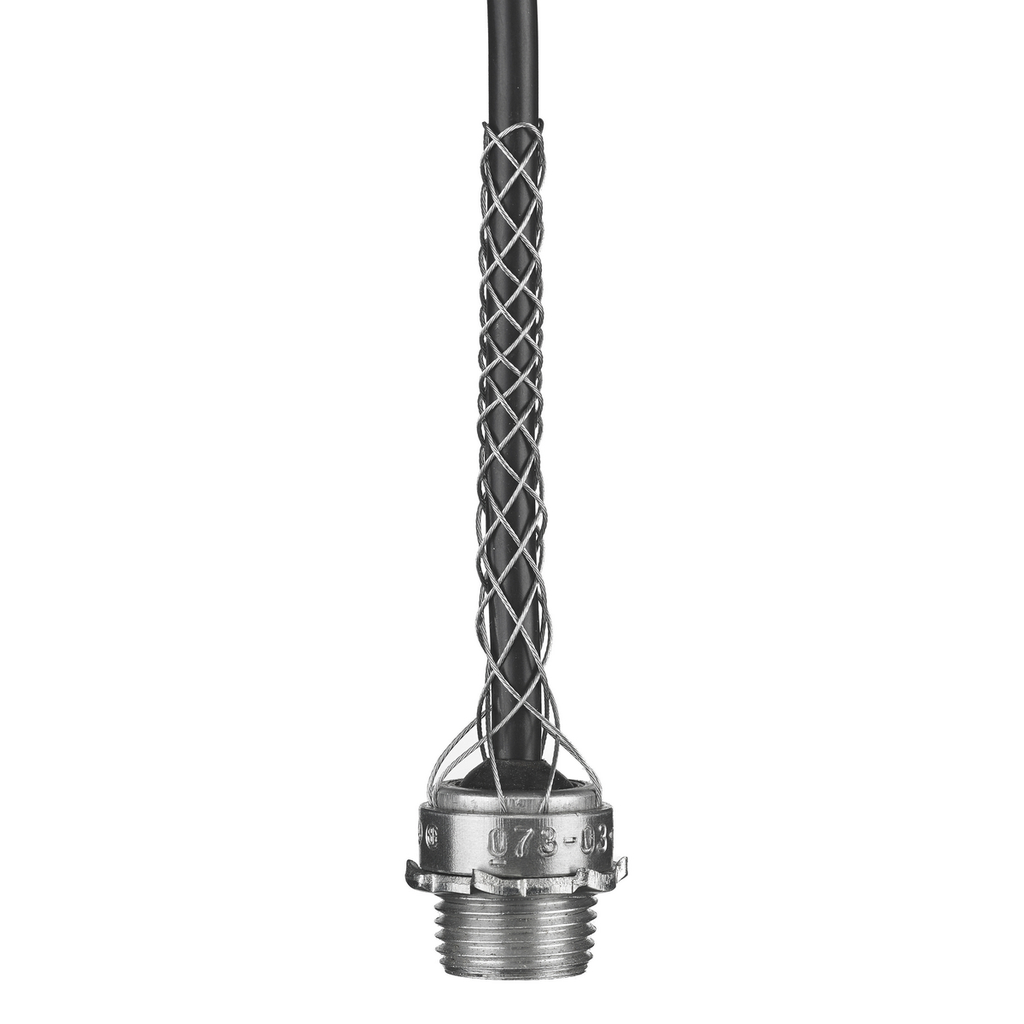

Hubbell 73031201 Strain Relief Grip 1/2 NPT 0.32 To

HUBBELL
Brand: HUBBELL
SKU: 73031201
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$51.31
$51.31
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The HUBBELL 73031201 strain relief grip is designed to prevent tension from being transmitted to joints and terminals on electrical cords, cables, and conduits. These grips provide greater security than using a fitting alone, helping to make electrical systems safer and reduce downtime from cable pull-out. It has a 1/2 in trade size and 0.32 to 0.43 in cable openings.

  • Aluminum Fitting
  • Galvanized steel mesh provides high strength
  • Non-Insulated

Product Highlights

The strain relief grip is stronger than the cable itself and aids in compliance with the National Electric Code's terminal tension protection requirements.

Product Information

Standard Information

  • Brand: HUBBELL
  • Manufacturer Part Number: 73031201
  • Country of Origin: CN

Technical Specifications

  • Catalog Number: 073031201
  • Construction: Woven
  • EU RoHS Indicator: Yes
  • Item Type: Dust-Tight Strain Relief Grips
  • Material: Aluminum Fittings, Galvanized Steel Mesh
  • Material - Mounting Hardware: Locknut or Tapped Hole
  • Performance: Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting)
  • Series: Dust-Tight
  • Specifications: Body - Aluminum Locknut - Steel Sleeve - Aluminum Strand - Galvanized Steel
  • Style: For Insulated Cables
  • Thread Size: 1/2" NPT
  • UPC: 783585497709
  • Trade Size: 1/2 in
  • Cable Diameter Range: 0.32 in-0.43 in
  • Cable Size: .32"-.43" (.81-1.09)
  • Industry Standard(s): UL Listed
  • Standards - RoHS Compliance Status: CM
  • Mesh Length: 3-3/4 in
  • Type: Dust-Tight
  • Application: Wiring System Bus Down Cable Box, Machine Tool and Power Tool Portable
  • Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
  • Cable Openings: 0.32 to 0.43 in
  • Cable Type: Non-Insulated
  • Finish: Electro Galvanized
  • Temperature Rating: -60 to 1000 deg F
  • Brand: Hubbell Wiring Device-Kellems
  • Mounting: Straight
  • Special Features: Galvanized steel mesh provides high strength
  • Sub_Brand: Hubbell Wiring Device-Kellems
  • Conductor Range: .320 - .430
  • Country of Origin: CN
