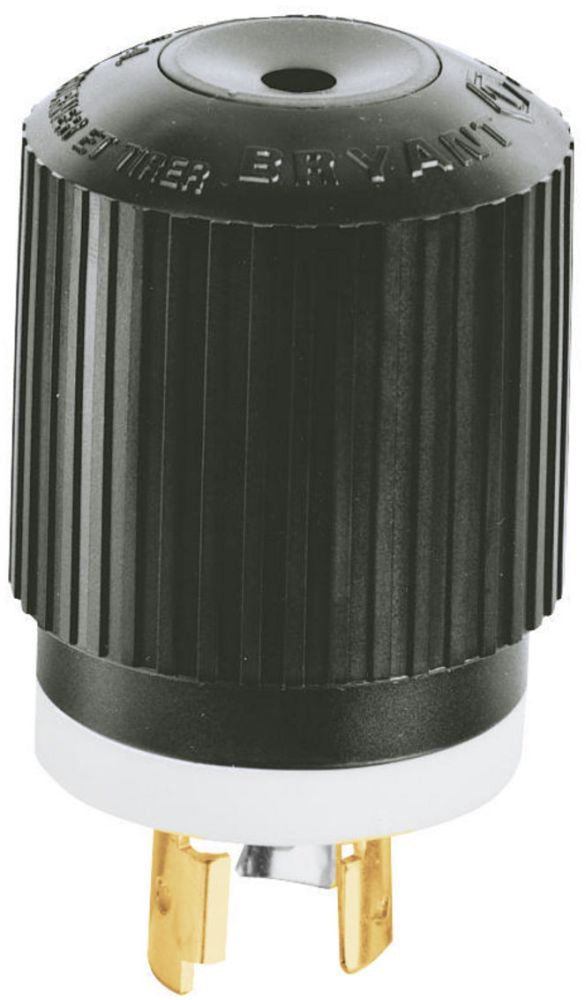

Hubbell 71020NP Locking Plug Non-metallic L10-20P

Product Description

The HUBBELL 71020NP is a non-metallic locking plug configured to the NEMA L10-20P twist-lock standard. It is designed for use in applications requiring a secure, vibration-resistant electrical connection that cannot be accidentally disconnected. The L10-20P configuration supports 20-amp, 125/250-volt service, making it suitable for demanding power distribution tasks in commercial and industrial settings. Licensed electricians and facilities maintenance technicians are the primary installers of this device.

This locking plug is used in commercial buildings, industrial facilities, and job-site power distribution where a reliable, non-permanent wiring connection is needed. The non-metallic housing reduces weight and provides corrosion resistance in environments where moisture or chemical exposure may be present. Typical applications include portable generators, power distribution panels, and cord-and-plug connected equipment operating on split-phase circuits.

Key Features

• NEMA L10-20P twist-lock configuration for secure, pull-resistant engagement
• Non-metallic housing resists corrosion and reduces overall weight
• Rated for 20-amp, 125/250-volt split-phase service
• Suitable for commercial and industrial power distribution applications

Compatibility

Designed as an OEM-style replacement or new-installation locking plug compatible with NEMA L10-20R locking receptacles in 20-amp, 125/250-volt cord-and-plug connected systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before disassembling any existing plug or making wiring terminations. Ensure conductor gauge matches the 20-amp rating of the device before completing the connection. Do not exceed the voltage or amperage ratings marked on the plug body.

Technical Specifications

• NEMA Configuration: L10-20P
• Amperage: 20 amps
• Voltage: 125/250 volts
• Housing Material: Non-metallic
• UPC: 78178669252

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 71020NP
