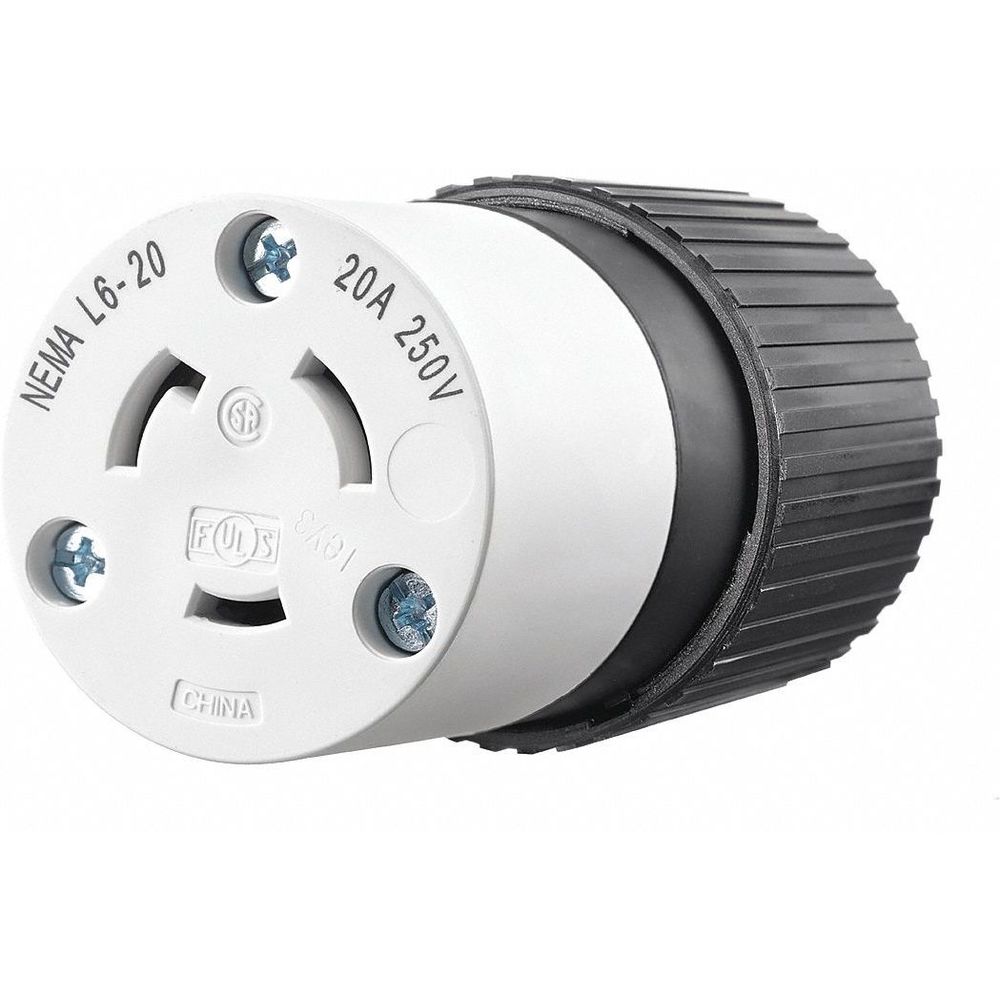

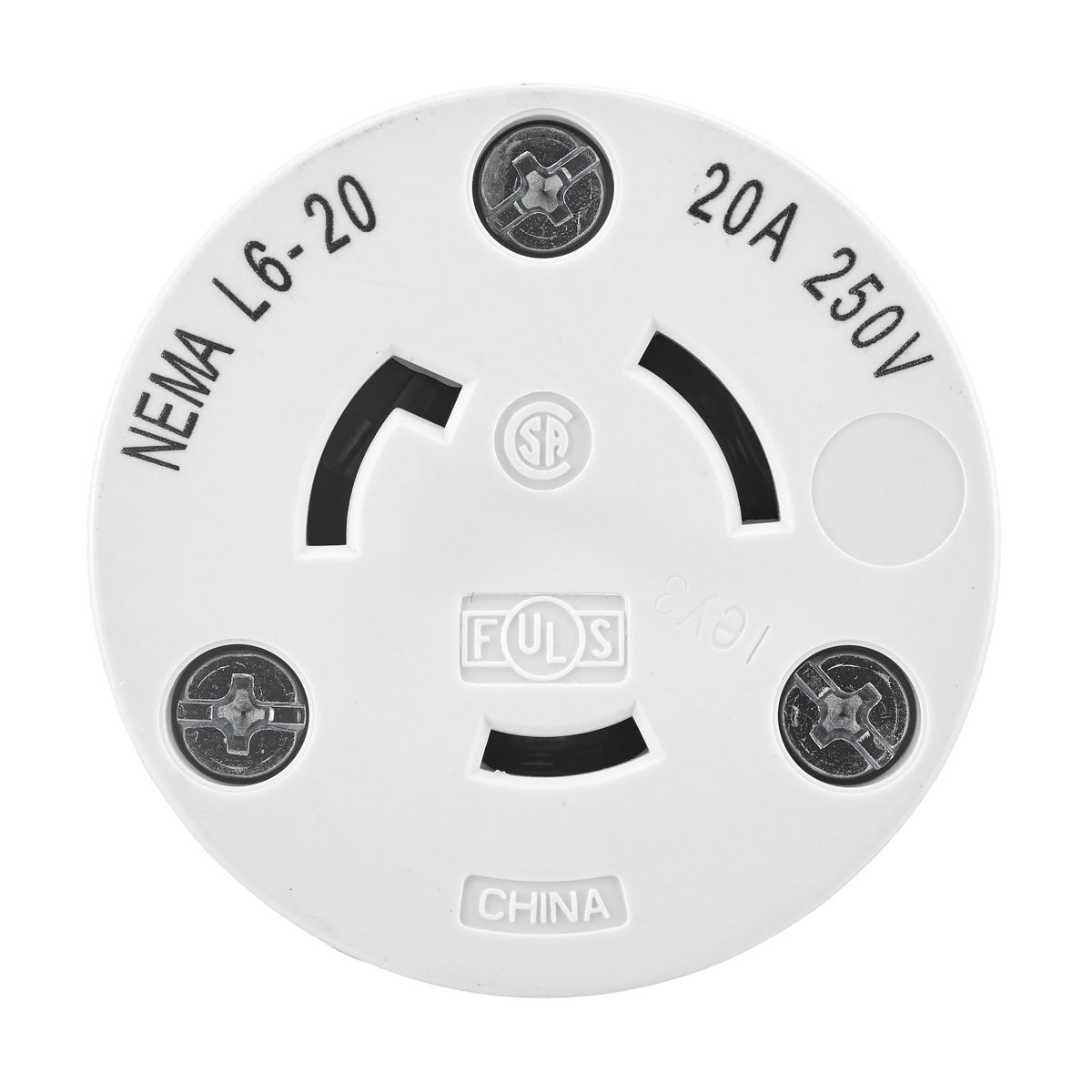

Hubbell 70620NC Locking Connector Body 20A 250V (L6-20R) 70620-NC

Product Description

Hubbell 70620NC is a locking industrial female connector body rated 20 A at 250 V for NEMA L6-20R applications, providing 2-pole, 3-wire grounding with screw terminal connections. Intended for heavy duty indoor industrial use, it has a toughened nylon housing, internal self-centering Triple Gripper cord grip for secure cord retention, and face and body alignment keys for assembly. Accepts cord diameters 0.3 to 0.95 in and wire sizes up to #8 AWG.

• 20 A, 250 V rating; NEMA L6-20R configuration; 2-pole, 3-wire grounding
• Screw terminal connections with internal Triple Gripper cord grip and face/body alignment keys
• Toughened nylon composite housing; cord mount style for indoor dry industrial environments

Product Highlights

Industrial locking connector body, 20 A 250 V, NEMA L6-20R, screw terminals, Triple Gripper cord retention

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 70620NC
• Country of Origin: China

Technical Specifications

• Brand: Hubbell
• MPN: 70620NC
• Model: 70620NC
• Type: Female locking connector body
• Application: Heavy Duty Industrial
• Amperage Rating: 20 A
• Voltage Rating: 250 V
• Poles: 2
• Number of Conductors: 3
• NEMA Rating: L6-20R
• Connectivity: Screw Terminals
• Wire Size: #18 AWG to #8 AWG
• Cord Diameter: 0.3 - 0.95 in
• Mounting Type: Cord Mount
• Housing Material: Toughened nylon (composite)
• Environmental Conditions: Indoor dry unless protected by additional means
• IP Rating: IP20
• Operating Temperature: Maximum continuous: 75 C; Minimum continuous: -40 C without impact, -25 C with impact
• Length: 2.13 in
• Height: 3.9 in
• Width: 2.0 in
• Features: Face and body alignment keys; Triple Gripper cord grip with radius teeth; impact and chemical resistant
• Certifications: UL 498; CSA C22.2; NEMA WD1/WD5/WD6; Federal Specification W-C-596; NOM; CE; RoHS
• UPC: 781786689299
• Country of Origin: China
• Cross Reference: 70620-NC, CD2FGG, 49YW97
