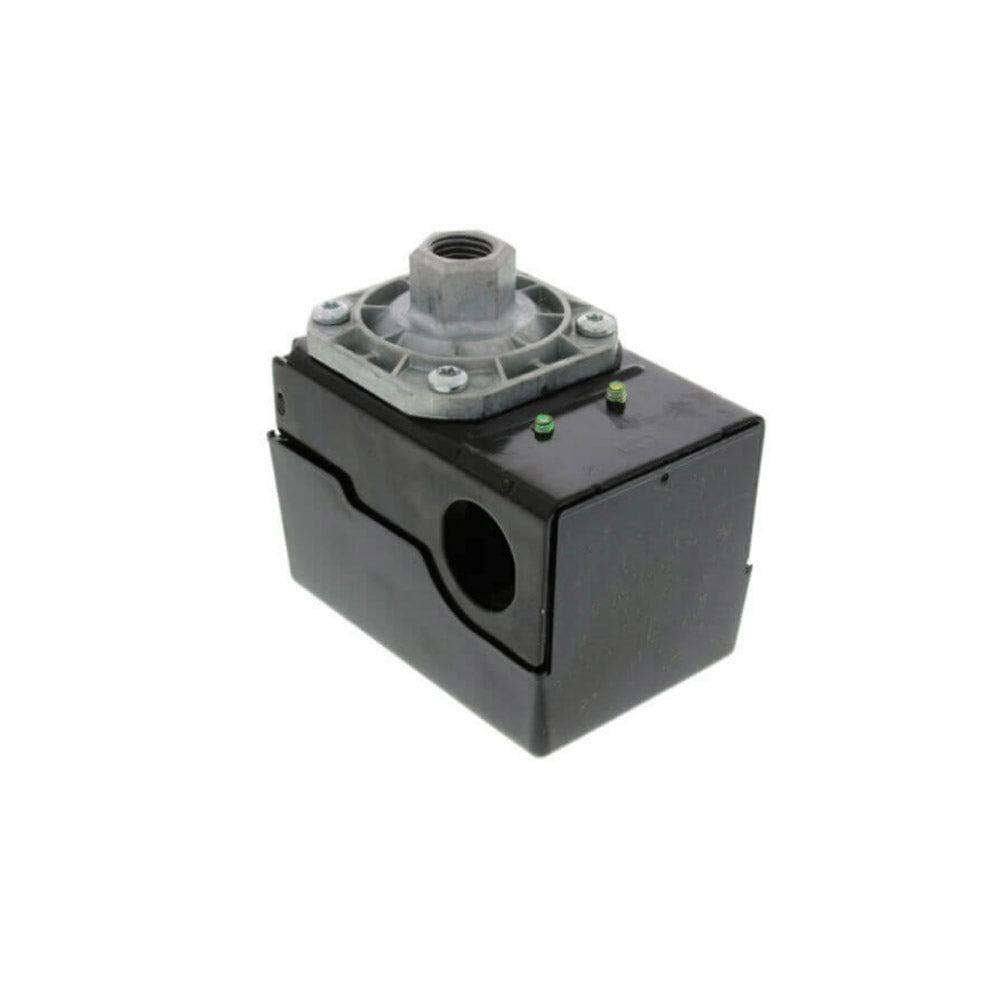

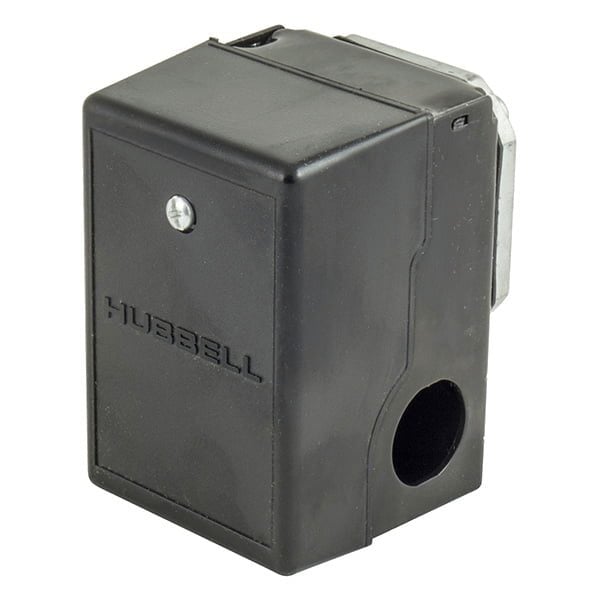

Hubbell 69JG7LY Pressure Switch W/Disconnect

Product Description

The HUBBELL 69JG7LY pressure switch with disconnect is designed for air pressure systems. It features an adjustable pressure setpoint and a 1/4" NPT sample line connection. Suitable for standard-duty applications, this switch has a pressure type differential and is ideal for maintaining pressure within a specified range.

• Adjustable pressure setpoint type
• 1/4" female NPT with pulsation orifice
• Input Voltage 480 to 600V AC

Product Highlights

This pressure switch offers reliable pressure monitoring and control in industrial environments. It is certified by UL, CSA, and CE, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 69JG7LY
• Country of Origin: United States

Technical Specifications

• Cut-In (PSI): 95
• Cut-Out (PSI): 125
• Type: Air, Standard Duty
• Input Voltage: 480 to 600V AC
• Standards: CCC Approved, CE Listed, CSA Certified, UL Listed
• Pressure Type: Differential
• Maximum Differential Pressure Setting: 33 psi
• Sample Line Connector Type: NPT
• Pressure Setpoint Type: Adjustable
• Product Type: Air Pressure Switch
• Minimum Pressure Setting: 95 psi
• Minimum Differential Pressure Setting: 25 psi
• Maximum Pressure Setting: 125 psi
• Overall Height: 3.75 in
• Sample Line Connection Size: 1/4 in
• Overall Depth: 3.5 in
• Overall Width: 2.625 in
