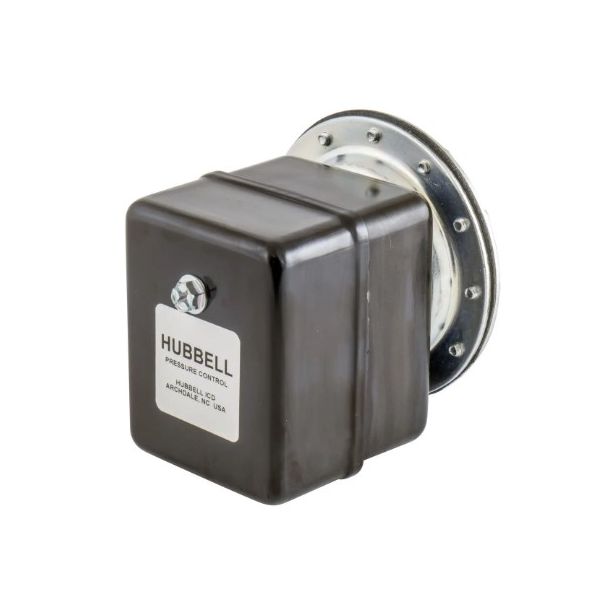

HUBBELL 69HA1X2AZ140175 Heavy Duty Pressure Switch

Product Description

The HUBBELL 69HA1X2AZ140175 is a heavy-duty pressure switch suitable for air compressor applications. This product features straight-through wiring, allowing for easy installation and maintenance. It includes visible contacts and employs a 2-pole double break configuration for enhanced reliability.

• Corrosion-resistant cover for durability.
• 1/4 Male NPT thread size.
• UL Listed and CSA Certified for safety and performance.

Product Highlights

Designed for effective pressure management in air compressor systems, this switch allows for no-drift pressure settings and ease of adjustment. It is engineered for long-lasting use and compliance with industry standards.

Product Information

Standard Information

• Application: Air
• Catalog Number: HC69HA12AZ140175

Technical Specifications

• Cut-in Pressure: 40 psi
• Cut-out Pressure: 250 psi
• Differential Range: 35-60 psi
• Series: 69H
• Thread Size: 1/4 Male NPT
• Industry Standard(s): UL Listed
• NEMA Rating: 1
