Hubbell 5362STGY EdgeConnect Series 20A

Product Description

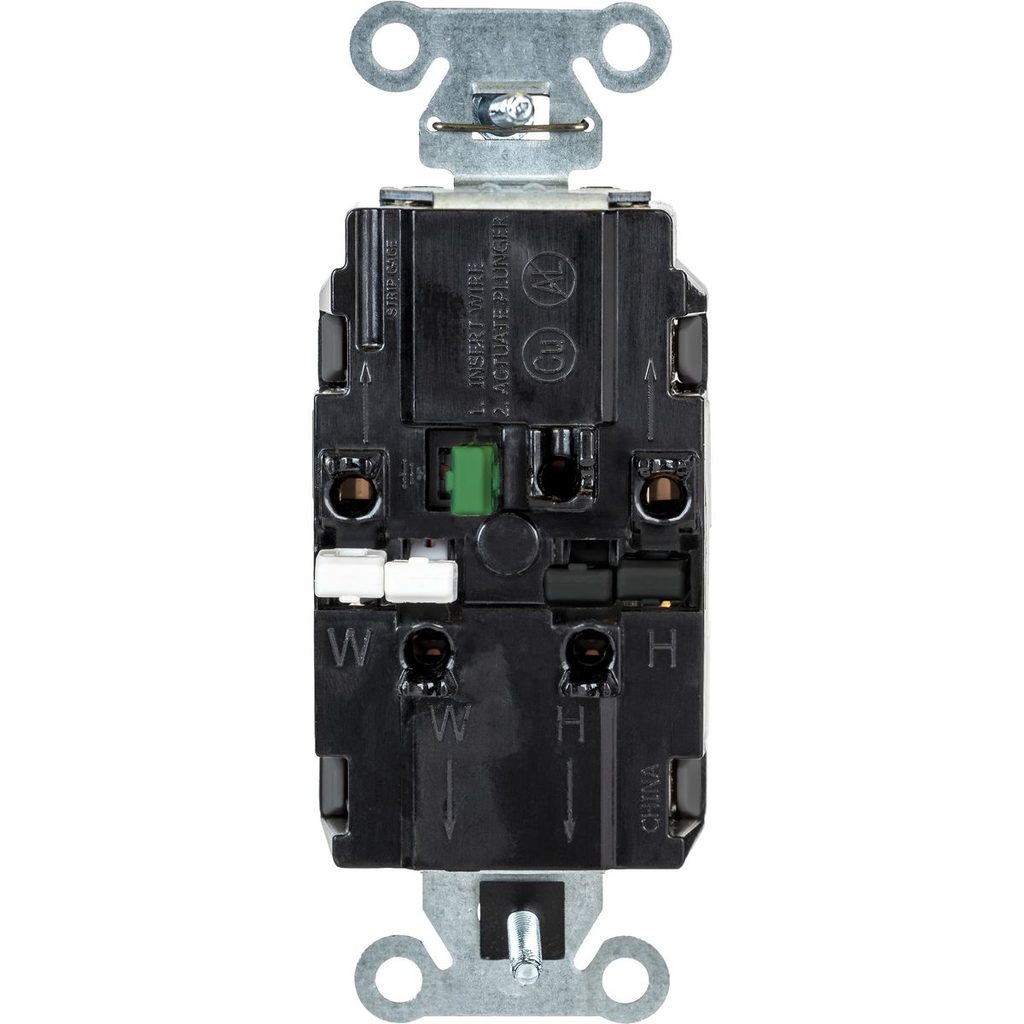

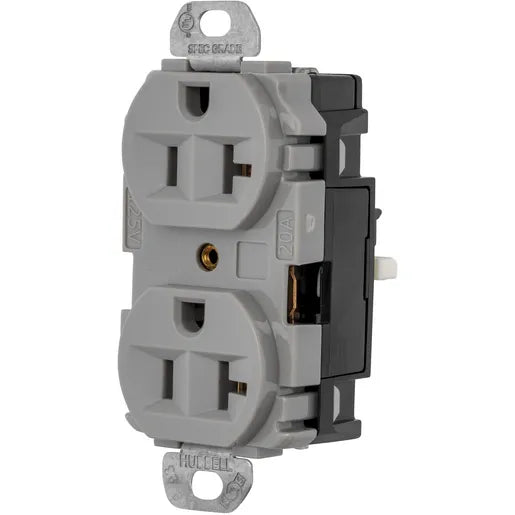

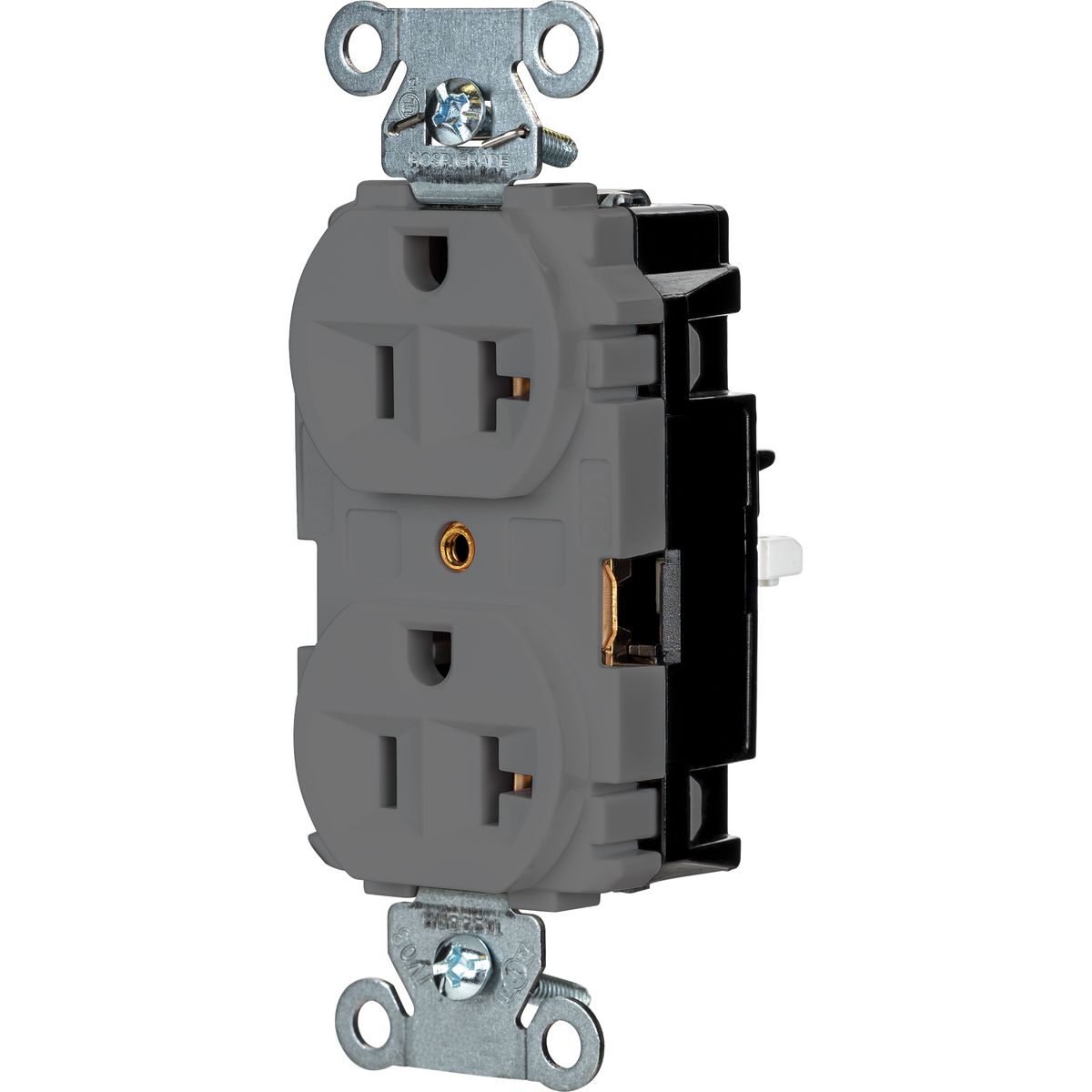

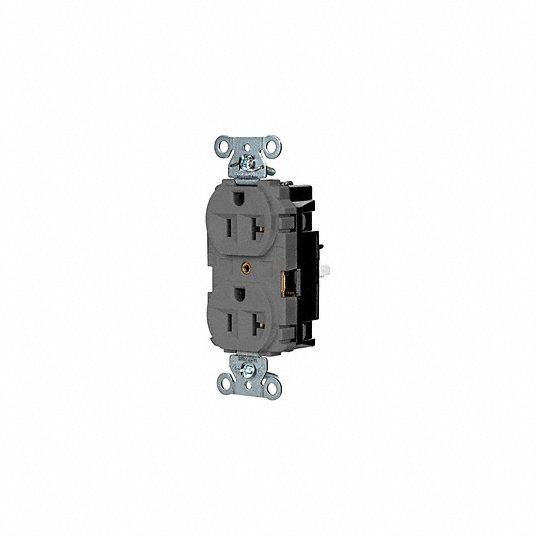

The HUBBELL 5362STGY EdgeConnect Series is a straight blade duplex receptacle rated at 20A. The shorter strap without ears allows for easier mounting. EdgeConnect patented spring clamp terminals provide quick access to wire the back of the device. It features back wired screwless termination for faster termination time.

• Back wired screwless termination for faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation

Product Highlights

The Hubbell EdgeConnect series receptacle features spring clamp terminals and screwless termination for faster installation.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 5362STGY
• Country of Origin: China

Technical Specifications

• Catalog Number: 5362STGYM1
• Color: Gray
• Flammability: UL 94 V-2
• Item Type: Receptacle
• Material: Thermoplastic/C
• Operating Temperature: Maximum continuous 75 °C (w/o impact)minimum -40 °C
• Series: EdgeConnect Series
• Size: 3.28x1.58x1.38
• Specifications: Product Identification-Ratings are a permanent part of the device Terminal Accommodation-#14 - #10AWG Wire (Solid or Stranded) Copper or UL listed CCA conductors only Terminal Identification-Terminals Identified in Accordance with UL 498 and CSA
• Style: Finder Groove
• Type: Short strap, no ears
• UPC: 783585792576
• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Industry Standard(s): UL Listed to UL498 File No. E2186, c-UL-us No. 42 File 285, Fed. Spec. W-C-596, NEMA WD-6 Compliant
• Nema Rating: 5-20R
• Carton Quantity: 10
• Pallet Quantity: 4000
• Application: Spring clamp terminal strengthens over time providing a more reliable connection.
• Mounting Type: Screw Mount
• Temperature Rating: Maximum continuous 75°C; minimum -40°C (w/o impact)
• Wire Size: #14 AWG to #10 AWG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Phase: Single
• Brand: HUBBELL
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Cover Type: No Cover
• Current Rating: 20 A
• Face Plate Height: 2.8 in
• Face Plate Width: 1.6 in
• Features: Easy Access Split Circuit Tab; No Need for Screwdriver and Torque Wrench; Spring Termination Eliminates Strand Relaxation; Triple and Double Wipe Contacts
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• GFCI: No
• Grade: Federal Specification
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Material: Thermoplastic
• IP Rating: IP20
• Includes Mounting Hardware: Yes
• Market: Industrial
• Maximum Operating Temperature: 167 °F
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.3 in
• Mount Type: Surface
• Mounting Location: Outlet Box
• NEMA Enclosure Rating: 1
• Number of Gangs: 1
• Number of Outlets: 2
• Polarized: Yes
• Receptacle Type: Duplex
• Shrouded: No
• Standards: CSA Certified 22.2 No 42 File 285; Fed. Spec. W-C-596; NEMA: WD-6; UL 498 File No E2186
• Surge Protection: No
• Wiring Method: Back
• Housing Color: Gray
• Width: 1.6 in.
• AWG Range: 14 - 10 AWG
• No. of Wires: 3
• Rated Voltage: 125V
• Color Family: Gray
• Number of Poles: 2
• AFCI: No
• Overall Depth: 1.4 in
• UNSPSC: 39121406
• Country of Origin: CN - China
