Product Description

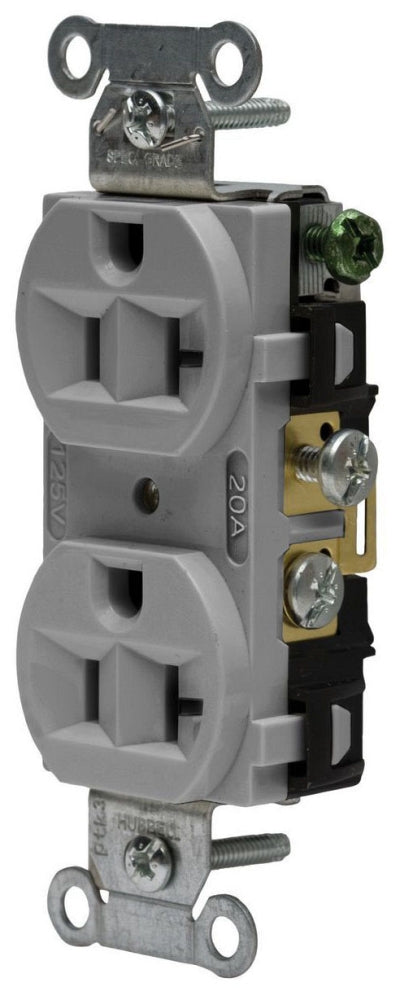

The Hubbell 5362AG is a wiring device from the Wiring Device-Kellems series. This model is a 1-phase duplex heavy-duty self-grounding standard straight blade receptacle. It supports a voltage rating of 125 volts and an amperage rating of 20 amps, making it suitable for various commercial and industrial applications.
- Self-grounding design for improved safety
- NEMA 5-20R rating for versatile compatibility
- Temperature rating from negative forty to seventy-five degrees Celsius
Product Highlights
This receptacle is designed for both commercial and industrial environments and features a back/side wire terminal for easy installation. The composite and thermoplastic materials ensure durability and resistance to extreme temperatures.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Product Name: 10RCPT DUP SB
Technical Specifications
-
Amperage Rating: 20 A
-
Color: Gray
-
Dimensions: 1.569 inches W x 1.067 inches D
-
Grade: Commercial/Industrial/Specification
-
Manufacturer Part Number: 5362AG
-
Material: Composite/Thermoplastic
-
NEMA Rating: NEMA 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: CSA C22.2 File No. 42/285, CSA Certified, Federal Specification W-C-596, NEMA WD-6 Compliant, UL 94 V-2 Flammability Rating, UL File No. E2186, UL Listed
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Back/Side Wire
-
Type: 1-Phase Duplex Heavy Duty Self-Grounding Standard
-
Voltage Rating: 125 V
