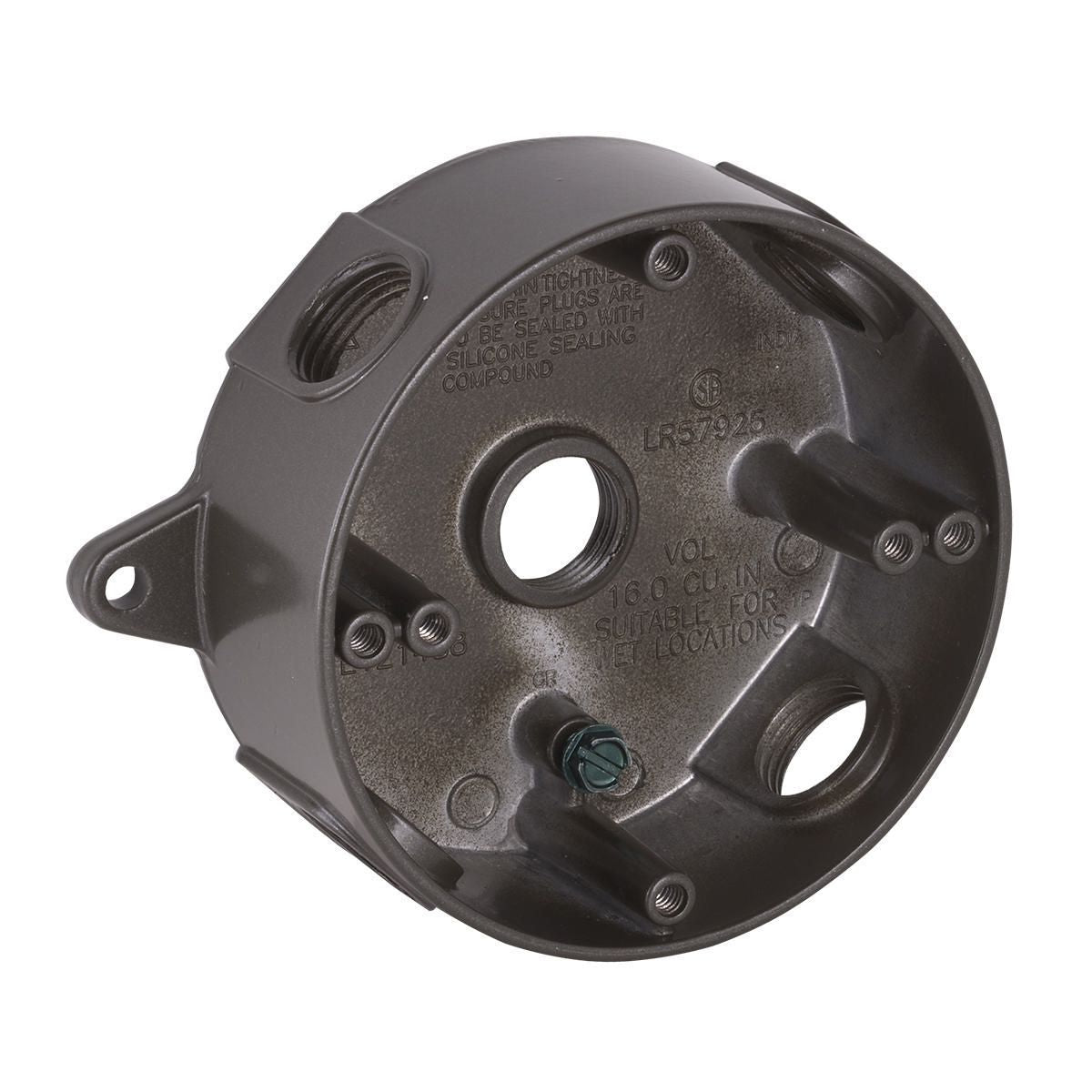

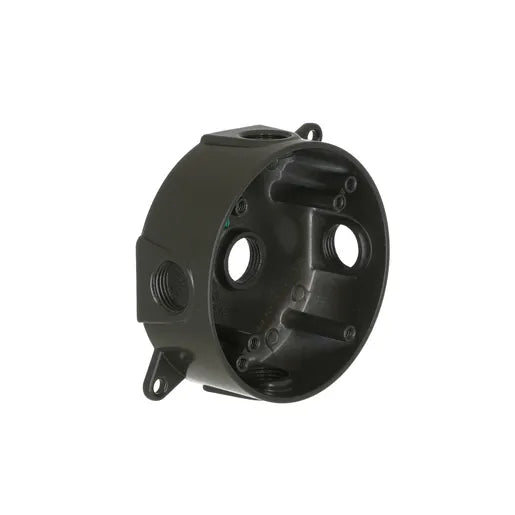

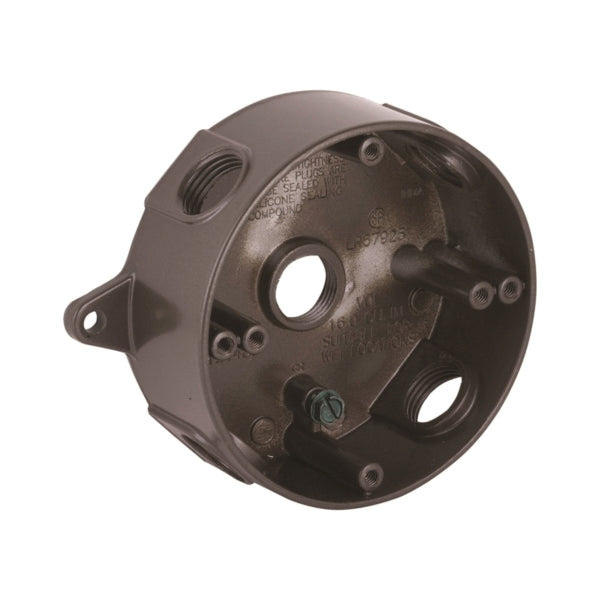

Hubbell 5361-2 Weatherproof Splice Box 16 cu-in 5 Outlets

Product Description

The HUBBELL 5361-2 weatherproof splice box is constructed from die-cast aluminum with a powder-coated finish. Designed for use in wet, damp, and dry locations, this splice box features 5 outlets and a NEMA 3R enclosure. It is suitable for branch circuit wiring and can be used with Bell round cluster covers and lamp holder combinations.

• Rugged die-cast construction
• Internal hub threads comply with NEMA requirements
• Cast-in mounting lugs provide fast, secure installation

Product Highlights

This weatherproof splice box offers a durable and reliable solution for electrical connections in various environments.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 5361-2
• Country of Origin: United States

Technical Specifications

• Application: Used in branch circuit wiring in wet, damp, dry locations and in electrical applications
• Color: Bronze
• Enclosure: NEMA 3R
• Finish: Powder Coated
• Hub Size: 1/2 in
• Hub Style: Threaded
• Includes: (4) Closure Plug, Mounting Hardware, Cast in Mounting Lugs, (5) Threaded Outlets, Ground Screw and Multi-Lingual Instructions
• Manufacturer Part Number: 5361-2
• Material: Die Cast Aluminum
• Mounting Type: Lug
• Number of Outlets: 5
• Shape: Round
• Standards/Approvals: UL File No. E195978|CSA C22.2 No. 18|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|UL Listed|CSA Certified
• Type: Round, Splice Box
• Cubic Inches: 16 in
• Installation Type: Screw-In
• Capacity: 16 cu-in
• Actual Depth: 1.625 in
• Cubic Capacity: 16 cu.in
• Depth: 1.625 in
• Width: 4.16 in
• Certified Listed: UL Listed CSA Certified
• Nema Rating: NEMA 3R
• Hub Type: Threaded
