Product Description

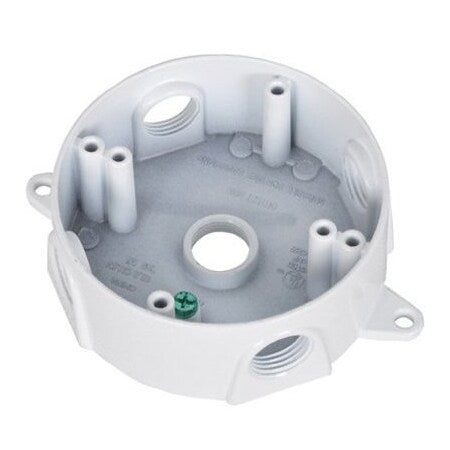

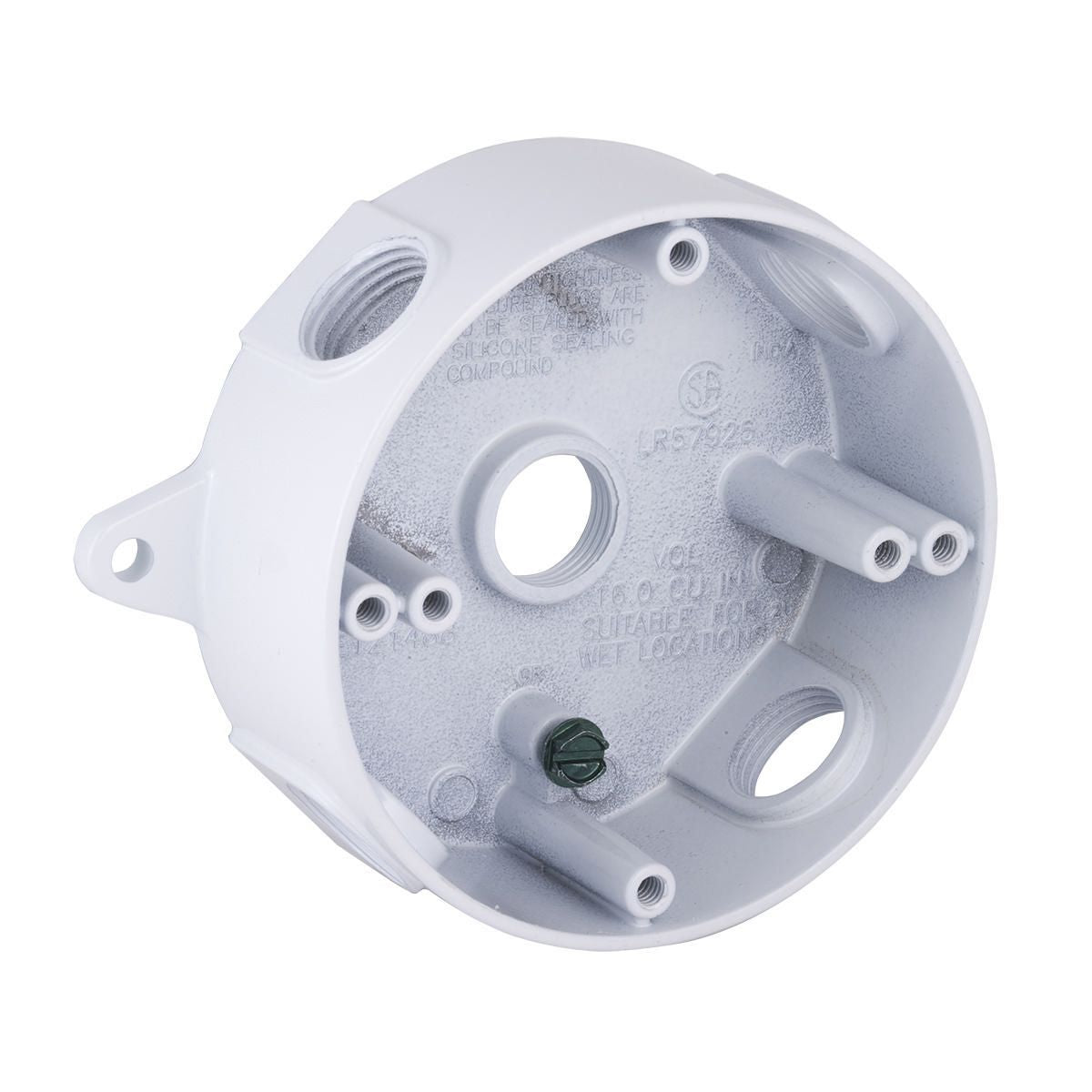

The HUBBELL 5361-1 weatherproof splice box is constructed from die cast aluminum with a 16 cu-in capacity and 5 outlets. Designed for use in branch circuit wiring in wet, damp, or dry locations and in electrical applications. It can be used as a weatherproof junction box.
- Weatherproof
- Die Cast Aluminum construction
- 16 cu-in capacity
- 5 Outlets
Product Highlights
The splice box features rugged die-cast construction and a powder coat finish for maximum weatherability and scratch resistance. Cast-in mounting lugs provide fast, secure installation.
Product Information
Standard Information
-
Brand: HUBBELL
-
Manufacturer Part Number: 5361-1
-
Country of Origin: India
Technical Specifications
-
Material: Die Cast Aluminum
-
Capacity: 16 cu-in
-
Outlets: 5
-
Application: Used in branch circuit wiring in wet, damp, dry locations and in electrical applications
-
Color: White
-
Enclosure: NEMA 3R
-
Finish: Powder Coated
-
Hub Size: 1/2 in
-

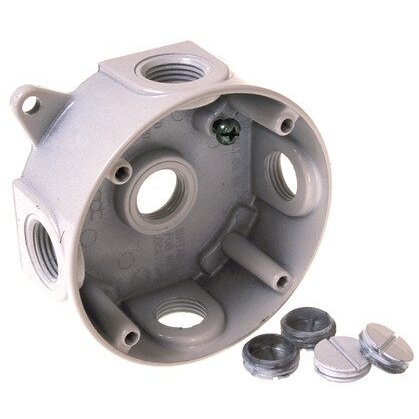

Includes: (4) Closure Plug, Mounting Hardware, Cast in Mounting Lugs, (5) Threaded Outlets, Ground Screw and Multi-Lingual Instructions
-
Manufacturer Part Number: 5361-1
-
Mounting Type: Lug
-
Number of Outlets: 5
-
Shape: Round
-
Standards/Approvals: UL File No. E195978|CSA C22.2 No. 18
-
Brand: BELL
-
Style: Compact
-
Installation Type: Screw-In
-
Box Capacity: 16 cu. in.
-
No. of Inlets: 5
-
Color Family: White
-
Width: 4.203 in.
-
Box Shape: Circular
-
Features: Waterproof
-
Item Height: 4 in
-
Item Length: 4 in
-
Item Width: 2 in
-
Model: 5361-1
-
Type: Outlet Box
-
Mounting: Vertical, Horizontal
-
Depth: 1 1/2 in
-
Cubic Inches: 16.100 in
-
Threaded Outlet Diameter: 1/2 in
-
Number of Threaded Outlets: 5
