Hubbell 5361-0 Raco Round Weatherproof Splice Box 1/2 inches Outlets

Product Description

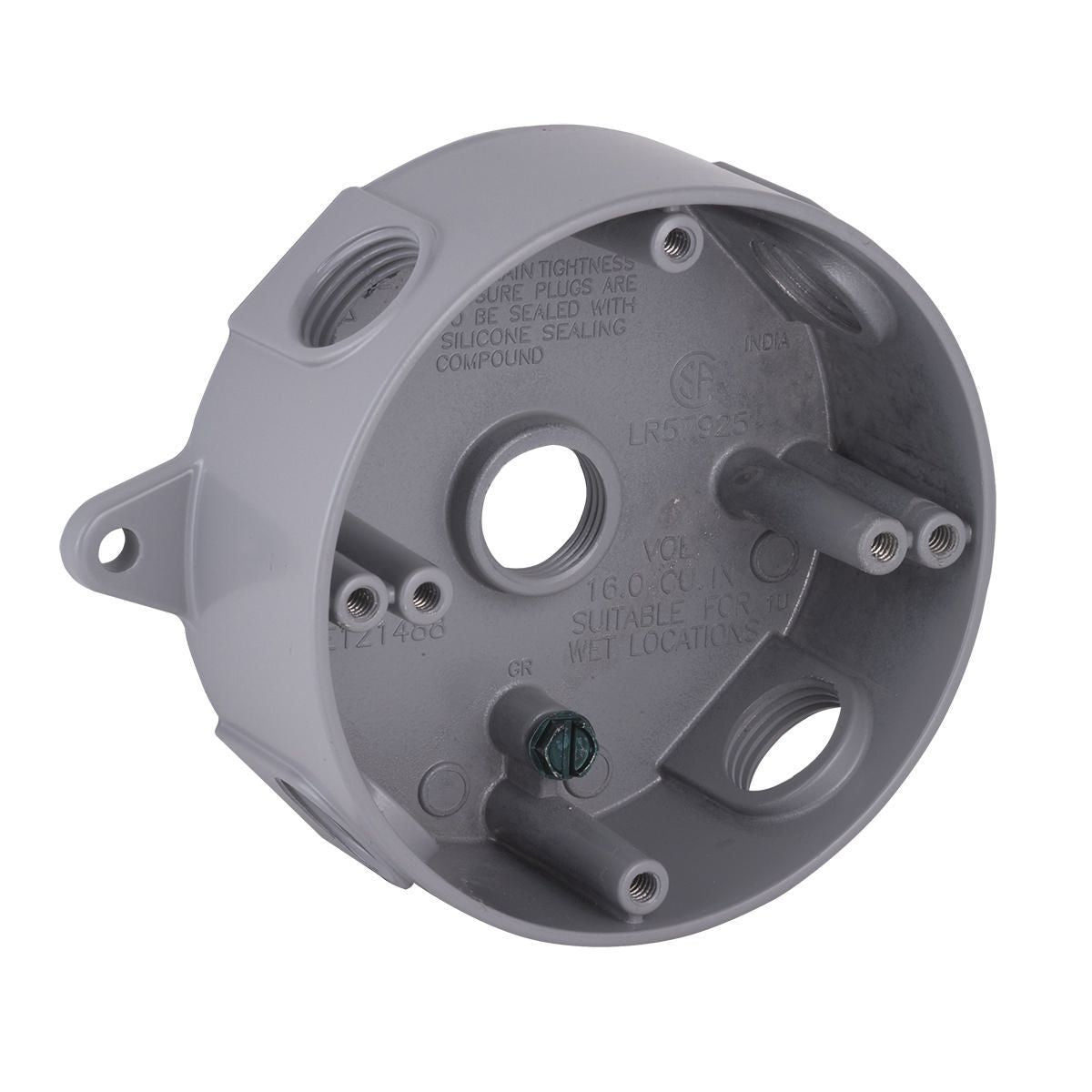

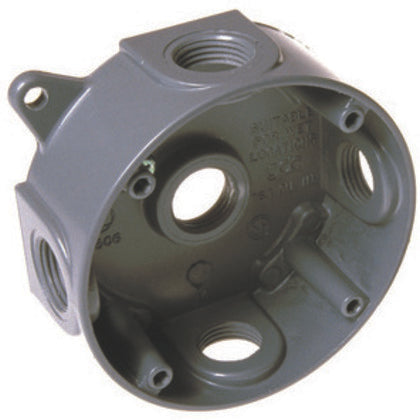

The HUBBELL 5361-0 Raco round weatherproof box features five 1/2" threaded outlets and a gray finish. Constructed from rugged die-cast aluminum with a state-of-the-art powder coat finish, this splice box is designed for use in wet, damp, or dry locations. It provides a secure enclosure for electrical connections in branch circuit wiring.

• For use in branch circuit wiring in wet, damp, or dry locations
• Rugged die cast construction
• Reinforced connector outlets

Product Highlights

Ideal for outdoor installations, this weatherproof splice box ensures long-lasting performance and protection for electrical connections.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 5361-0
• Country of Origin: India

Technical Specifications

• Application: Used in branch circuit wiring in wet, damp, dry locations and in electrical applications
• Construction: Rugged die cast
• Mounting: Cast-in mounting lugs
• Special Features: Reinforced connector outlets, State-of-the-art powder coat finish
• Additional Features: Includes four closure plugs, installed ground screw, and multi-lingual instructions. Six 10-24 Tapped Holes.
• Size: 4-Inch Round
• Color: Gray
• Enclosure: NEMA 3R
• Finish: Powder Coated
• Hub Size: 1/2 in
• Includes: (4) Closure Plug, Mounting Hardware, Cast in Mounting Lugs, (5) Threaded Outlets, Ground Screw and Multi-Lingual Instructions
• Manufacturer Part Number: 5361-0
• Material: Die Cast Aluminum
• Mounting Type: Lug
• Number of Outlets: 5
• Shape: Round
• Standards/Approvals: UL File No. E195978|CSA C22.2 No. 18
• Color/Finish Family: Gray
• Package Quantity: 1
• Die-cast aluminum construction: Yes
• Durable powder coat finish: Yes
• Includes four closure plugs and two #10-32 mounting screws, and an installed ground screw: Yes
• 16.0 cu in capacity: Yes
• Five 1/2 in threaded outlets: Yes
• Gray finish: Yes
• NEMA 3R rated: Yes
• cULus Listed: Yes
• Cubic Inches: 16.100 in 3
• Threaded Outlet Diameter: 1/2 in
• Number of Threaded Outlets: 5
• Catalog Number: 5361-0
• EU RoHS Indicator: Yes
• Material Type: Metallic
• Thread Size: 1/2 in
• Actual Depth: 1.625 in
• Cubic Capacity: 16 cu.in
• Certified Listed: UL Listed CSA Certified
• Nema Rating: NEMA 3R
• Carton Quantity: 16
• Packaging Type: Shrinkwrap
• Pallet Quantity: 1728
• Standard Package: 16
• Brand: Hubbell
• MPN: 5361-0
• Suitable For: Exterior, Wall
• Country of Origin: India
• Mounting Orientation: Vertical, Horizontal
