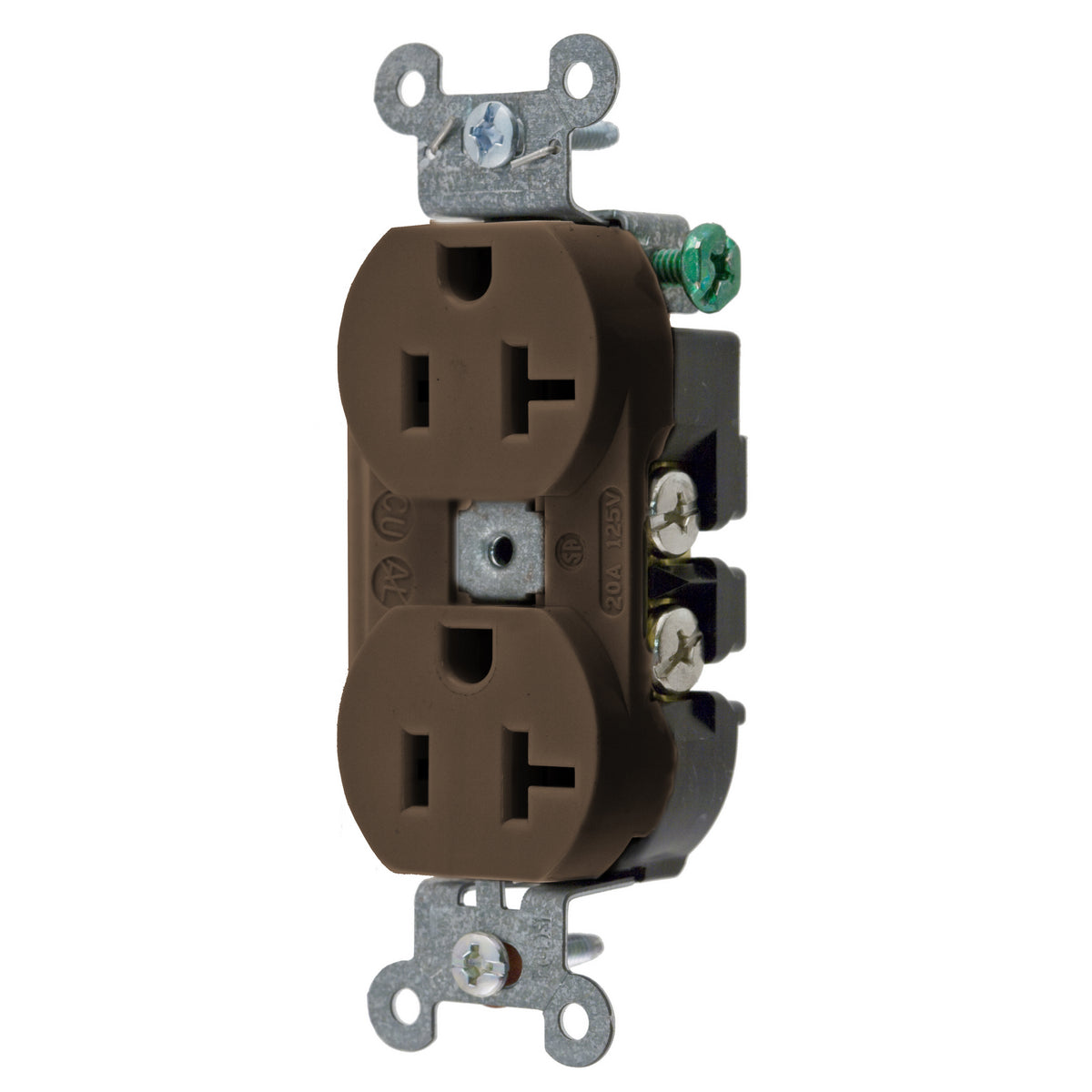

Hubbell 5352AB Wiring Device-Kellems 20A/125V NEMA 5-20R Receptacle

Product Description

The Hubbell 5352AB is a wiring device that features a straight blade receptacle. This product provides reliable electrical connections for various applications.

• Heavy duty construction for durability
• Self-grounding design for safety
• Rated for 20 Amps and 125 Volts

Product Highlights

This receptacle is ideal for use in indoor dry environments with a NEMA 5-20R rating. It is designed for commercial and industrial applications.

Product Information

Standard Information

• Brand: Hubbell
• MPN: 5352AB

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Color: Brown
• Material: Thermoplastic/Composite
• Dimensions: 1.406 inches W x 1.094 inches D x 3.281 inches H
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Side Wired
• Grade: Commercial/Industrial
• Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42/285
• Horsepower: 1 hp
