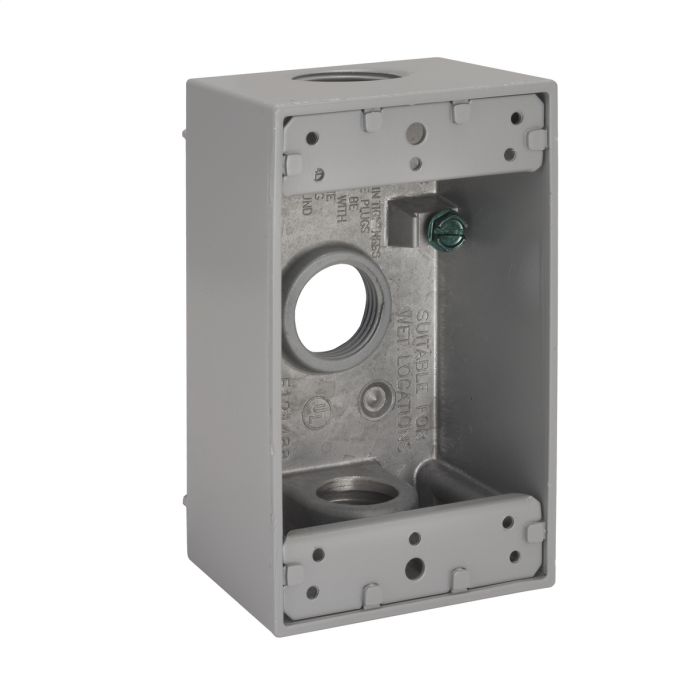

Hubbell 5324-0 Single-Gang Weatherproof Box Three 3/4 in. Threaded Outlets

Product Description

The HUBBELL 5324-0 single-gang weatherproof box features three 3/4 in. threaded outlets. It is designed for use in branch circuit wiring in wet, damp, or dry locations. It can serve as a weatherproof junction box or a housing for receptacles, switches, and GFCIs. Complies with NEMA requirements.

• Features a state-of-the-art powder coat finish for weatherability and scratch resistance.
• Offers eight box mounting options with detachable lugs.
• Internal hub threads comply with NEMA requirements.

Product Highlights

This single-gang weatherproof box is suitable for various applications, including junction boxes and housing for electrical components.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 5324-0

Technical Specifications

• Number of Outlets: 3
• Hub Size: 3/4 in
• Hub Style: Threaded
• Enclosure Type: NEMA 3R
• Mounting Orientation: Vertical
• Finish: Powder Coated
• Number of Gangs: 1
• Capacity: 18.3 cu-in
• Catalog Number: 5324-0
• Material: Aluminum Die Cast
• Material Type: Metallic
• Thread Size: 3/4 in
• Type: 1-Gang
• UPC: 050169532409
• Actual Depth: 2.142 in
• Cubic Capacity: 18.3 cu.in
• Depth: 2.148 in
• Height: 4.565 in
• Width: 2.816 in
• Nema Rating: NEMA 3R
• Certified Listed: UL Listed
• CSA Certified: Yes
• Mounting: Vertical, Horizontal
• Cubic Inches: 17 in
• Number of Threaded Outlets: 3
• Threaded Outlet Diameter: 3/4 in
